MAX5195

14-Bit, 260Msps High-Dynamic Performance DAC

Viewing:

Overview

260Msps Output Update Rate
Excellent SFDR Performance
- To Nyquist (-12dBFS)
- At 19.4MHz Output = 77dBc
- At 51.6MHz Output = 76dBc
Industry-Leading IMD Performance For 4 Tones (-15dBFS)
- At 18MHz Output = 86dBc
- At 31MHz Output = 84dBc
Low Noise Performance SNR = 160dB/Hz at f_OUT = 19.4MHz
On-Chip 1.2V Bandgap Reference
20mA Full-Scale Current
Single 5V Supply
Differential LVPECL-Compatible Digital Inputs

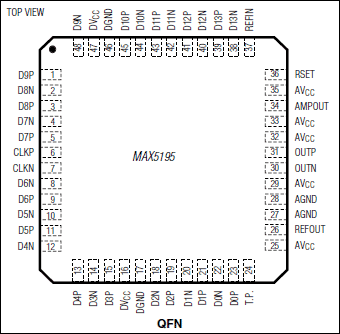

48-Lead QFN-EP Package

The MAX5195 is an advanced, 14-bit, 260Msps digital-to-analog converter (DAC) designed to meet the demanding performance requirements of signal synthesis applications found in wireless base stations and other communication systems. Operating from a single 5V supply, this DAC offers exceptional dynamic performance such as 77dBc spurious-free dynamic range (SFDR) at f_OUT = 19.4MHz, while supporting update rates beyond 260Msps.

The MAX5195 current-source array architecture supports a full-scale current range of 10mA to 20mA, which allows a differential output voltage swing between 0.5V_P-P and 1V_P-P.

The MAX5195 features an integrated 1.2V bandgap reference and control amplifier to ensure high accuracy and low-noise performance. Additionally, a separate reference input pin allows the user to apply an external reference source for optimum flexibility.

The digital and clock inputs of the MAX5195 are designed for differential LVPECL-compatible voltage levels.

The MAX5195 is available in a 48-lead QFN package with exposed paddle and is specified for the extended industrial temperature range (-40°C to +85°C).
