MAX5098A

Obsolete

Dual, 2.2MHz, Buck or Boost Converter with 80V Load-Dump Protection

High Switching Dual Regulator Operates Outside of AM Frequency Band and Provides Up to 80V Load Dump Protection

Viewing:

Overview

  • Wide 4.5V to 5.5V or 5.2V to 19V Input Voltage Range (with Up to 80V Load-Dump Protection)
  • Dual-Output DC-DC Converter with Integrated Power MOSFETs
  • Each Output Configurable in Buck or Boost Mode
  • Adjustable Outputs from 0.8V to 0.85VIN Buck Configuration) and from VIN to 28V (Boost Configuration)
  • IOUT1 and IOUT2 of 2A and 1A (Respectively) in Buck Configuration
  • Switching Frequency Programmable from 200kHz to 2.2MHz
  • Synchronization Input (SYNC)
  • Clock Output (CKO) for Four-Phase Master-Slave Operation
  • Individual Converter Enable Input and Power-Good Output
  • Low-IQ (7µA) Standby Current (ON/OFF)
  • Internal Digital Soft-Start and Soft-Stop
  • Short-Circuit Protection on Outputs and Maximum Duty-Cycle Limit
  • Overvoltage Protection on Outputs with Auto Restart
  • Thermal Shutdown
  • Thermally Enhanced 32-Pin TQFN Package Dissipates up to 2.7W at +70°C

The MAX5098A is a dual-output, high-switching-frequency DC-DC converter with integrated n-channel switches that can be used either in high-side or low-side configuration. Each output can be configured either as a buck converter or a boost converter. In the buck configuration, this device delivers up to 2A from converter 1 and 1A from converter 2. The MAX5098A also integrates a load-dump protection circuitry that is capable of handling load-dump transients up to 80V for industrial applications. The load-dump protection circuit utilizes an internal charge-pump to drive the gate of an external n-channel MOSFET. When an overvoltage or load-dump condition occurs, the series protection MOSFET absorbs the high voltage transient to prevent damage to lower voltage components.

The DC-DC converters operate over a wide operating voltage range from 4.5V to 19V. The MAX5098A operates 180° out-of-phase with an adjustable switching frequency to minimize external components while allowing the ability to make trade-offs between the size, efficiency, and cost.

This device utilizes voltage-mode control for stable operation and external compensation, thus the loop gain is tailored to optimize component selection and transient response. This device can be synchronized to an external clock fed at the SYNC input. Also, a clock output (CKO) allows a master-slave connection of two devices with a four-phase synchronized switching sequence. Additional features include internal digital soft-start, individual enable for each DC-DC regulator (EN1 and EN2), open-drain power-good outputs (PGOOD1 and PGOOD2), and a shutdown input (ON/OFF).

Other features of the MAX5098A include overvoltage protection, short-circuit (hiccup current limit) and thermal protection. The MAX5098A is available in a thermally enhanced, exposed pad, 5mm x 5mm, 32-pin TQFN package and is fully specified over the -40°C to +125°C temperature range.

Applications

  • Industrial

MAX5098A
Dual, 2.2MHz, Buck or Boost Converter with 80V Load-Dump Protection

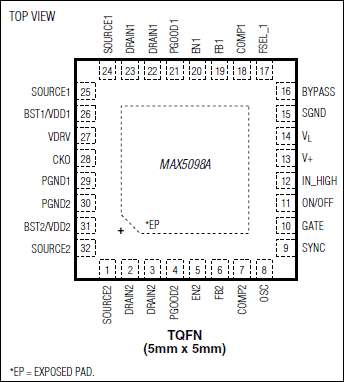

MAX5098A: Pin Configuration
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts Product Life Cycle Description
Switching Regulators & Controllers 3
MAX5099 LAST TIME BUY Dual, 2.2MHz, Automotive Synchronous Buck Converter with 80V Load-Dump Protection
MAX5072 PRODUCTION 2.2MHz, Dual-Output Buck or Boost Converter with POR and Power-Fail Output
MAX5073 PRODUCTION 2.2MHz, Dual-Output Buck or Boost Converter with Internal Power MOSFETs
Modal heading
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Evaluation Kits

MAX5099EVKIT

Evaluation Kit for the MAX5099 and MAX5098A

Features and Benefits

  • Load-Dump Protection Circuit Withstands Input Transients Up to 80V
  • 5.2V to 19V Input Supply Voltage Range
  • Configurable to Work from 4.5V to 5.5V Input Supply Voltage Range
  • 5V at 2A Output (Converter 1)
  • 3.3V at 1A Output (Converter 2)
  • 180° Out-of-Phase Operation Reduces Input Capacitance
  • Configurable Switching Frequency (200kHz to 2.2MHz)
  • Individual Enable Inputs and SYNC Input
  • Power-On Sequencing
  • Low-Cost Solution
  • Evaluates the MAX5099/MAX5098A in a 32-Pin (5mm x 5mm) TQFN Package
  • Lead-Free and RoHS Compliant
  • Fully Assembled and Tested

Product Details

The MAX5099 evaluation kit (EV kit) is an assembled and tested PCB that contains all the components necessary to evaluate the MAX5099 IC. The MAX5099 is a dual-output, synchronous step-down DC-DC converter. The EV kit is powered from a DC supply providing 5.2V to 19V and up to 5A. The EV kit can also be reconfigured for an input range between 4.5V to 5.5V. The EV kit is designed to withstand a load-dump condition up to 80V.

The MAX5099 EV kit can deliver 5V at 2A from the first step-down DC-DC converter output and 3.3V at up to 1A from the second step-down DC-DC converter output. The MAX5099 switching frequency is set to 1.9MHz, and the two outputs switch 180° out-of-phase with respect to each other. A SYNC input facilitates external frequency synchronization of the EV kit. The 5V converter switching frequency is configurable to half that of the 3.3V converter. The EV kit includes a shutdown feature, converter power-up sequencing, and individual converter enables.

Applications

  • Automotive AM/FM Radio Power Supply
  • Automotive Instrument Cluster Display

MAX5099EVKIT
Evaluation Kit for the MAX5099 and MAX5098A
