MAX5072

PRODUCTION

2.2MHz, Dual-Output Buck or Boost Converter with POR and Power-Fail Output

Viewing:

Overview

  • 4.5V to 5.5V or 5.5V to 23V Input Supply Voltage Range
  • 0.8V (Buck) to 28V (Boost) Output Voltage
  • Two Independent Output DC-DC Converters with Internal Power MOSFETs
  • Each Output can be Configured in Buck or Boost Mode
  • IOUT1 and IOUT2 of 2A and 1A (Respectively) in Buck Mode
  • 180° Out-of-Phase Operation
  • Clock Output for Four-Phase Operation
  • Switching Frequency Programmable from 200kHz to 2.2MHz
  • Digital Soft-Start and Independent Converter Shutdown
  • SYNC Input, Power-On Reset, Manual Reset, And Power-Fail Output
  • Short-Circuit Protection (Buck)/Maximum Duty-Cycle Limit (Boost)
  • Thermal Shutdown
  • Thermally Enhanced 32-Pin Thin QFN Package Dissipates up to 2.7W at +70°C

The MAX5072 is a dual-output DC-DC converter with integrated high-side n-channel power MOSFETs. Each output can be configured either as a buck converter or a boost converter. The MAX5072 is designed to manage the power requirements of xDSL modems. The wide 5.5V to 23V input voltage range allows for the use of inexpensive AC adapters to power the device in xDSL modem applications. Each output is programmable down to 0.8V in the buck mode and up to 28V in the boost mode with an output voltage accuracy of ±1%. In the buck mode, converter 1 and converter 2 can deliver 2A and 1A, respectively. The output switching frequency of each converter can be programmed from 200kHz to 2.2MHz to avoid harmonics in the xDSL frequency band of operation. Each output operates 180° out-of-phase, thus reducing input-capacitor ripple current, size, and cost. A SYNC input facilitates external frequency synchronization. Moreover, a CLKOUT output provides out-of-phase clock signal with respect to converter 2, allowing four-phase operation using two MAX5072 ICs in master-slave configuration.

The MAX5072 includes an internal digital soft-start that reduces inrush current, eliminates output-voltage overshoot, and ensures monotonic rise in output voltage during power-up. The device includes a power-good output and power-on reset as well as manual reset. In addition, each converter output can be shut down individually. The MAX5072 features a "dying gasp" output, which goes low when the input voltage drops below a preprogrammed voltage. Protection features include output short-circuit protection for buck mode and maximum duty-cycle limit for boost operation, as well as thermal shutdown.

The MAX5072 is available in a thermally enhanced 32-pin thin QFN package that can dissipate 2.7W at +70°C ambient temperature. The device is rated for operation over the -40°C to +85°C extended, or -40°C to +125°C automotive operating temperature range.

Applications

  • Point-of-Load DC-DC Converters
  • XDSL Modems
  • xDSL Routers

MAX5072
2.2MHz, Dual-Output Buck or Boost Converter with POR and Power-Fail Output

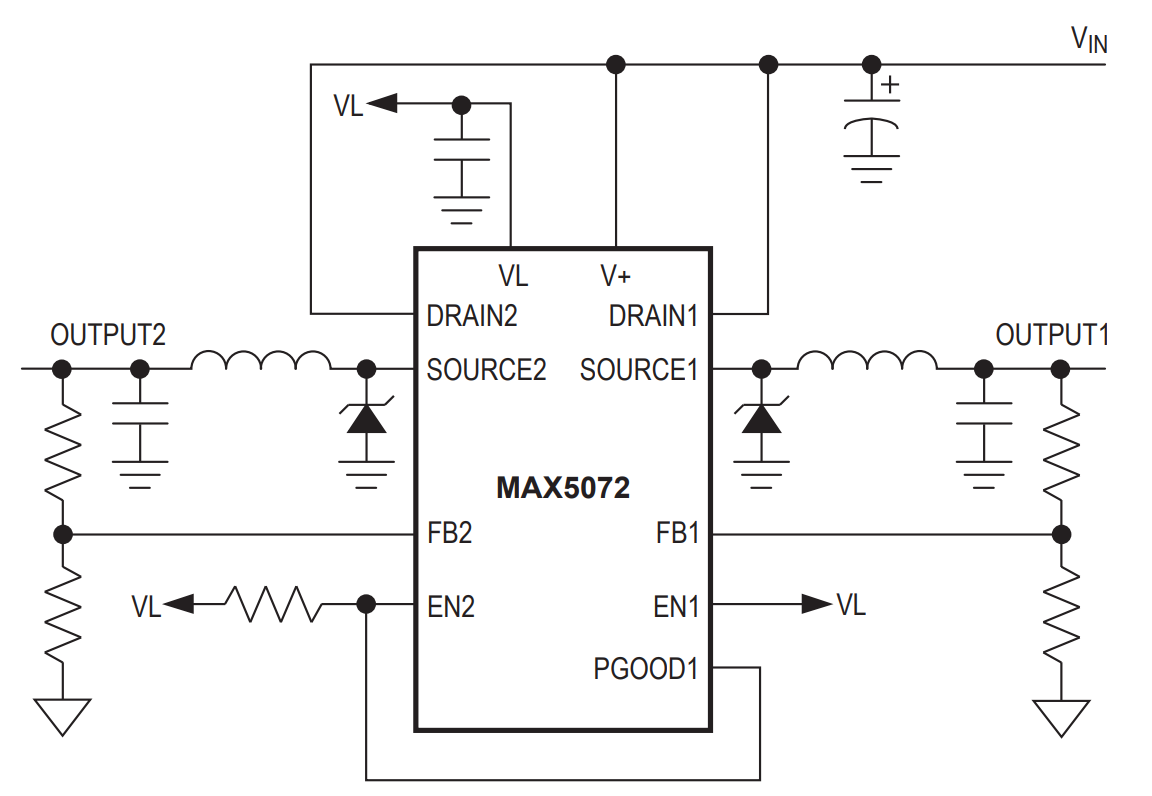

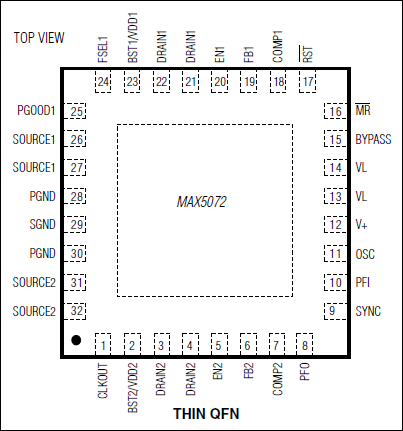

max5072 typical application circuit MAX5072: Pin Configuration
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts Product Life Cycle Description
Switching Regulators & Controllers 1
MAX5073 PRODUCTION 2.2MHz, Dual-Output Buck or Boost Converter with Internal Power MOSFETs
Modal heading
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Evaluation Kits

MAX5072EVKIT

Evaluation Kit for the MAX5072

Features and Benefits

  • 5.5V to 16V Input Supply Voltage Range
  • 4.5V to 5.5V Input Supply Voltage Range (Configurable)
  • 3.3V at 2A Output (Step-Down Converter)
  • 12V at 0.22A Output (Step-Up Converter)
  • 180° Out-of-Phase Operation Reduces Input Capacitance
  • Clock Output for Four-Phase Operation
  • Programmable Switching Frequency (200kHz to 2.2MHz)
  • Individual Enable Inputs, SYNC Input, and Manual Reset Input
  • Power-On Reset Output and Power-Fail Output
  • Low-Cost Solution
  • Fully Assembled and Tested
  • Product Details

    The MAX5072 evaluation kit (EV kit) is a fully assembled and tested circuit board that contains all the components necessary to evaluate the performance of the MAX5072. The MAX5072 is a dual-output DC-DC converter. One of the outputs is configured as a step-down converter (converter 1), while converter 2 is configured as a step-up converter. The EV kit is powered from a DC supply providing 5.5V to 16V. The EV kit can be reconfigured for an input voltage range between 4.5V to 5.5V.

    The MAX5072 EV kit is capable of delivering 3.3V at 2A from the step-down converter output and 12V at up to 0.22A from the step-up converter output. The MAX5072 switching frequency is set to 2.2MHz and the two outputs switch 180° out of phase. A SYNC input facilitates external frequency synchronization. Moreover, a CLKOUT output provides a clock signal that is 90° out of phase with respect to the step-up converter, allowing four-phase operation using two MAX5072 ICs in master-slave configuration.

    The MAX5072 includes a power-good output for converter 1, a reset output, and a manual reset input. Inaddition, each output, can be shut down individually. The MAX5072 features a power-fail output, which provides a logic-low when the input voltage drops below a preprogrammed threshold.

    The MAX5072 is available in a thermally enhanced 32-pin thin QFN package.

    Applications

    • Point-of-Load DC-DC Converters
    • XDSL Modems
    • xDSL Routers

    MAX5072EVKIT
    Evaluation Kit for the MAX5072
