MAX5013

12-Bit, 100Msps TTL DAC

Data Sheet (Rev. 0a)

Viewing:

Overview

12-Bit, 100Msps DAC

TTL-Compatible Inputs

Low Power: 640mW

1/2LSB DNL

40MHz Multiplying Bandwidth

Extended-Industrial Temperature Range

Superior Performance over AD9713:

Improved Settling Time: 13ns

Improved Glitch Energy: 15pV-s

Master/Slave Latches

The MAX5013 is a 12-bit, 100Msps digital-to-analog converter (DAC) designed for digital modulation, direct digital synthesis, high-resolution imaging, and arbitrary-waveform- generation applications. This device is pin-for- pin compatible with the AD9713 with significantly improved settling time and glitch-energy performance.

The MAX5013 is a TTL-compatible device. It features a fast 13ns settling time and low 15pV-s glitch impulse energy, which results in excellent spurious-free dynamic-range characteristics.

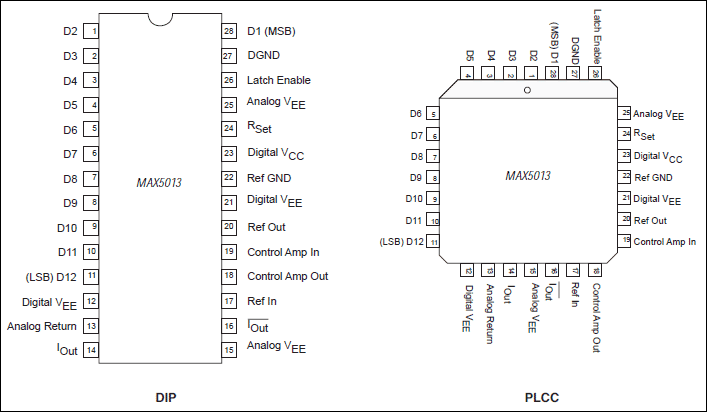

The MAX5013 is available in a 28-pin plastic DIP or PLCC package, in the -40°C to +85°C extended-industrial temperature range.
