MAX49918

RECOMMENDED FOR NEW DESIGNS

MAX49918

Bidirectional, On-The-Fly Programmable Gain, Current-Sense Amplifier with Wide Measurement Range

RECOMMENDED FOR NEW DESIGNS

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $1.50

Features

Programmable Gain Options through I²C from 10V/V to 200V/V (8 steps)
±1μV (typ) Input Offset Voltage for REF1 = REF2 = VDD/2
±5μV (typ) Input Offset Voltage for REF1 = V_DD and REF2 = GND at Gain = 20V/V
±0.01% (typ) Gain Error

-5V to +70V Input Voltage Range
-6V to +80V Protective Immunity
70kHz, -3dB Bandwidth at Gain = 20V/V
145dB DC CMRR
Rail-to-Rail Output

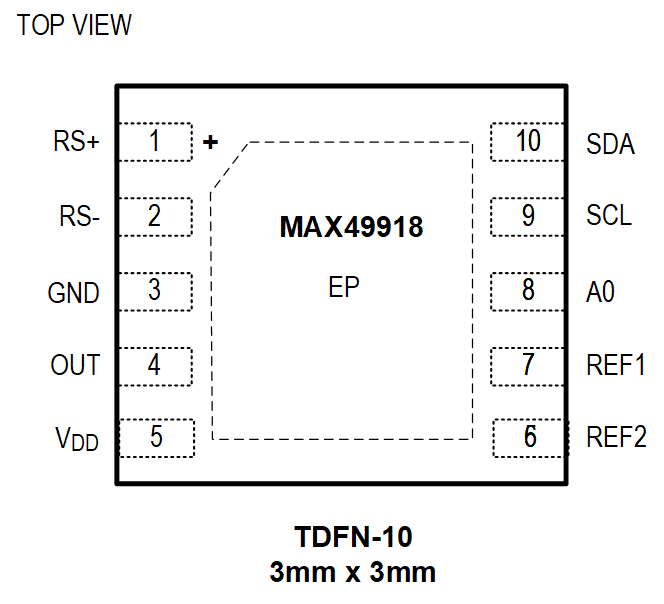

3mm x 3mm, TDFN-10 Package
-40°C to +125°C Temperature Range

Additional Details

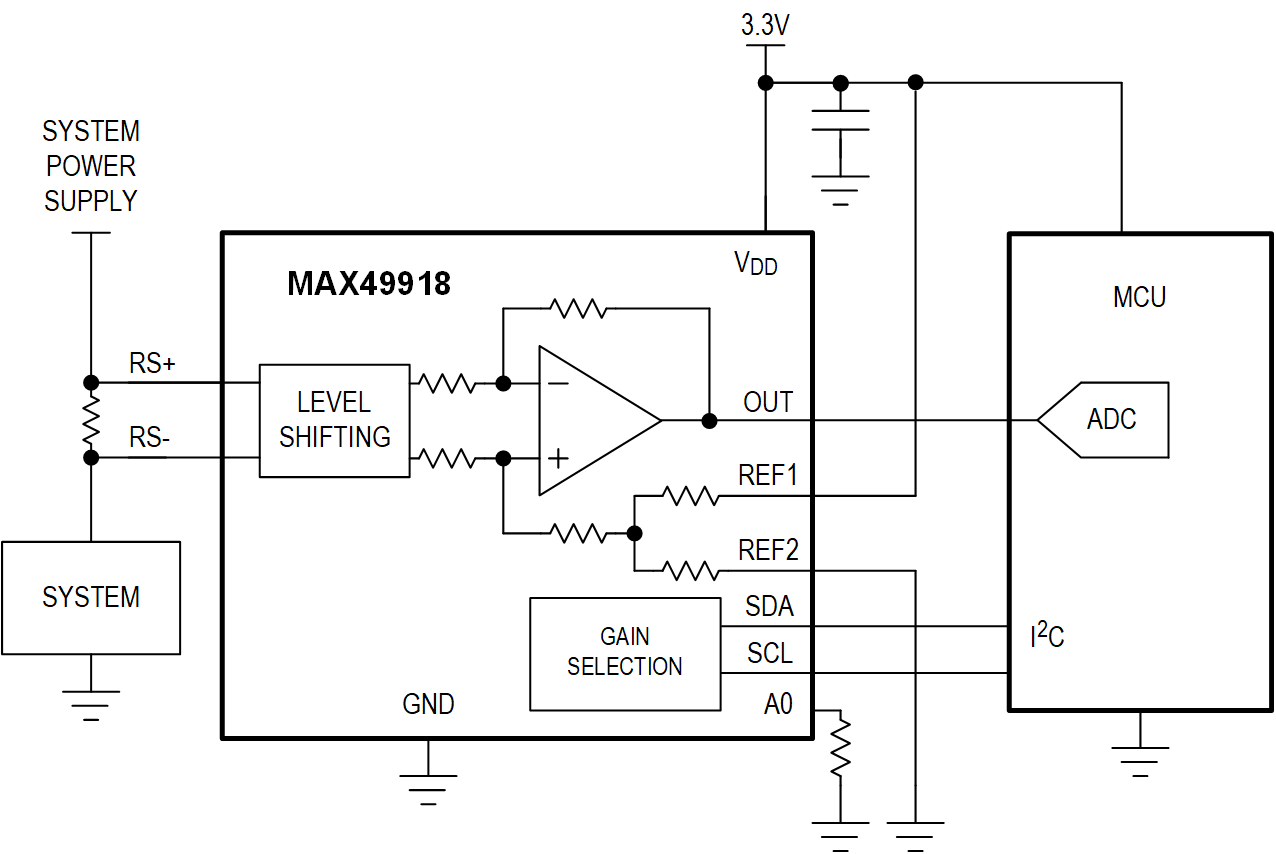

The MAX49918 is a high-precision current-sense amplifier (CSA) with an I²C programmable gain option from 10V/V to 200V/V in 8 steps. The multiple programmable gain options offer maximum flexibility for the user to change gain on-the-fly.

The IC operating input common-mode range from -5V to +70V, with protections that extend down to -6V and up to +80V, thus providing protection against reverse-battery and high-voltage spikes.

The low input offset of ±1μV (typ) and low gain error of ±0.01% (typ) make this device best-suited for high-precision current measurements.

The IC operates from a supply voltage of +2.7V to +5.5V with a typical quiescent supply at 0.7mA. The device operates over the full -40°C to +125°C temperature range. The IC features bidirectional current sensing and is offered in a 3mm x 3mm, 10-pin TDFN package.

APPLICATIONS

Monitoring Distinct Current Levels
Using the Same Current-Sense Resistors Across Multiple System Variants
Requires a Non-Typical Gain Value Due to Sense Resistor Constraints
H-Bridge Motor and Solenoid Current Sensing
Battery Current Monitoring
High- and Low-Side Precision Current Sensing
