Overview
Features and Benefits
- Guaranteed On-Resistance
- 4Ω (max) +5V Supply
- 5.5Ω (max) +3V Supply
- Guaranteed Match Between Channels
- 0.2Ω (max)
- Guaranteed Flatness Over Signal Range
- 1Ω (max) with +5V Supply
- Fast Switching Speeds
- 14ns (max) Turn-On Time
- 6ns (max) Turn-Off Time
- 1.8V Operation
- 100Ω (typ) On-Resistance Over Temperature
- 56ns (typ) Turn-On Time
- 17ns (typ) Turn-Off Time
- +1.8V to +5.5V Single-Supply Operation
- Rail-to-Rail Signal Handling
- Low Crosstalk: -67dB at 1MHz
- High Off-Isolation: -65dB at 1MHz
- THD: 0.1%
Product Details

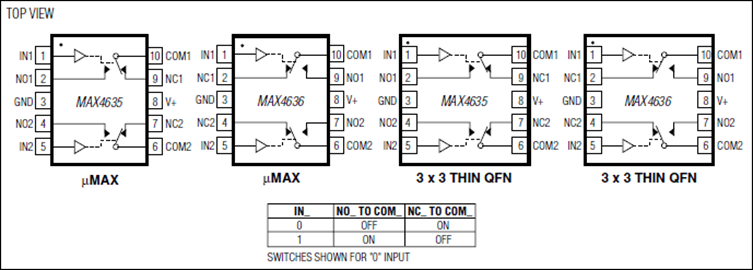

The MAX4635/MAX4636 are fast, dual 4Ω single-pole/double-throw (SPDT) analog switches that operate with supply voltages from +1.8V to +5.5V. High switching speeds, 1Ω on-resistance flatness, and low power consumption make these devices ideal for audio/video, communications, and battery-operated devices. Containing two independently controllable SPDT switches in 10-pin µMAX® and 10-pin 3mm x 3mm thin QFN packages, the MAX4635/MAX4636 use little board space, and have low power consumption ensuring minimal impact on your power budget. The analog signal range extends to the supply rails. The MAX4635 has inverted logic compared to the MAX4636.
Applications
- Audio/Video Signal Routing
- Battery-Powered Equipment
- Communications Circuits
- Low-Voltage Data-Acquisition Systems
- Relay Replacement
- Sample-and-Hold Circuits
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
