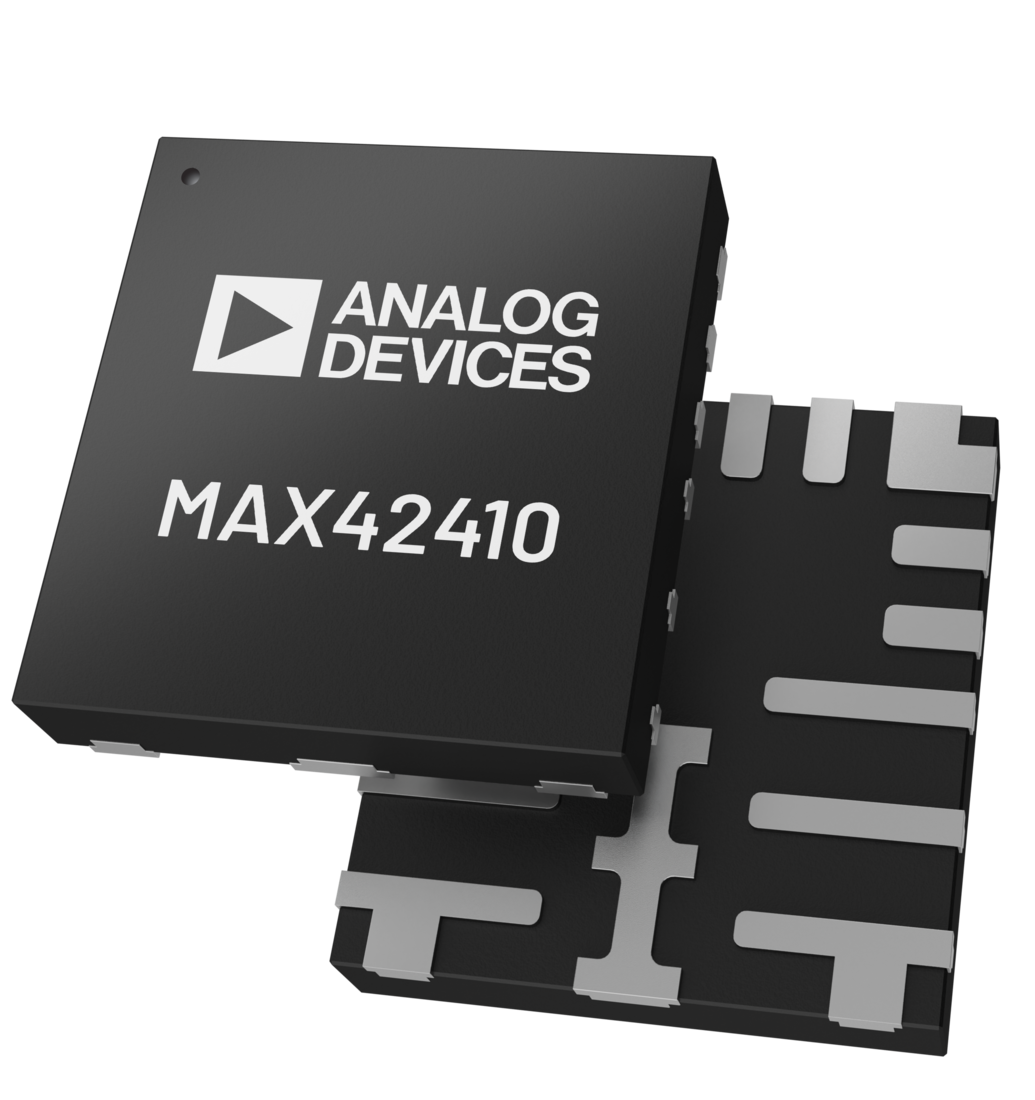

MAX42410

36V, 8A/10A Fully Integrated Buck Converter with 20μA Quiescent Current and Dual-Phase Capability

RECOMMENDED FOR NEW DESIGNS

MAX42408-MAX42410 Simplified Block Diagram slide

MAX42408-MAX42410 Dual Phase Operation (1-5MHz) slide

MAX42408-MAX42410 Single Phase Operation (1-5MHz) slide

MAX42408-MAX42410 Single Phase Operation (400kHz) slide

MAX42408-MAX42410 Pin Configuration slide

MAX42408-MAX42410 Simplified Block Diagram

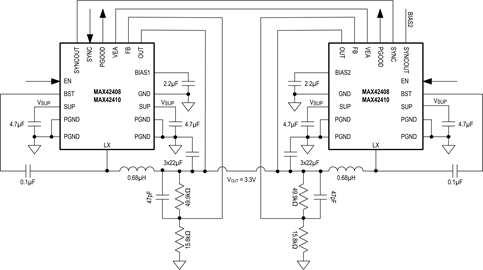

MAX42408-MAX42410 Dual Phase Operation (1-5MHz)

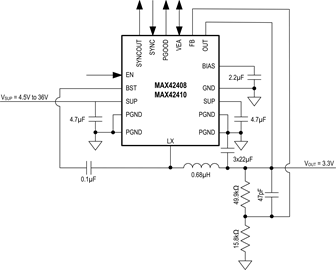

MAX42408-MAX42410 Single Phase Operation (1-5MHz)

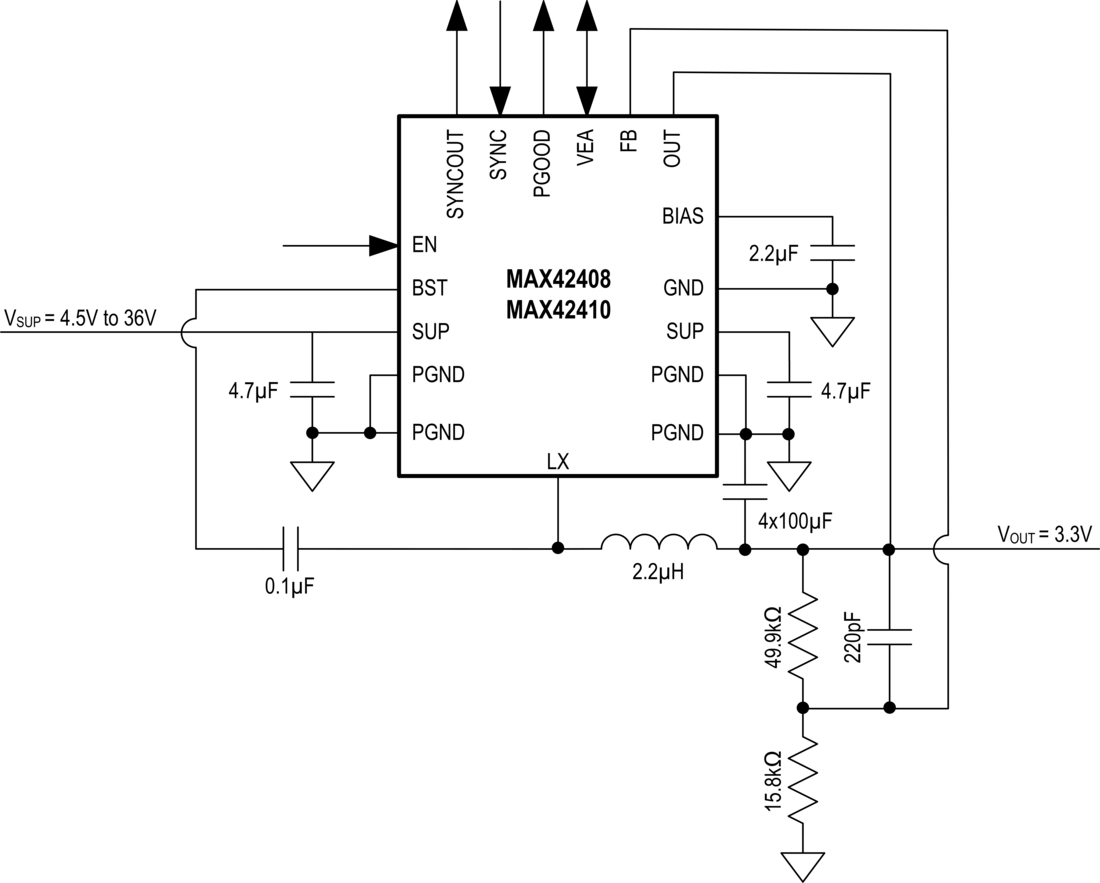

MAX42408-MAX42410 Single Phase Operation (400kHz)

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 4

1ku List Price Starting From $2.07

Features

High-Power DC/DC Converter in Small Solution Size
- Operating V_IN range of 4.5V to 36V
- Synchronous DC-DC Converter with Integrated FETs
- 8A/10A Maximum Output Current
- 400kHz and 1.5MHz Fixed Frequency Options
- Fixed Soft-Start Time
  - 2.5ms for 400kHz
  - 3.5ms for 1.5MHz
- 36ns Minimum On-Time
- Programmable Output Voltage
  - 0.8V to 10V for 400kHz
  - 0.8V to 6V for 1.5MHz
- Symmetric and Balanced SUP and PGND Pinout Placement for Better EMI Performance
- Thermally-Enhanced 3.5mm x 3.75mm, 17-Pin FC2QFN Package

High Efficiency at All Load Ranges
- 20μA Quiescent Current in Skip Mode
- Up to 95.6% Eff. at 12VIN/3.3VOUT/400kHz
- Up to 93.9% Eff. at 12VIN/3.3VOUT/1.5MHz
Dual-Phase Operation up to 20A Load Capability
- Frequency Synchronization Input/Output
- 180º Out-of-Phase Between Controller and Target
- Dynamic Current Sharing
Forced PWM and Skip-Mode Operation
99% Duty Cycle Operation with Low Dropout Voltage
Power Good Indicator
Overtemperature and Short-Circuit Protection
-40°C to +125°C Temperature Range
Scalable Power Solution
Footprint Compatible with MAX42405/MAX42406

Additional Details

The MAX42408/MAX42410 are highly-integrated synchronous buck converters with internal high-side and low-side switches. The ICs deliver up to 8A/10A with input voltage from 4.5V to 36V. The voltage quality can be monitored by the PGOOD signal. The MAX42408/MAX42410 can operate in the dropout mode by running at very high duty cycle, which make them ideal for industrial applications.

The MAX42408/MAX42410 offer programmable output-voltage options. High switching frequency at 1.5MHz and 400kHz options allow for small external components and reduced output ripple. SYNC input programmability enables three modes for optimized performance: forced PWM mode, skip mode with ultra-low quiescent current, and synchronization to an external clock.

The MAX42408/MAX42410 also come with dual-phase capability, which allows up to 20A designs. Two ICs can be configured as a controller and target with dynamic current sharing and 180º out-of-phase operation.

The MAX42408/MAX42410 are available in a small 3.5mm x 3.75mm, 17-pin FC2QFN package. They are pin-to-pin compatible with the MAX42405/MAX42406 (5A to 6A) family of products.

APPLICATIONS

Point-of-Load
Industrial Automation
Distributed DC Power Systems

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 4

1ku List Price Starting From $2.07

Technical Documents 1

MAX42408-MAX42410: 36V, 8A/10A Fully Integrated Buck Converter with 20μA Quiescent Current and Dual-Phase Capability Data Sheet (Rev.1) 01/12/2024

Design Resources 4

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX42410AFOA+	17 LD, FC2QFN 3.5X3.75X	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
MAX42410AFOA+T	17 LD, FC2QFN 3.5X3.75X	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
MAX42410AFOB+	17 LD, FC2QFN 3.5X3.75X	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
MAX42410AFOB+T	17 LD, FC2QFN 3.5X3.75X	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

MAX42410AFOA+
Pin/Package Drawing
17 LD, FC2QFN 3.5X3.75X
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

MAX42410AFOA+T
Pin/Package Drawing
17 LD, FC2QFN 3.5X3.75X
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

MAX42410AFOB+
Pin/Package Drawing
17 LD, FC2QFN 3.5X3.75X
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

MAX42410AFOB+T
Pin/Package Drawing
17 LD, FC2QFN 3.5X3.75X
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

MAX42410EVKIT

Evaluation Kit for MAX42408/MAX24210

Evaluation Kit for MAX42408/MAX24210

Download

MAX42410EVKIT

Evaluation Kit for MAX42408/MAX24210

Features and Benefits

Input Supply Range from 4.5V to 36V
Adjustable output voltage from 0.8V to 6V (1.5MHz)
Delivers Up to 8A/10A
Frequency-Synchronization Input
Enable Input
Voltage Monitoring PGOOD Output Available
Proven PCB Layout
Fully Assembled and Tested

Buy Now View Details

Product Detail

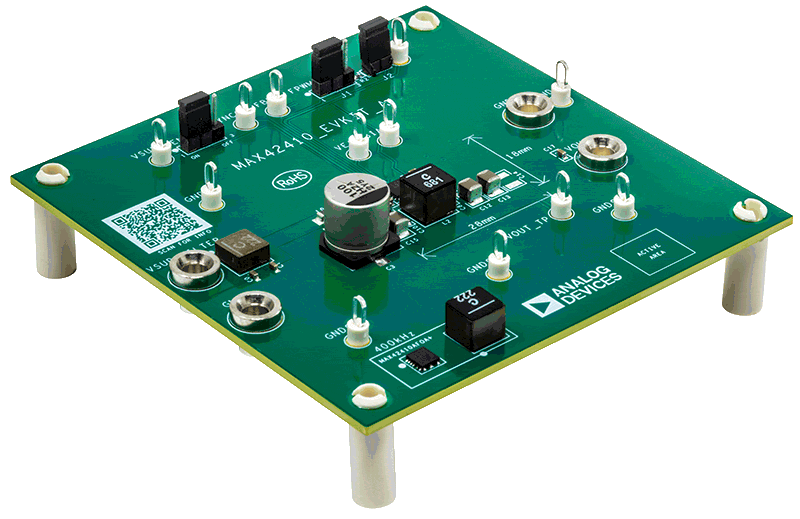

The MAX42410 evaluation kit (EV kit) provide a proven design to evaluate the MAX42410 synchronous buck converter with 10μA quiescent current. The EV kit comes with a MAX42410AFOB+ (1.5MHz) installed, as well as various test points and jumpers for evaluation. The EV kit output voltage is variable and is set to 3.3V. It can be easily configured to 0.8V to 6V (1.5MHz) or up to 10V (400kHz) with minimum component changes. The EV kit is designed to deliver up to 10A with input voltage 4.5V to 36V. The output voltage quality can be monitored by observing the PGOOD signal.

Resources

ZIP

MAX42410EVKIT Gerber Files

1 M

MAX42410EVKIT

Evaluation Kit for MAX42408/MAX24210

EE-Sim 1

EE-Sim Power® Tools

The EE-Sim DC-DC Converter Tool uses your requirements to quickly create a complete power design including a schematic, BOM with commercially available parts, and time and frequency domain simulations. Your customized schematic can be downloaded for further analysis in the standalone EE-Sim OASIS Simulator, featuring SIMPLIS and SIMetrix SPICE engines.
