MAX4142
250MHz, Low-Power, High Output Current, Differential Line Driver
Part Details
- 250MHz -3dB Bandwidth (AV = +2V/V)
- 1400V/µs Slew Rate
- 67dB at 10MHz CMR
- 0.01%/0.01º Differential Gain/Phase
- ±6V Differentially into 100Ω Output Drive
- 1mA Shutdown Capability
- 12.5mA Quiescent Supply Current
- Available in 14-Pin Narrow SO Package
The MAX4142 differential line driver combines high-speed performance with fully symmetrical differential inputs and outputs. With an internally set +2V/V closed-loop gain, the MAX4142 is ideal for driving back-terminated cables and transmission lines.
This device utilizes laser-trimmed thin-film resistors and common-mode cancellation circuitry to deliver an outstanding 67dB at 10MHz common-mode rejection (CMR). Using current-feedback techniques, the MAX4142 achieves a 250MHz -3dB (AV = +2V/V) bandwidth, a 70MHz 0.1dB bandwidth, and a 1400V/µs slew rate. Excellent differential gain/phase error and noise specifications make this amplifier an excellent choice for a wide variety of video and RF signal-processing applications.
The MAX4142 operates from ±5V power supplies and requires only 12.5mA of quiescent current. The output stage is capable of driving a 100Ω load to ±6V (differentially) or to ±3V (single-ended). The MAX4142 is available in a space-saving 14-pin SO package. For a pin-compatible, higher speed differential line driver, see the MAX4147 data sheet.

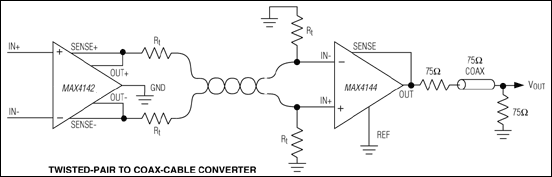

Applications
- Differential ADC Driver
- Differential Pulse Amplifier
- High-Speed Instrumentation Amplifier
- Low-Noise Differential Receivers
- Video Twisted-Pair Driver
