MAX4063

PRODUCTION

Differential Microphone Preamplifier with Internal Bias and Complete Shutdown

Data Sheet (Rev. 1) Product Selection Table

Part Models: 4
1ku List Price: Starting From $0.66

Viewing:

Overview

2.4V to 5.5V Single-Supply Operation
Differential Inputs and Outputs
Adjustable Gain
High 95dB PSRR
High 79dB CMRR
Low-Noise, Integrated Microphone Bias
750µA Supply Current
0.3µA Shutdown Current
±4kV ESD Protection (AUX_IN)
THD+N: 0.05% at 1kHz
Available in Space-Saving Packages
- 14-Pin TSSOP
- 16-Pin TQFN (4mm x 4mm x 0.8mm)

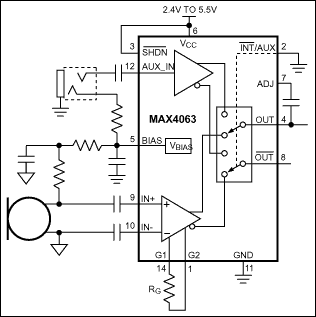

The MAX4063 is a differential-input microphone preamplifier optimized for high-performance, portable applications. The device features two selectable inputs, differential outputs, adjustable gain, an integrated low-noise bias source, and a low-power shutdown mode. Two input paths provide both differential and single-ended microphone sensing. The high-noise rejection of the differential input is ideally suited to an internal microphone where system noise and long-run PC board traces can degrade low-level signals. The single-ended input provides a simple connection to an external microphone.

The differential and single-ended inputs have independent, adjustable gains that are set with a single external resistor. Differential outputs provide a full-scale signal of up to 6V_P-P from a single 3V supply, optimizing the dynamic range of the amplified signal. A complete shutdown mode reduces the supply current to only 0.3µA and disables the microphone bias for the ultimate in power savings.

The MAX4063 operates from 2.4V to 5.5V and is specified over the extended -40°C to +85°C operating temperature range. The MAX4063 is available in both 16-pin TQFN (4mm x 4mm x 0.8mm) and 14-pin TSSOP packages.

Applications

Notebook Audio Systems
PDA Audio Systems
Signal Conditioning
Tablet PCs

Part Models: 4
1ku List Price: Starting From $0.66

Documentation

Data Sheet 1

MAX4063: Differential Microphone Preamplifier with Internal Bias and Complete Shutdown Data Sheet (Rev.1) 07/13/2011

Reliability Data 1

MAX4063 Reliability Data 01/12/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX4063ETE+	16-LFCSP-4X4X0.75	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX4063ETE+T	16-LFCSP-4X4X0.75	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX4063EUD+	Thin Shrink Small-Outline Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX4063EUD+T	Thin Shrink Small-Outline Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jun 20, 2016 - 1612 ASSEMBLY
		pcn_1612
MAX4063ETE+	PRODUCTION
MAX4063ETE+T	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits

Evaluation Kit for the MAX4063

Buy Now View Details

Features and Benefits

2.4V to 5.5V Single-Supply Operation
High 95dB PSRR
Low-Noise Integrated Microphone Bias
Single-Ended and Differential Inputs
Differential Output
Externally Adjustable Gain
0.3µA Shutdown Current
Small 14-Pin TSSOP Package
Fully Assembled and Tested

Product Details

The MAX4063 evaluation kit (EV kit) is a fully assembled and tested circuit board that uses the MAX4063 low-noise microphone amplifier IC designed for a single 2.4V to 5.5V application. The MAX4063 IC contains two microphone amplifiers. The main amplifier is typically used to sense an internal (built-in) system microphone, and an auxiliary amplifier that can be used to sense an external (plug-in) microphone. The differential and single-ended gains of the amplifiers are adjustable with jumpers and resistors. The differential output allows the EV kit to drive a load at up to 6V_P-P. The EV kit also features low quiescent current and a shutdown control to minimize power consumption.

The EV kit demonstrates how the MAX4063 can provide a complete microphone solution for a notebook PC. The MAX4063 is available in 14-pin TSSOP and 16-pin QFN (4mm x 4mm x 0.8mm) packages.
