MAX40025A

280ps High-Speed Comparator, Ultra-Low Dispersion with LVDS Outputs

Industry's Fastest LVDS Comparator with 280ps Propagation Delay and Overdrive Dispersion of 25ps

Buy Now

Recommended for New Designs

Top

Overview

Features and Benefits
Product Details

Features and Benefits

Fast Propagation Delay: 280ps, Typ
Low Overdrive Dispersion: 25ps (V_OD = 10mV to 1V)
Supply Voltage 2.7V to 3.6V
39.4mW at 2.7V Supply
Power-Efficient LVDS Outputs
-40°C to +125°C Temperature Range
Automotive AEC-Q100 Qualified (TDFN-8 Version)
Internal 1.5mV Hysteresis: MAX40026
Internal 2.5mV Hysteresis: MAX40025A

Product Details

The MAX40025 and MAX40026 are single-supply, high-speed comparators with a typical propagation delay of 280ps. The overdrive dispersion is extremely low (typical 25ps), making these comparators ideal for time-of-flight distance measurement applications.

The input common mode range of 1.5V to V_DD + 0.1V is compatible with the output swings of several widely used high-speed trans-impedance amplifiers, such as the MAX40658.

The output stage is LVDS (Low-Voltage Differential Signaling), which helps to minimize power dissipation and interfaces directly with many FPGAs and CPUs. Complementary outputs help in suppression of common-mode noise on each output line.

The MAX40025 is offered in a space-saving, tiny, 1.218mm x 0.818mm, 6-bump wafer-level package (WLP), while the MAX40026 is available in a 2mm x 2mm 8-pin TDFN package and meets AEC-Q100 automotive qualification requirements. The MAX40025/MAX40026 operate over -40°C to +125°C temperature range and run from a single supply voltage of 2.7V to 3.6V.

Applications

Automotive Applications
Communications
Distance Sensing in LIDAR, RADAR, and SONAR
High-Speed Differential Line Receivers
High-Speed Level-Shifting
High-Speed Triggering in Oscilloscopes
Oscillators
Test and Measurement
Threshold Detectors
Time-of-Flight Sensors

Product Categories

Analog Functions
- High Speed Comparators (<100ns Propagation Delay)
- Comparators

Comparable Parts Click to see all in Parametric Search

Product Lifecycle Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

Evaluation Kits (2)

MAX40026EVKIT

Evaluation Kit for the MAX40026

MAX40025EVKIT

Evaluation Kit for the MAX40025A/MAX40025C

MAX40026EVKIT

View Detailed Evaluation Kit Information

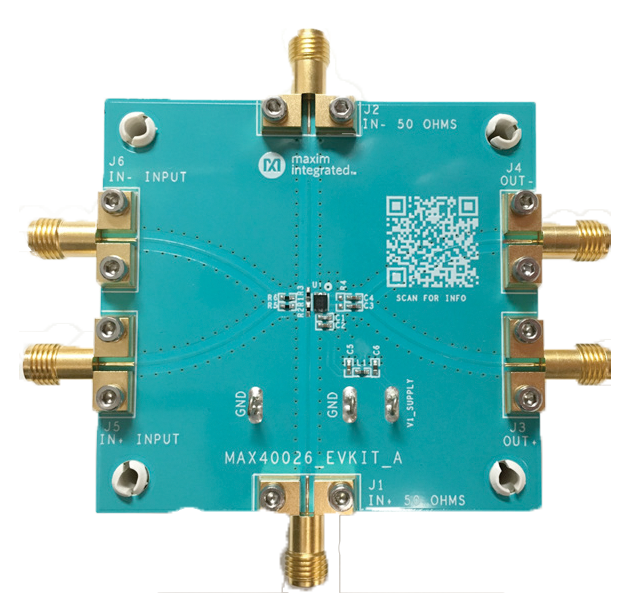

The MAX40026 evaluation kit (EV kit) is a fully assembled electrical demonstration kit that provides a proven design to evaluate the MAX40026 ultra-low 280ps propagation delay, ultra-low dispersion comparator with 2mV hysteresis. The board provides layout options that allow the input termination to be easily modified for alternative input terminations. The comparator outputs are designed to drive low voltage differential signal outputs (LVDS). The LVDS outputs help minimize power dissipation and interfaces directly with high speed interconnect devices, FPGA’s and CPU. The MAX40026 comparator is ideal for time of flight distance measurement applications.

This EV kit demonstrates the MAX40026ATA/VY+ in an 8-pin TDFN package.

Applications

Communications
Distance Sensing in LIDAR, RADAR, and SONAR
High-Speed Differential Line Receivers
High-Speed Level-Shifting
High-Speed Triggering in Oscilloscopes
Oscillators
Test and Measurement
Threshold Detectors
Time-of-Flight Sensors

Features & Benefits

Fast Propagation Delay: 280ps typ
Low Overdrive Dispersion: 25ps (V_OV = 10mV to 100mV)
Supply Voltage 2.7V to 3.6V
39.4mW at 2.7V Supply
Power-Efficient LVDS Outputs
-40°C to +125°C Temperature Range

Resources

MAX40026EVKIT ODB File - Design Files

TGZ

3.69M

MAX40025EVKIT

View Detailed Evaluation Kit Information

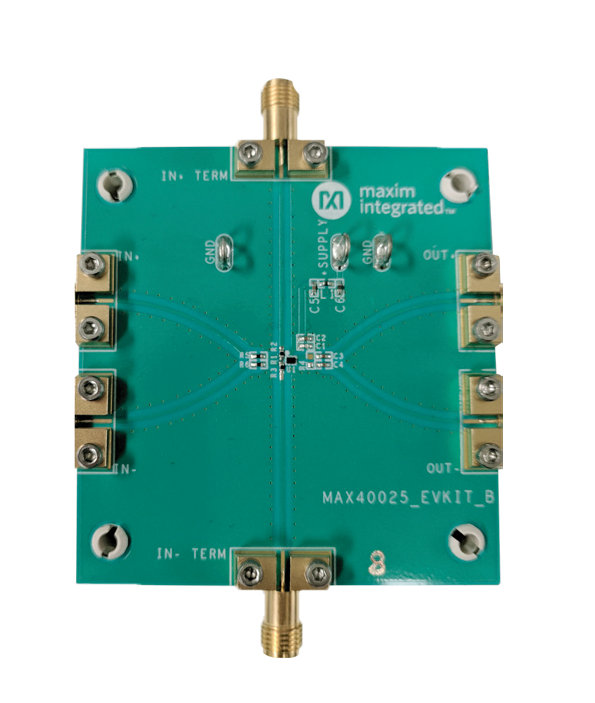

The MAX40025 evaluation kit (EV kit) is a fully assembled electrical demonstration kit that provides a proven design to evaluate the MAX40025 ultra-low 280ps propagation delay, ultra-low dispersion comparator. The board provides layout options that allow the input termination to be easily modified for alternative input terminations. The comparator outputs are designed to drive low voltage differential signal outputs (LVDS). The LVDS outputs help minimize power dissipation and interfaces directly with high speed interconnect devices, FPGAs and CPUs. The MAX40025 comparator is ideal for time of flight distance measurement applications.

This evaluation kit demonstrates the MAX40025CAWT+ in 6-pin wafer-level package (WLP). For other available pincompatible option (MAX40025AAWT+), contact factory.

Applications

Automotive Applications
Communications
Distance Sensing in LIDAR, RADAR, and SONAR
High-Speed Differential Line Receivers
High-Speed Level-Shifting
High-Speed Triggering in Oscilloscopes
Oscillators
Test and Measurement
Threshold Detectors
Time-of-Flight Sensors

Features & Benefits

Fast Propagation Delay: 280ps (Typ)
Low Over-Drive Dispersion: 25ps (V_OD = 20mV to 100mV)
Supply Voltage 2.7V to 3.6V
39.4mW at 2.7V Supply
Power-Efficient LVDS Outputs
-40°C to +125°C Temperature Range

Resources

MAX40025EVKIT ODB File - Design Files

TGZ

3.68M
