MAX40016
4-Decade Current Sense Amplifier with Integrated Current Sense Element
Industry's Widest Dynamic Range Current Sense Amplifier
Top
Overview
Features and Benefits
- Integrated Current Sense Element Saves The Space and Cost of Expensive Precision Sense Resistors
- 4-Decade Measurement Range
- Maintains Accuracy from < 300µA to > 3A
- Withstands Overloads to 4A
- Low Voltage Drop Across Sense Element
- 60mV (Active Mode, 3A Load, WLP Package)
- 35mV (Low Power Mode, 3A Load, WLP Package)
- Three Multiplexed Scaling Resistor Outputs Allow Full Dynamic Range while Interfaced to 12-bit ADCs
- +2.5V to +5.5V Input Supply Voltage Range
- Low Power Mode Reduces Supply Current to 10μA Max
- Space-Saving
- Tiny 1.98mm x 1.3mm, 15-Bump, WLP
- 4mm x 4mm 16-Pin TQFN
- -40°C to +125°C Operating Temperature Range
Product Details

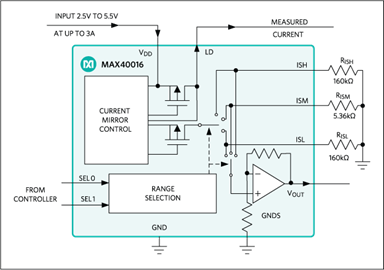

The MAX40016 is a very wide range current sense amplifier (CSA) with internal sense element that senses from less than 300µA to greater than 3A current range. The 4-decade sensed current functions with 1% (typical) gain error and offers three, multiplexed programmable output ranges in order to interface with 12-bit ADCs. Having an integrated sense element has the extra advantage that the entire current measuring path can be factory-trimmed, saving the user from having to calibrate independent sense resistors and CSAs. The MAX40016 (WLP package) drops a typical of 60mV at 3A from the voltage input to load output .
The MAX40016's integrated current-sensing element saves the space and cost of an external high-power, precision current sense resistor. The MAX40016 is offered in an ultra-tiny, 1.98mm x 1.31mm, 15-bump waferlevel package (WLP), further reducing board space. The MAX40016 is also available in a 4mm x 4mm 16-pin TQFN package.
The MAX40016 operates with a supply voltage from 2.5V to 5.5V. The device features a low-power mode in which the current-sensing element remains on, but the outputs are turned off to reduce the total supply current below 10µA (max).
The MAX40016 also includes a committed on-board amplifier with an internal gain of 1.5V/V. The MAX40016 operates over the -40°C to +125°C temperature range.
Applications
- Mobile Devices
- Portable Instruments
- RF Power Monitoring
Product Categories
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
