Overview

Features and Benefits

  • Deliver Wide, Flexible Operating Range
    • 1.7V to 5.5V Input Supply Range
    • 0.8V to 5.0V Output Voltage Range
    • 500mA Maximum Output Current
    • 24.3mV Dropout at 500mA Load and 5.0V Input Voltage
    • 19.2µA No-Load Supply Current in Low-Power Mode
    • 332µA Supply Current in Normal Mode
    • <1µA Shutdown Supply Current
  • Reduce Noise and Improve Accuracy
    • 11µVRMS Output Noise, 10Hz to 100kHz
    • 70dB PSRR at 10kHz, 250mA Load Current, and 300mV Input and Output Voltage Separation
    • ±1% DC Accuracy over Load, Line, and Temperature Variations
  • Enable Ease-of-Use and Robust Protection
    • Stable with 2µF (Minimum Effective) Output Capacitance
    • Programmable Soft-Start Rate
    • Overcurrent and Overtemperature Protection
    • Reverse-Current Protection
    • Power-OK Output
  • Reduce Size and Improve Reliability
    • 1.42mm x 0.83mm, 3 x 2, 6-Bump, 0.4mm Pitch WLP
    • 2mm x 2mm, 8-Pin TDFN Package
    • -40°C to +125°C Operating Temperature

Product Details

The MAX38911/MAX38912 are low-noise, high-PSRR PMOS linear regulators that deliver up to a 500mA load current with only 11µVRMS of output noise from 10Hz to 100kHz.

The regulators are fully protected from damage by internal circuitry that provides programmable inrush current limiting, output overcurrent limiting, reverse current limiting, and thermal overload protection.

The MAX38911 is available in WLP and TDFN packages and are default factory preprogrammed to an output voltage of 1.8V. Custom fixed-output voltage levels in the range of 0.8V to 5.0V in 50mV steps are also available, see Ordering Information.

MAX38912 provides enhanced flexibility with adjustable output voltage in the range of 0.8V to 5.0V by using two external feedback resistors.

The MAX38911ANT is packaged in a 1.42mm x 0.83mm, 3 x 2, 6-bump, 0.4mm pitch WLP, while the MAX38911ATA and MAX38912ATA are packaged in a 8-pin, 2mm x 2mm TDFN.

Applications

  • Digital Camera and Audio Devices
  • High-Performance Sensors for Portable Applications
  • Imaging and High-Frequency Sensors
  • IoT Sensors
  • Mobile Phones
  • Portable and Battery-Powered Equipment

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

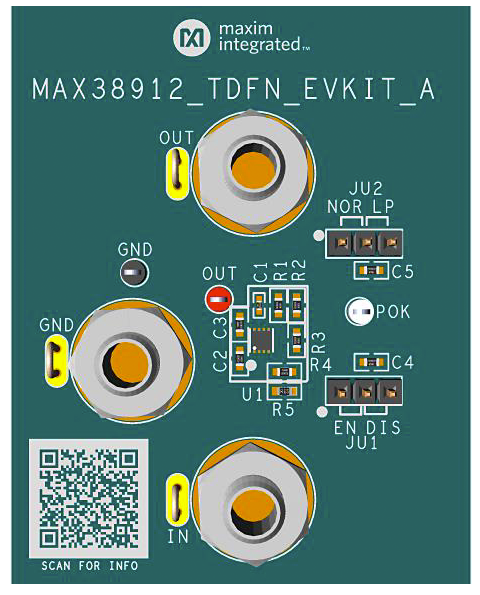

Evaluation Kits (2)
