MAX3600

Laser Driver for Projectors

Industry's First Triple-Laser Drivers for Pico RGB Projectors Reduce PCB Footprint to 5mm x 5mm for Resolutions Up to XGA

Data Sheet (Rev. 2)

Viewing:

Overview

Integrates Four Current-Output Laser Drivers
Compatible with Red, Blue, and Green Lasers
10-Bit Video DACs, f_CLK = 1MHz to 160MHz
8-Bit Gain and Offset DACs
2ns Output Switching Time
Serial Port Control
Laser Enable
Random-Noise Generator and Periodic Off
5mm x 5mm, 40-Pin TQFN Package (0.4mm Pitch)

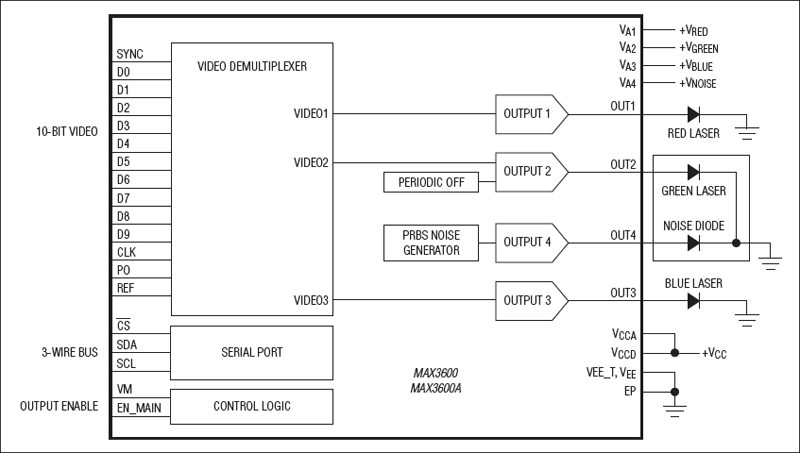

The MAX3600 laser driver for projectors supports video imaging with red, blue, and green lasers. Each output includes a 10-bit video digital-to-analog converter (DAC) with programmable gain and offset. For operation with synthetic green lasers, the driver includes a periodic off function and a fourth output with a random-noise generator.

The MAX3600B/R/G are monochrome drivers for blue, red, and green lasers. The MAX3600A guarantees higher full-scale output currents than the MAX3600, and is recommended for new designs.
