MAX32592
DeepCover Secure Microcontroller with ARM926EJ-S Processor Core
High-Performance, Single-Chip Secure Microcontroller with Encrypted External Bus and Advanced Physical Security
Top
Overview
Features and Benefits
- High Performance CPU platform Enables Feature Rich OS
- Arm926EJ-S™ Processor Core with 16KB Data Cache and 32KB Instruction Cache
- 4KB Instruction TCM, 4KB Data TCM
- Up to 400MHz Core Operating Frequency
- Up to 200MHz Multilayer AHB Bus Matrix
- Up to 100MHz APB Bus Matrix
- 384KB System SRAM
- Flexible Clock Prescalers
- Configurable Low-Power Modes
- Security Features Facilitates System-Level Protection
- Secure Bootloader with Public Key Authentication
- 256-Bit Flip-Flop-Based Nonvolatile AES Key Storage
- 24KB AES User-Encryptable NV SRAM
- 2KB User-Programmable OTP
- AES, DES, and SHA Hardware Accelerators
- Modulo Arithmetic Hardware Accelerator (MAA) Supporting RSA, DSA, and ECDSA
- Secure Keypad Controller
- Hardware True Random Number Generator
- Die Shield with Dynamic Fault Detection
- Six External Tamper Sensors with Independent Random Dynamic Patterns
- Temperature and Voltage Tamper Monitor
- Real-Time External Memory Encryption and Integrity Check
- 104-Bit Unique Serial Number (USN)
- Optimal Peripheral Mix Provides Platform Scalability
- External Memory Controller (LPDDR400, SDRAM, SRAM, NOR Flash, NAND Flash)
- NAND Flash Controller with Hardware ECC
- USB 2.0 Host/Device with Internal Transceivers
- Three UART Ports/One I2C Port
- Three SPI Ports with I2S Functionality
- Two ISO 7816 Smart Card Interfaces
- SD/SDHC/SDIO Interface
- 10/100Mbps Ethernet MAC Controller
- Three Timers with PWM Capability
- Up to 126 General-Purpose I/O Pins
- 2-Channel, 10-Bit ADC
- LCD Controller Supporting STN and TFT Displays
- Monochrome LCD Controller
- 16-Channel DMA Controller
- Real-Time Clock
- Advanced Interrupt Controller
Product Details
DeepCover® embedded security solutions cloak sensitive data under multiple layers of advanced physical security to provide the most secure key storage possible.

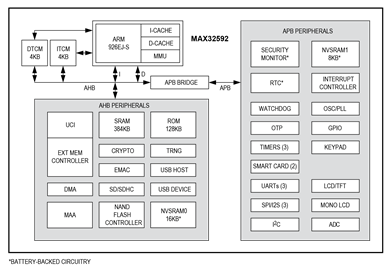

The DeepCover Secure Microcontroller (MAX32592) provides an interoperable, secure, and cost-effective solution to build new generations of trusted devices such as multimedia-enabled portable EFT-POS terminals. The MAX32592 integrates a memory management unit (MMU), 32KB of instruction cache, 16KB of data cache, 4KB instruction TCM, 4KB data TCM, 384KB of system RAM, 2KB of one-time-programmable (OTP) memory, 128KB of boot ROM, and 24KB of battery-backed SRAM. The MAX32592 maximizes on-chip bandwidth when dealing with high-speed communication such as 100Mbps Ethernet, large color LCD displays, and gigabit-sized mass storage devices.
In addition to hardware crypto functions, the MAX32592 provides a true random number generator, battery-backed RTC, nonvolatile SRAM and real-time environmental and tamper detection circuitry to facilitate system-level security for the application.
The secure microcontroller includes multiple communication interfaces. One USB host controller and one USB device controller with their respective USB transceiver, two smart card controllers, three SPI ports, three UARTs, an SD/SDHC/SDIO controller an Ethernet 10/100 MAC with FIFO, and an I²C bus are also provided. The three on-chip timers also support PWM output generation for direct control of external devices. An integrated secure keypad provides an integrated solution for mobile POS terminals. Additionally, a 2-channel, 10-bit ADC is provided for printer support and general use.
Applications
- ATM Keyboards
- Authentication
- Certificate
- Electronic Commerce
- Electronic Gaming
- EMV Card Readers
- Pay-per-Play
- PCI Terminals
- PIN Pads
- Secure Access Control
- Secure Data Storage
Complete documentation is available upon completion of a Non-Disclosure Agreement (NDA). To request an NDA, click here.
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
