MAX32520
ChipDNA Secure Arm Cortex M4 Microcontroller
Show MoreChipDNA Secure Microcontroller with Secure Boot for IoT Applications
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support PageFeatures
- High-Efficiency Microcontroller for Secure Element IoT
- Arm Cortex-M4F with FPU Up to 120MHz
- 16KB Unified Code Cache
- 2MB PUF Encrypted Flash Memory with Cache Provides Ultimate Firmware IP Protection
- Low Latency On-the-Fly Decryption of Flash Execution
- 136KB SRAM + 34KB ECC
- 8KB User-Programmable OTP
- Secure Element
- PUF-Based Keys
- For Internal Flash Encryption
- For Strong Device Authentication
- Secure Boot Loader with Public Key Authentication and Serial Flash Emulation
- AES, SHA, and ECDSA Accelerators
- Hardware True Random Number Generator
- SP800-90B Compliant Entropy Source
- SP800-90A Compliant DRBG
- Die Shield
- Temperature and Voltage Tamper Monitor
- External Tamper Sensor with Random Dynamic Pattern
- PUF-Based Keys
- Power Management Maximizes Operating Time for Battery Applications
- Single 3.3V/2.5V/1.8V Supply
- Down to 3.2μA Backup Mode
- 15μs Wake-Up Time from Standby Mode
- Clock Gating, Power Gating, Registers, and Memory Retention Modes
- Multiple Peripherals for System Control
- One UART
- One I²C Interface
- QSPI
- Four Timers with PWM Capability
- Up to 27 General-Purpose I/O Pins with Selectable Output Driver Strength
- 4-Channel DMA Controller
- 4-Pin JTAG
DeepCover® embedded security solutions cloak sensitive data under multiple layers of advanced physical security to provide the most secure key storage possible.
The DeepCover secure microcontroller MAX32520 provides an interoperable, secure, and cost-effective solution to build new generations of trusted embedded systems and communication devices such as IoT, IoT gateways, and wireless access points.
The MAX32520 incorporates Maxim's patented ChipDNA™ PUF technology. ChipDNA technology involves a physically unclonable function (PUF) that enables cost-effective protection against invasive physical attacks. Using the random variation of semiconductor device characteristics that naturally occur during wafer fabrication, the ChipDNA circuit generates a unique output value that is repeatable over time, temperature, and operating voltage. Attempts to probe or observe ChipDNA operation modifies the underlying circuit characteristics, preventing discovery of the unique value used by the chip cryptographic functions. The MAX32520 utilizes the ChipDNA output as key content to cryptographically secure all device stored data including user firmware. User firmware encryption provides ultimate software IP protection. The ChipDNA can also generate a private key for the ECDSA signing operation.
The MAX32520 integrates an Arm® Cortex® -M4 processor, 2MB of Flash, 136KB of system RAM + 34KB ECC, 8KB of one-time-programmable (OTP) memory and 128KB of boot ROM.
The MAX32520 provides a FIPS/NIST compliant TRNG, environmental and tamper detection circuitry to facilitate system-level security.
Multiple high-speed interfaces are supported including SPI, UART, and an I²C. The four on-chip timers also support PWM output generation for direct control of external devices. One of the SPI ports has a serial flash emulation mode allowing direct code fetching enabling secure boot for a host microcontroller.
Applications
- Embedded Communication Equipment (Routers, Gateways, etc.)
- Embedded Connected Systems
- IoT Nodes and Gateways
- Secure Industrial Appliances, Sensors, and Controllers
- Set-Top Boxes
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
- {{newProjectText}} {{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
MAX32520
Documentation
Filters
1 Applied
User Guide
2
Reliability Data
1
170.18K
Design Note
1
HTML
Documentation
Data Sheet 1
Reliability Data 1
User Guide 2
Design Note 1
Webcast 1
Video
1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
---|---|---|---|
MAX32520-BNJ+ | 32-LFCSP-5X5X0.75 |
|
|
MAX32520-BNS+ | 32-LFCSP-5X5X0.75 |
|
|
MAX32520-BNS+T | 32-LFCSP-5X5X0.75 |
|
- MAX32520-BNJ+
- Pin/Package Drawing
- 32-LFCSP-5X5X0.75
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- MAX32520-BNS+
- Pin/Package Drawing
- 32-LFCSP-5X5X0.75
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- MAX32520-BNS+T
- Pin/Package Drawing
- 32-LFCSP-5X5X0.75
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
Software & Part Ecosystem
Parts | Product Life Cycle | Description | ||
---|---|---|---|---|
Product1 |
||||
Obsolete |
DeepCover Cryptographic Controller for Embedded Devices |
|||
Secure Authenticators1 |
||||
PRODUCTION |
DeepCover Cryptographic Controller for Embedded Devices |
|||
Security Managers2 |
||||
PRODUCTION |
Security Supervisor with Tamper Detection and Cryptography |
|||
PRODUCTION |
Security Supervisor with Tamper Detection and Cryptography |
Evaluation Kits 2
MAX32520-KIT
Evaluation Kit for the MAX32520
Product Detail

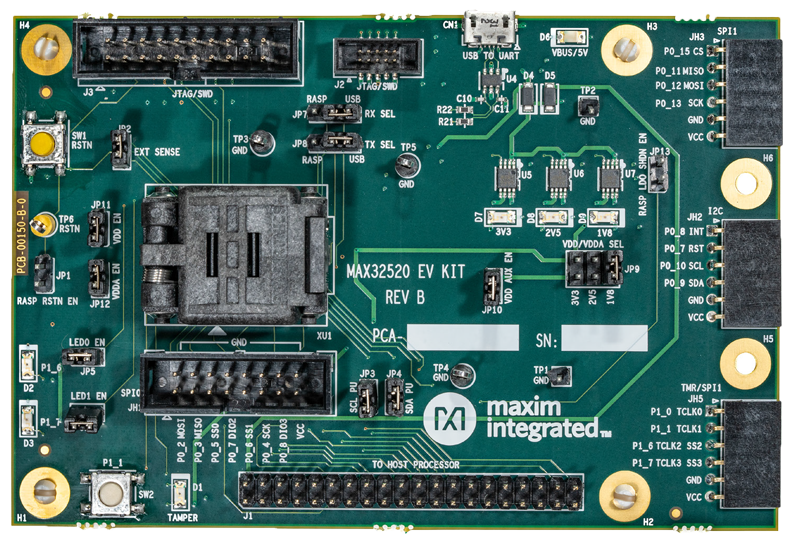

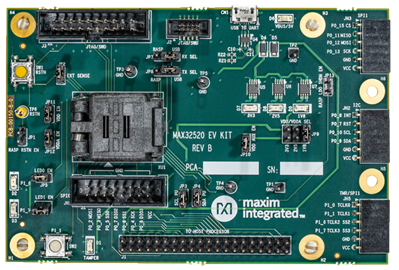

The MAX32520 evaluation kit (EV kit) provides a platform for evaluation capabilities of the MAX32520 for secure element IoT utilizing Maxim’s proprietary PUF (physically unclonable function) technology.
The MAX32520 integrates an Arm® Cortex® M4 processor with FPU, 2MB of flash, 136KB of system RAM and 34KB ECC, 8KB of one-time-programmable (OTP) memory and 128KB of boot ROM. It provides a FIPS/ compliant TRNG, as well as environmental and tamper detection circuitry to facilitate system-level security. Multiple high speed interfaces are supported including SPI, UART, and an I2C. One of the SPI ports has a serial flash emulation mode allowing direct code fetching enabling secure boot from a host microcontroller.
Applications
- Embedded Communication Equipment (Routers, Gateways, etc.)
- Embedded Connected Systems
- IoT Nodes and Gateways
- Secure Industrial Appliances, Sensors, and Controllers
- Set-Top Boxes
Resources
MAX32520FTHR
Evaluation Kit for the MAX32520
Product Detail

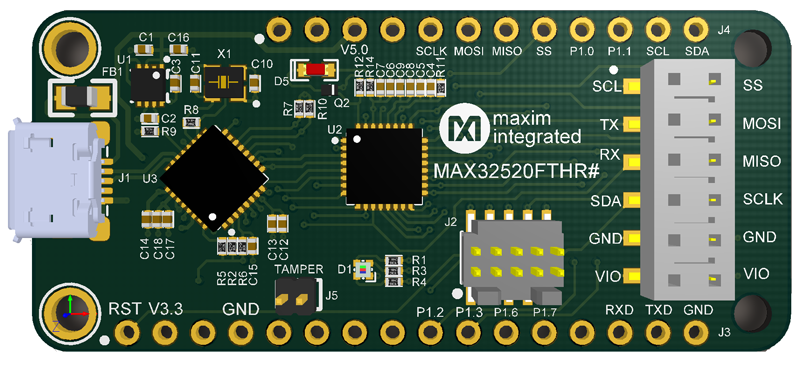

The MAX32520FTHR evaluation kit provides an inexpensive and convenient platform for evaluating the MAX32520 secure Arm® Cortex®-M4 processor with FPU that incorporates Maxim’s patented ChipDNA™ PUF technology and other security features. The featherwing form factor and USB connectivity enable rapid prototyping and firmware development.
