MAX2741

Integrated L1-Band GPS Receiver

Data Sheet (Rev. 1)
Viewing:

Part Details

  • Supports All Popular Handset Reference Frequencies Up to 26MHz
  • 4.7dB Cascaded Noise Figure
  • 80dB Cascaded Gain
  • Tolerates -90dBm In-Band Jammer
  • Tolerates +13dBm CDMA Out-of-Band Jammer at Device Input
  • Integrated Synthesizer and VCO
  • Integrated 2- or 3-Bit ADC
  • 50dB IF AGC Range
  • Small 28-Pin Thin QFN Package
  • SPI™ Control Interface
  • Clock Output for Baseband Processor
MAX2741
Integrated L1-Band GPS Receiver

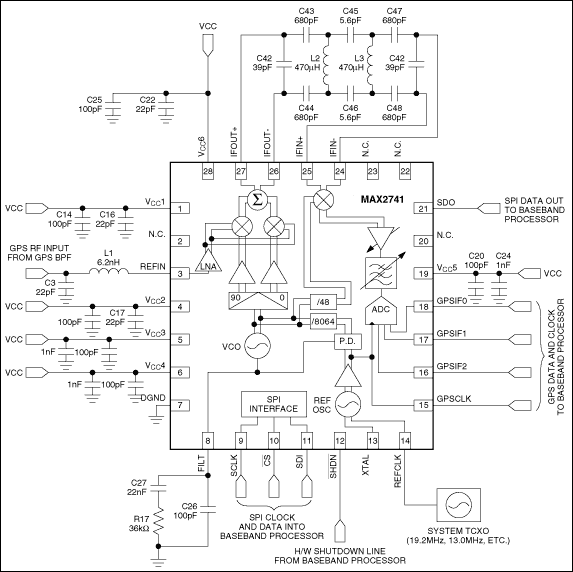

MAX2741: Typical Operating Circuit
