The MAX26402/MAX26403 ICs are tiny, low-electromagnetic interference (EMI) emission, synchronous Silent Switcher® buck converters with integrated high-side and low-side switches. The MAX26402/MAX26403 deliver up to 2.5A/3.5A over a wide 3V to 36V input voltage range. Voltage quality can be monitored by observing the power-good (PGOOD) signal. These ICs can operate in dropout by running at 99% duty cycle, making them ideal for industrial applications.
The MAX26402/MAX26403 offer externally programmable or internally fixed output voltages of 5V and 3.3V. Fixed internal frequency options of 3MHz/2.1MHz/400kHz are available, which allow for small external components and reduced output ripple, and also guarantee no amplitude modulation (AM) interference.
When SYNC is low, the MAX26402/MAX26403 automatically enter skip mode at light loads with an ultra-low quiescent current of 10μA at no load. A pin-selectable, forced-pulse-width-modulation (PWM) mode is also available, which helps improve EMI performance. The devices have a spread-spectrum frequency modulation option designed to minimize EMI-radiated emissions due to the modulation frequency.
The devices feature the MAXQ® power architecture, which provides precision transient performance and phase margin. This allows obtaining the maximum power, powerformance, and precision while minimizing system cost for any specific application.

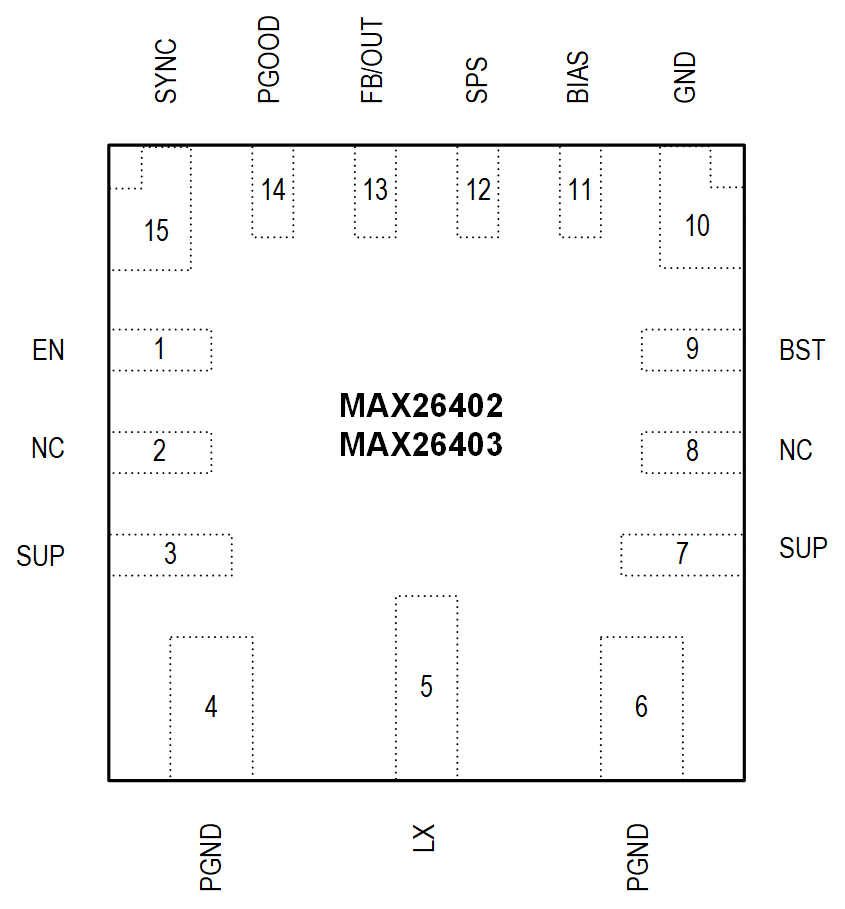

The MAX26402/MAX26403 are available in a small, 3mm x 3mm FC2QFN package and use very few external components.
APPLICATIONS
- Point-of-Load Power Supplies
- 12V/24V Industrial Applications
- Telecom, Servers, and Networking Equipment
