Overview

Features and Benefits

  • USB-PD PHY That is TCPCI Standard for Use with Any Low-Cost I2C Master Such as Hub IC, MCU or SOC (MAX25430B)
    • Ground-Offset-Adjusted BMC PHY for Maximum Signal-to-Noise Ratio
  • Non-TCPC Versions Available for Protecting External USB-PD Controller (MAX25430A)
  • Integrated Buck-Boost Controller for External H-bridge
    • 4.5V to 36V Input Operating Range
    • Fixed PDO 5V, 9V, 15V, and 20V up to 5.0A
    • 220kHz, 300kHz, or 400kHz Switching Frequency
    • External Frequency Synchronization and Spread Spectrum for Reduced EMI
  • Integrated and User-Programmable Buck-Boost Output Voltage Adjustment up to 500mΩ of Cable Resistance
  • Highest Performance, Safest, and Lowest Cost Passenger Cable-Shield Short-to-Battery Protection
    • Minimizes Short-Circuit Currents with a Small, Single-FET Solution
  • Integrated 3.0V to 5.5V 1W Smart, Reliable VCONN Switch with Protection
  • Integrated 24V Protection on HVD+, HVD-, HVCC1 and HVCC2
  • Integrated Legacy USB 2.0 Charging Support including BC1.2, Apple CarPlay, MFi R33, and OTG
  • Integrated ±15kV Air, ±8kV Contact ISO 10605 and IEC 61000-4-2 ESD Protection
  • -40°C to 125°C Operating Temperature Range
  • 40-Pin (6mm x 6mm) TQFN Package with EP
  • AEC-Q100 and AEC-Q006 Qualified

    • Product Details

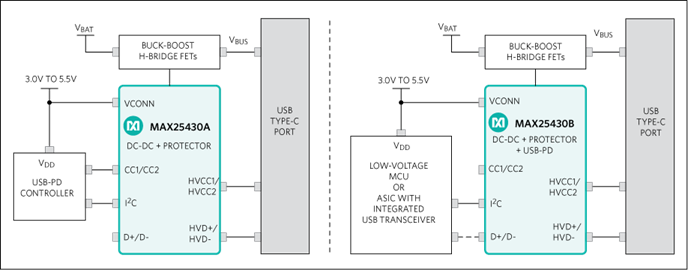

    The MAX25430 combines an automotive-grade buck-boost controller capable of driving up to 5.0A, a USB-PD Analog Front-End (AFE), Legacy USB Charging support and USB Type-C™ protection for USB host or DFP applications. The USB Type-C protection switches provide automotive system-level ESD and 24V short-circuit protection for D+, D-, CC1, CC2, and VCONN. The device also supports legacy USB 2.0 charging modes including BC1.2, Apple° 2.4A, Apple CarPlay°, Apple MFi and USB On-The-Go (OTG).

    The MAX25430B integrates a USB-PD AFE which supports the USB-IF Type-C Port Controller Interface (TCPCI) specification and can interface with any I2C Master in the application.

    The MAX25430A provides CC signal passthrough protection for an external USB-PD controller.

    G-Suffix devices include intelligent detection and protection to avoid high short-circuit currents flowing from the car battery through the cable shield to ground during fault events, preventing car module damage.

    The MAX25430 EVKIT and collateral provides a convenient platform to the design engineer for rapid evaluation with reduced test and firmware development time. The MAX25430 is available in a small 6mm x 6mm 40-pin TQFN package and requires very few external components.

    How to Quickly Set Up the MAX25430AEVKIT

    Applications

    • Dedicated Charging Modules
    • Rear-Seat Entertainment Modules
    • USB Hubs, Breakout Boxes and Multimedia Hubs

    Product Categories

    Comparable Parts Click to see all in Parametric Search

    Product Lifecycle icon-recommended Production

    At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

    Evaluation Kits (1)

    Documentation & Resources

  • View All (5)
  • Data Sheets (1)
  • Reliability Data (1)
  • Videos (2)
  • Technical Articles (1)
    • Document Type

    Tools & Simulations

    Software Development

    MAX25430 EVKIT Software, 1.0.0
    ZIP

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    MAX25430AATLF/V+ Material Declaration Reliability Data 40-LFCSP-6X6X0.75
    MAX25430AATLF/V+T Material Declaration Reliability Data 40-LFCSP-6X6X0.75
    Wafer Fabrication Data MAX25430 Reliability Data
