MAX24011

LAST TIME BUY

2.5Gbps Transimpedance Amplifier

Optimum Combination of Low Power, High Sensitivity, and Built-In Received Signal Strength Indicator

Data Sheet (Rev. 2) Product Selection Table

Part Models: 1
1ku List Price: price unavailable

Viewing:

Overview

-33dBm (typ) Sensitivity With APD
Up to 2.5Gbps (NRZ) Data Rates
190nA_RMS (typ) Input-Referred Noise
Automatic Gain Control of Overload
31mA (typ) Current Consumption
Received Signal Strength Indicator Output from PDA or PDC
-40°C to +95°C Operating Temperature Range

The MAX24011 is a low-power and high-sensitivity 2.5Gbps continuous mode transimpedance amplifier (TIA) optimized for GPON fiber optic applications.

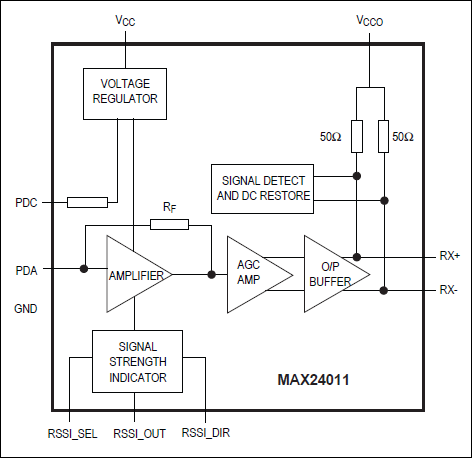

The MAX24011 implements a complete analog front-end, converting the photo-detector current to a differential analog voltage signal.

The MAX24011 has a low-noise front-end, an AGC and typical differential transimpedance of 23kΩ. The MAX24011 also provides a filtered bias current to the photo detector cathode for internally biased PIN applications and a received signal strength indicator (RSSI) output. The RSSI is either derived from the current supplied by the PDC regulator, or represents the average current into the PDA pin for use with externally biased photodetectors, such as an APD.

The MAX24011 is available in die form for mounting on a header to create a ROSA when combined with suitable optics and photo-detector diode.

Applications

GPON, ONU receivers
OC-48 Transceiver Modules

Part Models: 1
1ku List Price: price unavailable

Documentation

Data Sheet 1

MAX24011: 2.5Gbps Transimpedance Amplifier Data Sheet (Rev.2) 07/24/2014

Reliability Data 1

MAX24011 Reliability Data 01/12/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX24011E/D+	0-CHIP-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
