MAX2248

PRODUCTION

1.9GHz Power Amplifier

Industry's Only DECT PA with Digital Power Control

Data Sheet (Rev. 1) Product Selection Table

Part Models: 2
1ku List Price: price unavailable

Viewing:

Overview

Frequency Range: 1880MHz–1930MHz
High +20dBm Output Power
2-Bit Digital Power Control: Four Output Levels
Low 105mA Operating Current
0.5µA Low-Power Shutdown Mode Current
+2.7V to +5V Single-Supply Operation
Small 3mm x 3mm, 16-Pin TQFN Package

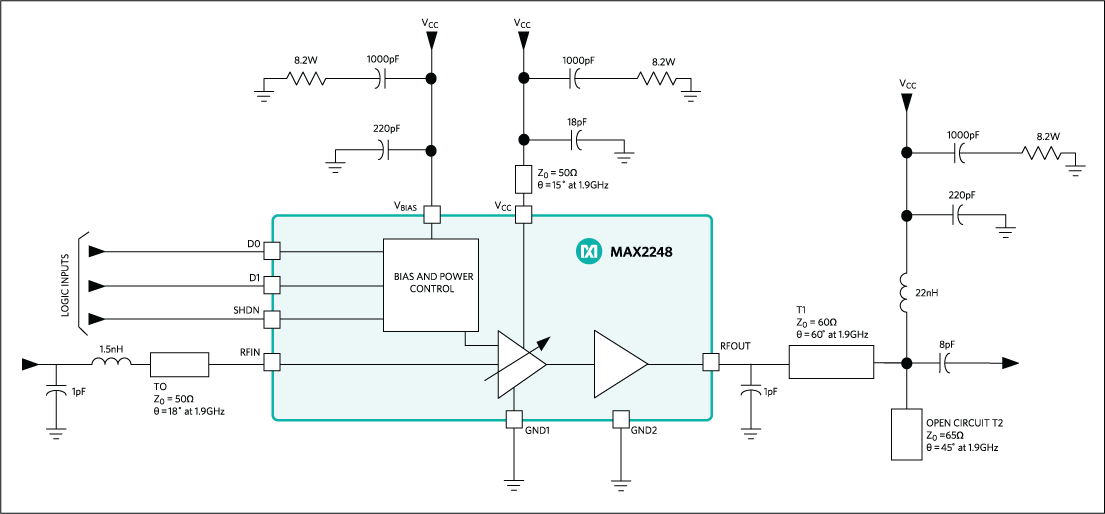

The MAX2248 single-supply, low-voltage power amplifier (PA) IC is designed specifically for applications in the 1880MHz to 1930MHz frequency band. The PA provides a +20dBm (100mW) output power in the highest power mode.

The PA includes a digital power control circuit to greatly simplify control of the output power. Four digitally controlled output power levels are provided: from +4dBm to +20dBm. A digital input controls the active or shutdown operating modes of the PA. In the shutdown mode, the current reduces to 0.5µA.

The MAX2248 integrates the RF input and inter-stage matching to simplify application of the IC. Temperature and supply-independent biasing are also included to provide stable performance under all operating conditions.

The IC operates from a +2.7V to +5V single-supply voltage. No negative bias voltage is required. Current consumption is a modest 105mA at the highest power level.

This part is packaged in a 3mm x 3mm, 16-pin TQFN.

Applications

1.9GHz DECT (Cordless Phones and Wireless Headsets)

Part Models: 2
1ku List Price: price unavailable

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX2248ETE+	16-LFCSP-3X3X0.75	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX2248ETE+T	16-LFCSP-3X3X0.75	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Apr 27, 2024 - 2400 ASSEMBLY
		pcn_2400
MAX2248ETE+	PRODUCTION
MAX2248ETE+T	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

IBIS Model 1

MAX2248 IBIS Model

S-Parameter 1

MAX2248 S-Parameter File S-Parameters

Evaluation Kits

Evaluation Kit for the MAX2248

Buy Now View Details

Features and Benefits

Easy Evaluation of the MAX2248
+2.7V to +5V Single-Supply Operation
RF Output Matched for operation from 1880MHz to 1930MHz.
Jumpers for Digital Power Control and Shutdown
All Critical Peripheral Components Included

Product Details

The MAX2248 evaluation kit (EVkit) simplifies evaluation of the MAX2248 power amplifier (PA). It enables testing of the device’s RF performance and requires no additional support circuitry. The EV kit’s signal inputs and outputs use SMA connectors to facilitate the connection of RF test equipment.

The MAX2248 EV kit is assembled with a MAX2248 and incorporates output-matching components optimized for 1880MHz to 1930MHz.

Applications

1.9GHz DECT (Cordless Phones, Wireless Headsets)

Resources

MAX2248EVKIT Gerber File - Design Files
