MAX20830

30A, 2MHz, 2.7V to 16V Integrated Step-Down Switching Regulator with PMBus

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.1)
Documentation View All Documentation
Part Models 4
1ku List Price Starting From $4.07
Features
  • High Power Density with Low Component Count
    • Compact 4.3mm x 6.55mm, 16-Pin FC2QFNPackage
    • Internal Compensation
    • Single Supply Operation with Integrated LDO for Bias Generation
  • Wide Operating Range
    • 2.7V to 16V Input Voltage Range
    • 0.4V to 5.8V Output Voltage Range
    • 500kHz to 2MHz Configurable Switching Frequency
    • -40°C to +125°C Junction Temperature Range
  • Optimized Performance and Efficiency
    • 94.5% Peak Efficiency with VDDH = 12V and VOUT = 1.8V
    • High Efficiency with Optional External Bias Input Supply
    • AMS to Improve Load-Transient Response
    • Differential Remote Sense
  • PMBus Interface
    • Adaptive Voltage Scaling of 0.4V to 0.8VReference Range
    • PMBus Telemetry of Output Current, Output Voltage, Input Voltage, and Junction Temperature
Additional Details
show more Icon

The MAX20830/MAX20830T are fully integrated, highly efficient, step-down DC-DC switching regulators with a PMBus interface. The devices operate from 2.7V to 16V input supplies, and the output can be adjusted from 0.4V to 5.8V, delivering up to 30A of load current.

The switching frequency of the devices can be configured from 500kHz to 2MHz to provide the capability of optimizing the design in terms of size and performance.

The MAX20830/MAX20830T utilize fixed frequency, current-mode control with internal compensation. The ICs feature a selectable advanced modulation scheme (AMS) to provide improved performance during fast load transients. Operation settings and configurable features can be selected by connecting pin-strap resistors from the PGM_ pins to ground or using PMBus commands.

The MAX20830/MAX20830T have an internal 1.8V LDO output to power the gate drives (VCC) and internal circuitry (AVDD). The devices also have an optional LDO input pin (LDOIN), allowing connection from a 2.5V to 5.5V bias input supply for optimized efficiency.

The IC has multiple protections including positive and negative overcurrent protection, output overvoltage protection, and overtemperature protection to ensure robust design.

The devices are available in 4.3mm x 6.55mm FC2QFN packages that support -40°C to +125°C junction temperature operation. The MAX20830 package has an open top, and the MAX20830T package has a closed top. The MAX20830/MAX20830T are footprint compatible with the MAX20840T, MAX20810, and MAX20815.

Show More Arrow image
file View Data Sheet (Rev.1)
Documentation View All Documentation
Part Models 4
1ku List Price Starting From $4.07
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

MAX20830

Documentation

2
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • All
    TickIcon
  • English
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

PDF

UPDATED 01/19/2024
English

MAX20830: 30A, 2MHz, 2.7V to 16V Integrated Step-Down Switching Regulator with PMBus Data Sheet (Rev.1)

Open PDF File

redirect
1.32 M
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 05/23/2024
English
MAX20830/MAX20830T PMBus Command Set User Guide (Rev.0) redirect icon

610.3 K

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX20830AFE+ 16-LFCSP-6.55X4.3X0.88 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20830AFE+T 16-LFCSP-6.55X4.3X0.88 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20830TAFE+ 16-LFCSP-6.55X4.3X0.7 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20830TAFE+T 16-LFCSP-6.55X4.3X0.7 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Software & Part Ecosystem

Evaluation Kits 2

reference details image

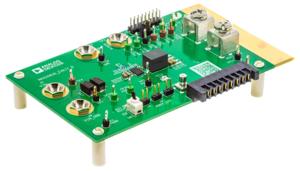

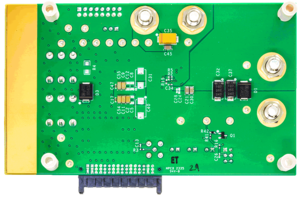

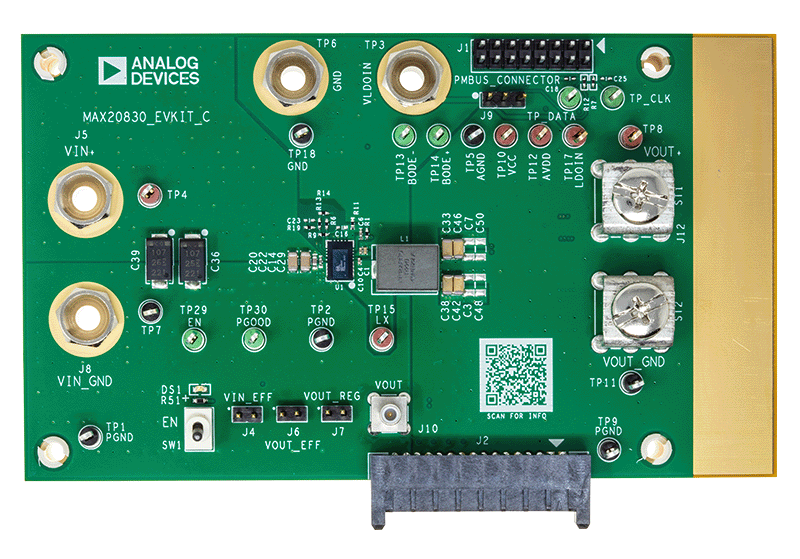

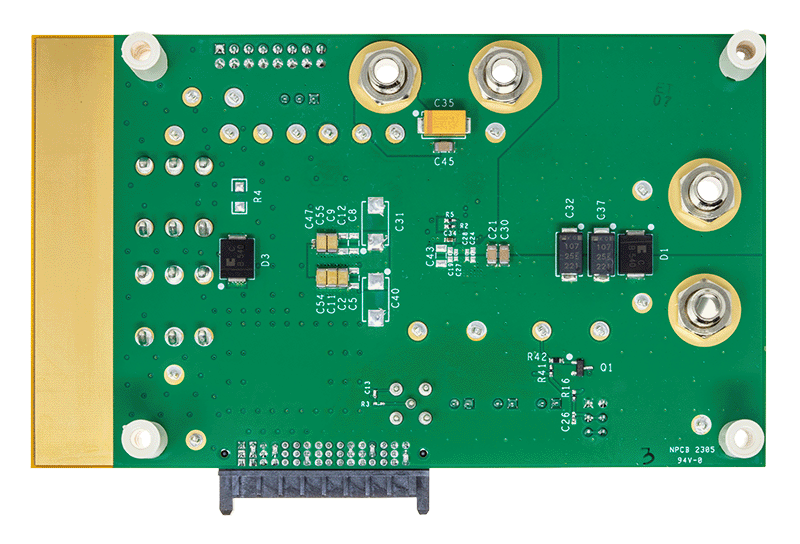

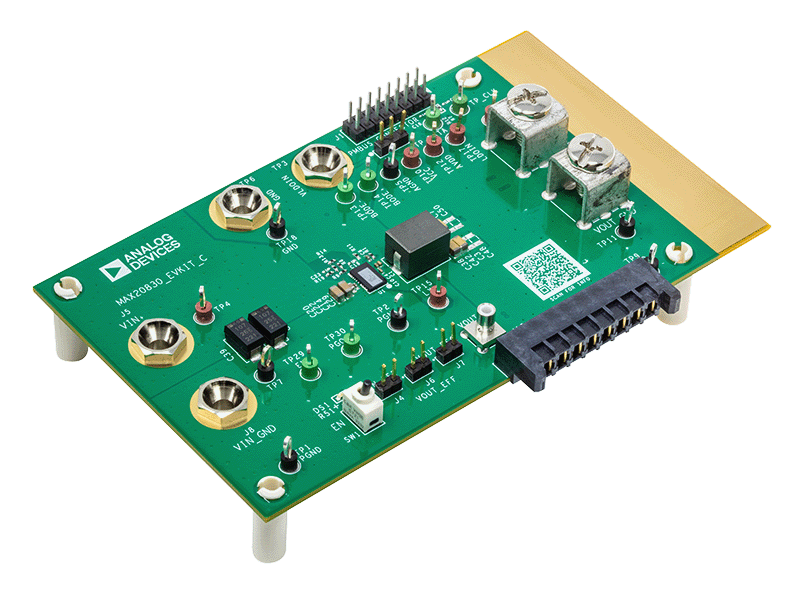

MAX20830EVKIT

MAX20830 Evaluation Board

zoom

MAX20830EVKIT

MAX20830 Evaluation Board

download icon

Download

 print icon

Print
MAX20830EVKIT
MAX20830 Evaluation Board

Features and Benefits

  • Wide 2.7V to 16V Input Voltage Range
  • 0.4V to 5.8V Output Voltage Range
  • Selectable: Switching Frequency, OCP Threshold, DEM Feature, DCM Mode, Voltage Loop Gain, and PMBus Address
  • High Efficiency and Power Density
  • Low Component Count
  • Proven PCB Layout
  • Fully Assembled and Tested for Basic Functionality
Buy Now View Details

Product Detail

The MAX20830 evaluation kit (EV kit) is a reference design platform designed for evaluation of the MAX20830/MAX20830T single-output, fully integrated, highly efficient, step-down DC-DC switching regulators with a PMBus™ interface. The MAX20830/MAX20830T have an internal 1.8V LDO output to power the gate drives (VCC) and internal circuitry (AVDD). The devices also have an optional LDO input pin (LDOIN), allowing connection from a 2.5V to 5.5V bias input supply for optimized efficiency. The EV kit is capable of delivering up to 30A to the load. The EV kit package is a fully assembled and tested multilayer PCB implementation of high efficiency and high-power density.

The selection of key converter configuration parameters acting on two external resistors allows the design flexibility to match several application scenario requirements. Refer to the MAX20830 IC data sheet for detailed information regarding the description, features, benefits, and parameters.

Resources

pdf icon

PDF

MAX20830EVKIT: MAX20830 Evaluation Kit User Guide (Rev.1) Download

1.82 M

pdf icon

PDF

MAX20830/MAX20830T PMBus Command Set User Guide (Rev.0) Download

610.3 K

Show More Arrow image
reference details image

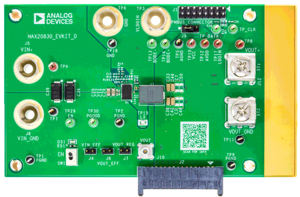

MAX20830TEVKIT
