MAX20330A

PRODUCTION

Precision HV Capable ID Detector

ID Detector with Factory Mode

Data Sheet (Rev. 0) Product Selection Table

Part Models: 2
1ku List Price: Starting From $0.92

Viewing:

Overview

Protects Battery Connected Modules with Minimum Power Consumption
- Ultra-Low Shutdown Current: 2.8μA (Typ)
- Ultra-Low ID Detection Current: 2μA (Typ)
Flexible ID Detection and Support
- Automatic and Manual ID Value Detection
- Factory Mode Detection
- Automatic Device Detection and Interrupt
ID Overvoltage Protection
- Blocking High-Voltage Input
Provides Premium Security in System Reliability
- High Input Voltage Tolerant
- Thermal Shutdown Protection
Space Saving
- 8-Bump, 0.35mm Pitch, 1.77mm x 1.03mm WLP

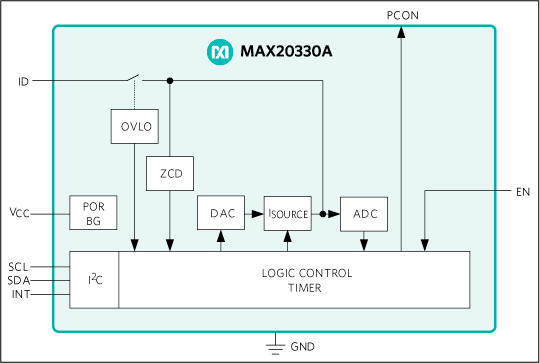

The MAX20330A is an ID detection IC that detects the ID resistor values when it is enabled. The device automatically adjusts the detection current to check the wide range of the ID resistor values while keeping the average supply current low.

The MAX20330A supports the factory mode for direct system or battery current measurement. The device protects the internal supply from the overvoltage on ID pin up to 40V.

The device is available in an 8-bump (0.35mm pitch, 1.77mm x 1.03mm) wafer-level package (WLP) and operates over the -40°C to +85°C extended temperature range.

Applications

e-Readers
Smart Phones
Tablet PCs

Part Models: 2
1ku List Price: Starting From $0.92

Documentation

Data Sheet 1

MAX20330A: Precision HV Capable ID Detector Data Sheet (Rev.0) 10/17/2018

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX20330AEWA+	8-WLCSP-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX20330AEWA+T	8-WLCSP-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits

Evaluation Kit for the MAX20330A

Buy Now View Details

Features and Benefits

USB or 3.5mm Jack ID Detection
Factory Mode Detection
Proven PCB Layout
Fully Assembled and Tested

Product Details

The MAX20330A evaluation kit (EV kit) is a fully assembled and tested circuit board that demonstrates the MAX20330A HV-capable ID detection device. The EV kit comes with the MAX20330AEWA+ installed.

Applications

e-Readers
Smart Phones
Tablet PCs
