Features and Benefits
- Versatile and Flexible Switch Configurations
- High-Speed USB Data or Audio Switch Paths
- Automatic Impedance Detection in Audio Configurations
- Full Manual Switch Control
- Beyond-the-Rails™ Signal Capability
- Overvoltage Protected Data and Audio Channels
- Two Separate OVLO Blocks
- OVLO Threshold Programmable to 3.37V, 4.00V, 4.70V, or 5.00V
- Negative Voltage Capable Audio Channel
- ±5V Audio Signals (Limited by Positive OVLO Threshold)
- -100dB THD+N
- -100dB PSRR at 217Hz
- High ESD and Surge-Protected USB Type-C Contacts
- ±12kV HBM
- ±25V Surge Capable on USB Type-C Pins
- Minimal Solution size
- 5 x 5 Array, 0.4mm Pitch 2.31mm x 2.31mm WLP

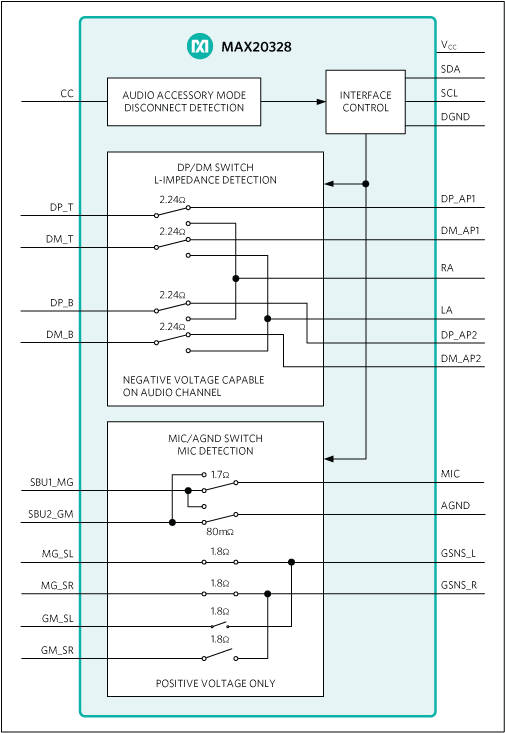

The MAX20328/MAX20328A/MAX20328B are USB Type-C audio interface ICs for use in portable devices. As USB Type-C and USB power delivery (PD) make a high-voltage charging solution readily available, the data and SBU lines are at risk of shorting to a high bus voltage, risking permanent damage to the portable device. USB 2.0 data lines also need protection when multiplexed with analog audio signals that vary from positive to negative voltages. The devices can detect a CC pin connection event to disable the microphone bias and eliminate pop up noise when an audio accessory is attached.
The MAX20328/MAX20328A/MAX20328B come in a 5 x 5 array, 25-bump, 0.4mm pitch, 2.31mm x 2.31mm wafer-level package (WLP).
- Smart Phones
- Tablet PCs
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
The MAX20328A evaluation kit (EV kit) is a fully assembled and tested circuit for evaluating theMAX20328/ MAX20328A/MAX20328B MUX switch for USB-C audio adapter applications. The device features automatic MIC-GND orientation and headphone impedance detection, Beyond-the-Rails™ signal capability, and surge protection on pins attached to the USB-C connector. This EV kit enables fast and easy evaluation of the MAX20328/ MAX20328A/MAX20328B switches in USB-C audio applications.
The EV kit is populated with MAX20328A. The MAX20328, MAX20328A, and MAX20328B are pin-to-pin and register compatible. Users can install their own MAX20328 for evaluation.
