Overview

Features and Benefits

    • High-Efficiency DC-DC Converter
    • Up to 16A Peak Output Current
      • MAX20011C: 16A
      • MAX20011D: 12A
    • Differential Remote Voltage Sensing
    • 3.0V to 5.5V Operating Supply Voltage
    • I²C Controlled Output Voltage: 0.5V to 1.275V in 6.25mV Steps
    • Excellent Load-Transient Performance
    • Programmable Compensation
    • 2.2MHz or 1.1MHz Operation
    • ±1.5% Output Voltage Accuracy
    • RESET Output
    • Current-Mode, Forced-PWM Operation
    • ASIL D Compliant:
      • Redundant Reference
      • BIST Diagnostics
      • PEC on I²C;
      • Programmable OV/UV with ±1% Accuracy
    • Overtemperature and Short-Circuit Protection
    • 3.5mm x 4mm 17-Pin Side-Wettable FC2QFN
    • -40°C to +125°C Grade 1 Automotive Temperature Range

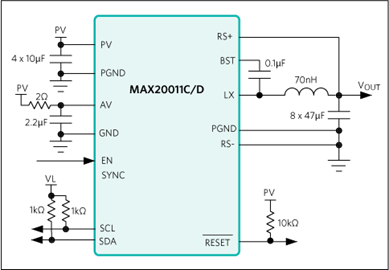

Product Details

The MAX20011C/MAX20011D is a high-efficiency, synchronous step-down converter that operates with a 3.0V to 5.5V input voltage range and supplies a 0.5V to 1.275V output voltage range. The wide input/output voltage range and the ability to provide up to 16A peak output current make this device ideal for on-board point-of-load and post-regulation applications. The MAX20011C/MAX20011D achieves ±1.5% output error over load, line, and temperature ranges.

The MAX20011C/MAX20011D features a 2.2MHz fixed-frequency PWM mode for better noise immunity and load-transient response. The 2.2MHz frequency operation allows for the use of all ceramic capacitors and minimizes external components. The spread-spectrum frequency modulation option minimizes radiated electromagnetic emissions. Integrated low RDS(ON) switches improve efficiency at heavy loads and make layout simpler than discrete solutions.

The MAX20011C/MAX20011D is offered with factory-preset output voltage. The I²C interface supports dynamic voltage adjustment with programmable slew rates. Other features include programmable soft start, overcurrent, and overtemperature protections.

Applications

  • Automotive ADAS Systems
  • SoC Core Power
