Overview

Features and Benefits

  • >90% Efficiency
  • Adjustable Output Up to 13V
  • Guaranteed 12V/120mA Output from 5V Input
  • 2.6V to 5.5V Input Range
  • LT1613 Pin Compatible
  • 0.01µA Shutdown Current
  • Programmable Soft-Start
  • Space-Saving 6-Pin SOT23 Package
  • Product Details

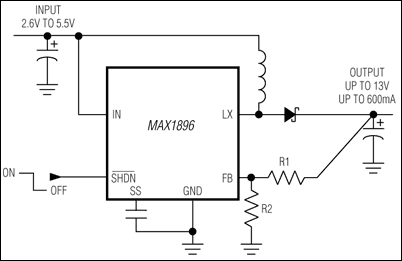

    The MAX1896 step-up DC-DC converter incorporates high-performance current-mode, fixed-frequency, pulse-width modulation (PWM) circuitry and an internal 0.7Ω N-channel MOSFET to provide a highly efficient regulator with fast response.

    High switching frequency (1.4MHz) allows fast loop response and easy filtering with small components. The MAX1896 can produce an output voltage as high as 13V from an input as low as 2.6V. Soft-start is programmable with an external capacitor, which sets the input current ramp rate. In shutdown mode, current consumption is reduced to 0.01µA.

    The MAX1896 is available in a space-saving 6-pin SOT23 package. The ultra-small package and high switching frequency allow cost and space-efficient implementations.

    Applications

    • Handheld Devices
    • LCD Displays
    • Notebook Computers
    • PCMCIA Cards
    • Portable Applications

    Product Lifecycle icon-recommended Production

    At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
