MAX1843
PRODUCTION2.7A, 1MHz, Low-Voltage, Step-Down Regulator with Internal Synchronous Rectification in TQFN Package
2.7A, 1MHz, Internal Switch Step Down Regulator
- Part Models
- 2
- 1ku List Price
- Starting From $6.69
Overview
- ±1% Output Accuracy
- Up to 1MHz Switching Frequency
- 95% Efficiency
- Internal pMOS/nMOS Switches
- 90mΩ/70mΩ On-Resistance at VIN = +4.5V
- 110mΩ/80mΩ On-Resistance at VIN = +3V

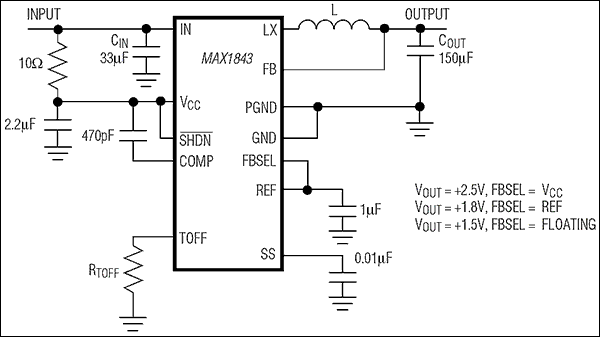

- Output Voltage
- +2.5V, +1.8V, or +1.5V Pin Selectable
- +1.1V to VIN Adjustable
- +3V to +5.5V Input Voltage Range
- 350µA Operating Supply Current
- < 1µA Shutdown Supply Current
- Programmable Constant-Off-Time Operation
- Idle Mode Operation at Light Loads
- Thermal Shutdown
- Adjustable Soft-Start Inrush Current Limiting
- 100% Duty Cycle During Low-Dropout Operation
- Output Short-Circuit Protection
- 28-Pin TQFN Package
The MAX1843 constant-off-time, pulse-width modulated (PWM) step-down DC-DC converter is ideal for use in 5V and 3.3V to low-voltage conversion necessary in notebook and subnotebook computers. This device features an internal PMOS power switch and internal synchronous rectification for high efficiency and reduced component count. An external Schottky diode is not required. The internal 90mΩ power switch and 70mΩ nMOS synchronous-rectifier switch easily deliver continuous load currents up to 2.7A. The MAX1843 produces a preset +2.5V, +1.8V, or +1.5V output voltage or an adjustable output from +1.1V to VIN. It achieves efficiencies as high as 95%.
The MAX1843 uses a unique current-mode, constant-off-time, PWM control scheme, which includes Idle Mode™ to maintain high efficiency during light-load operation. The programmable constant-off-time architecture sets switching frequencies up to 1MHz, allowing the user to optimize performance trade-offs between efficiency, output switching noise, component size, and cost. The MAX1843 features an adjustable soft-start to limit surge currents during startup, a 100% duty-cycle mode for low dropout operation, and a low-power shutdown mode that disconnects the input from the output and reduces supply current below 1µA. The MAX1843 is available in a 28-pin TQFN package with an exposed backside pad.
Applications
- 5V or 3.3V to Low-Voltage Conversion
- Chipset Supplies
- CPU I/O Ring
- Notebook and Subnotebook Computers
