MAX17682

4.5V to 42V Input, Ultra-Small, High-Efficiency, Iso-Buck DC-DC Converter

Show More showmore-icon

Reduce external components, solution size and cost for DC-DC isolation

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 2
1ku List Price Starting From $2.03
Features
  • Eliminates External Components and Reduces Total Cost
    • Synchronous Primary Operation for High Efficiency and Reduced Cost
    • All-Ceramic Capacitors, Ultra-Compact Layout
  • Reduces Number of DC-DC Regulators to Stock
    • Wide 4.5V to 42V Input Voltage Range
    • 0.9V to 92% VIN Primary Output Voltage
    • Delivers up to 3.7A Peak Current
    • 100kHz to 500kHz Adjustable Frequency with External Synchronization
    • Available in a 20-Pin, 4mm x 4mm TQFN Package
  • Reduces Power Dissipation
    • Peak Efficiency > 90%
    • Shutdown Current = 2.8µA (typ)
  • Operates Reliably in Adverse Industrial Environments
    • Hiccup-Mode Current Limit, Sink Current Limit, and Auto-Retry Startup
    • Programmable EN/UVLO Threshold
    • Adjustable Soft-Start
    • High Industrial -40°C to +125°C Ambient Operating Temperature Range
    • -40°C to +150°C Junction Temperature Range
Additional Details
show more Icon

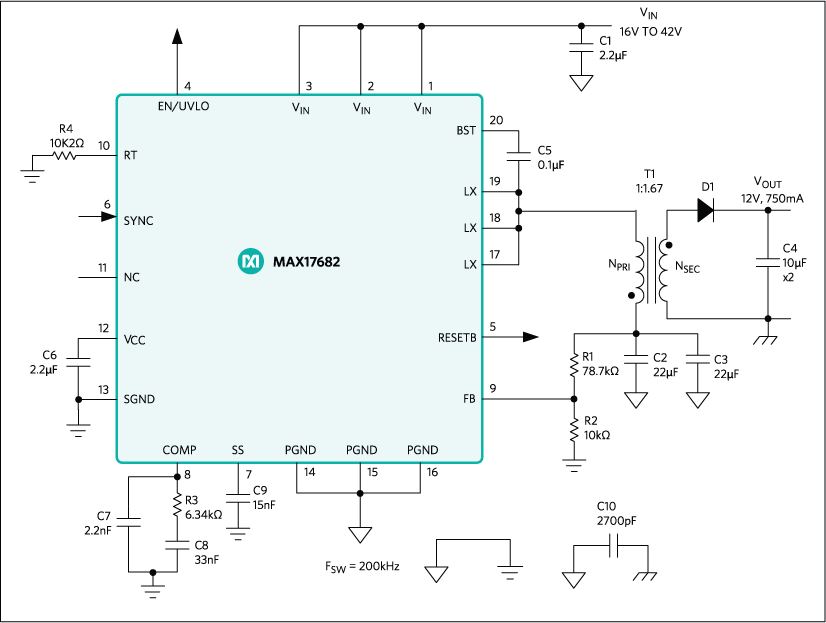

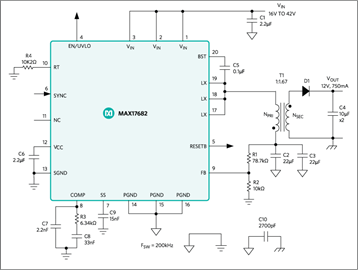

The MAX17682 is a high-voltage, high-efficiency, iso-buck DC-DC converter designed to provide isolated power up to 10W. The device operates over a wide 4.5V to 42V input voltage range and uses primary-side feedback to regulate the output voltage. It delivers primary peak current up to 3.7A and regulates primary output voltage to within ±1.2% over -40°C to +125°C.

The device features peak-current-mode control with pulse-width modulation (PWM) scheme. The low-resistance, on-chip MOSFETs ensure high efficiency at full load and simplify the layout.

A programmable soft-start feature allows users to reduce input inrush current. The device also incorporates an output enable/undervoltage lockout pin (EN/UVLO) that allows the user to turn on the part at the desired inputvoltage level. An open-drain, active-low RESETB pin provides a delayed power-good signal to the system upon achieving successful regulation of the primary output voltage.

The device operates over the -40°C to +125°C industrial temperature range and is available in a compact 20-pin (4mm x 4mm) TQFN package. Simulation models are available.
