MAX16904

2.1MHz, High-Voltage, 600mA Mini-Buck Converter

Show More showmore-icon

600mA Automotive Buck Converter Integrates High-Side and Low-Side FETs and Uses Only 25µA Quiescent Current

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.15)
Documentation View All Documentation
SIMPLIS Models MAX16904 SIMPLIS Schematic Download 406.84KB
Part Models 32
1ku List Price Starting From $4.26
Features
  • Wide +3.5V to +28V Input Voltage Range
  • Tolerates Input Voltage Transients to +42V
  • 600mA Minimum Output Current with Overcurrent Protection
  • Fixed Output Voltages (See the Selector Guide in the full data sheet and Contact Factory for All Available Trimmed Output Voltage Options)
  • 2.1MHz Switching Frequency with Three Modes of Operation
    • 25µA Ultra-Low Quiescent Current SKIP Mode
    • Forced Fixed-Frequency Operation
    • External Frequency Synchronization
  • Optional Spread-Spectrum Frequency Modulation
  • Power-Good Output
  • Enable-Pin Compatible from +3.3V Logic Level to +42V
  • Thermal Shutdown Protection
  • -40°C to +125°C Automotive Temperature Range
  • 10-Pin TDFN-EP or 16-Pin TSSOP-EP Packages
  • AEC-Q100 Qualified
Additional Details
show more Icon

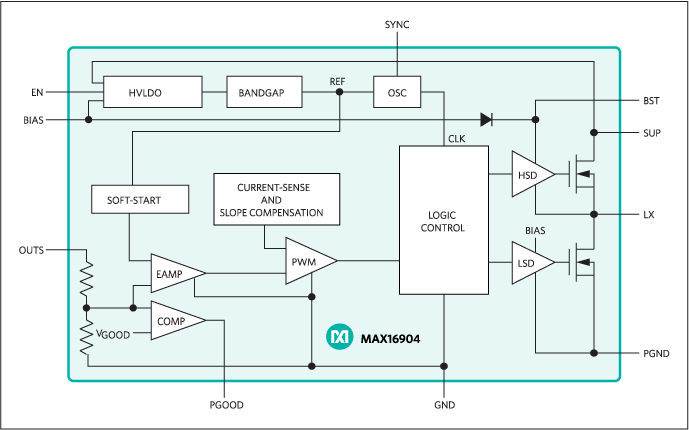

The MAX16904 is a small, synchronous buck converter with integrated high-side and low-side switches. The device is designed to deliver 600mA with input voltages from +3.5V to +28V while using only 25µA quiescent current at no load. Voltage quality can be monitored by observing the PGOOD signal. The MAX16904 can operate in dropout by running at 97% duty cycle, making it ideal for automotive and industrial applications.

The MAX16904 operates at a 2.1MHz frequency, allowing for small external components and reduced output ripple. It guarantees no AM band interference. SYNC input programmability enables three frequency modes for optimized performance: forced fixed-frequency operation, SKIP mode (ultra-low quiescent current of 25µA), and synchronization to an external clock. The MAX16904 can be ordered with spread-spectrum frequency modulation, designed to minimize EMI-radiated emissions due to the modulation frequency.

The MAX16904 is available in a thermally enhanced, 3mm x 3mm, 10-pin TDFN package or a 16-pin TSSOP package. The MAX16904 operates over the -40°C to +125°C automotive temperature range.

Applications

  • Automotive
  • High-Voltage Input-Power DC-DC Applications
  • Industrial
  • Military
