MAX16425A

25A, 4.5V to 16V, Integrated, Step-Down Switching Regulator with Selectable Applications Configurations

Show More showmore-icon

Free up Space with Smallest regulator with 75% smaller package footprint

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 2
1ku List Price Starting From $3.77
Features
  • High-Efficiency Solution with External Bias Supply
    • Up to 97% Peak
    • Up to 87% Full-Load
    • Up to 96% Light-Load Efficiency at 1A with DCM Enabled
  • Wide Operating Range
    • 4.5V to 16V Input Voltage Range
    • 0.6V to 3.3V Output Voltage Range
    • 25A (max) Load Current
  • Flexible Design Allows Early PCB Definition
    • Footprint Compatible with MAX16491 (9A), VT2491 (15A), and VT2492 (25A)
    • Programmable Switching Frequency Up to 1MHz
    • Programmable Soft-Start and STAT Delay Timings
    • Programmable Reference Voltage with External Input Option
    • Programmable Positive and Negative OCP Limit
  • Advanced Architecture, Protection and Reporting Guarantees Reliable Designs
    • Analog Current or Temperature Reporting
    • Differential Remote Sense with Open-Circuit Detection
    • Fast Transient Response with Quick-PWM™ Architecture
  • Saves Board Space
    • Integrated Boost Switch
    • 27-Bump WLCSP (2.2mm x 3.8mm) Footprint
    • Operation Using Ceramic Input and Output Capacitors
Additional Details
show more Icon

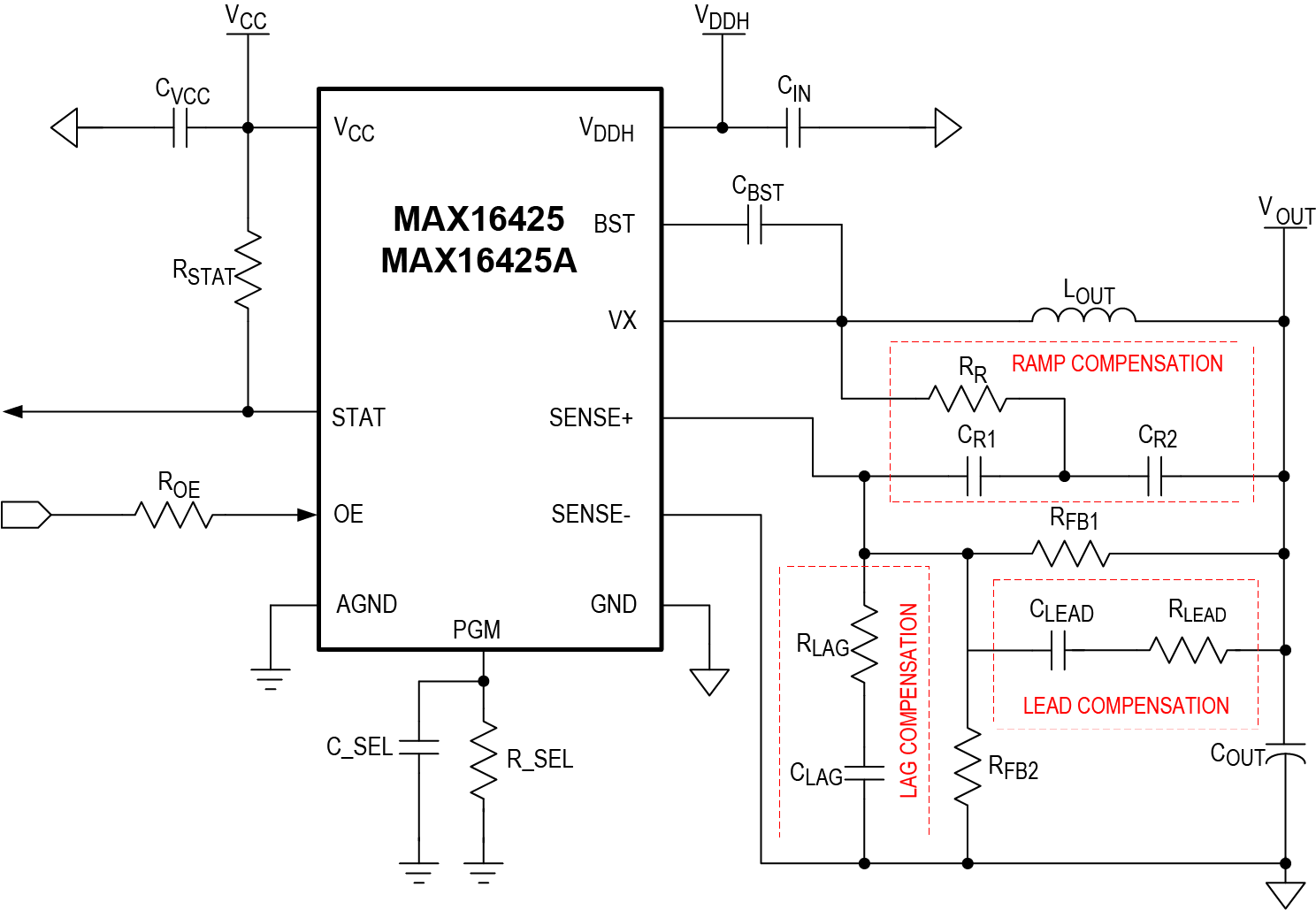

The MAX16425/MAX16425A are fully-integrated, highly efficient step-down DC-DC switching regulators. These devices operate from 4.5V to 16V input supplies, and the output can be adjusted from 0.6V to 3.3V, delivering up to 25A of load current. These single-chip regulators provide a compact high-efficiency, power-delivery solution for precision outputs that demand fast transient response

The two devices have different programmability options (see Table 3a and 3b for details) to enable a wide range of configurations. The programmable features include: internal/external reference voltage, output voltage set-point, switching frequency, overcurrent protection level (OCP), and soft-start timing. Discontinuous current mode (DCM) operation can be enabled through pin-strapping to improve light-load efficiency.

The MAX16425/MAX16425A include multiple protection and measurement features. Positive and negative cycleby- cycle OCP, short-circuit protection and overtemperature protection (OTP) ensure robust design. Input undervoltage and overvoltage lockout shut down the regulator to prevent damage when the input voltage is out of specification. Regulation is halted in case of an output overvoltage (OVP) event. A status pin indicates that the output voltage is within range and the output voltage is in regulation. The device has an analog output that can be configured to report output current or junction temperature with ±5% and ±8°C accuracy, respectively.

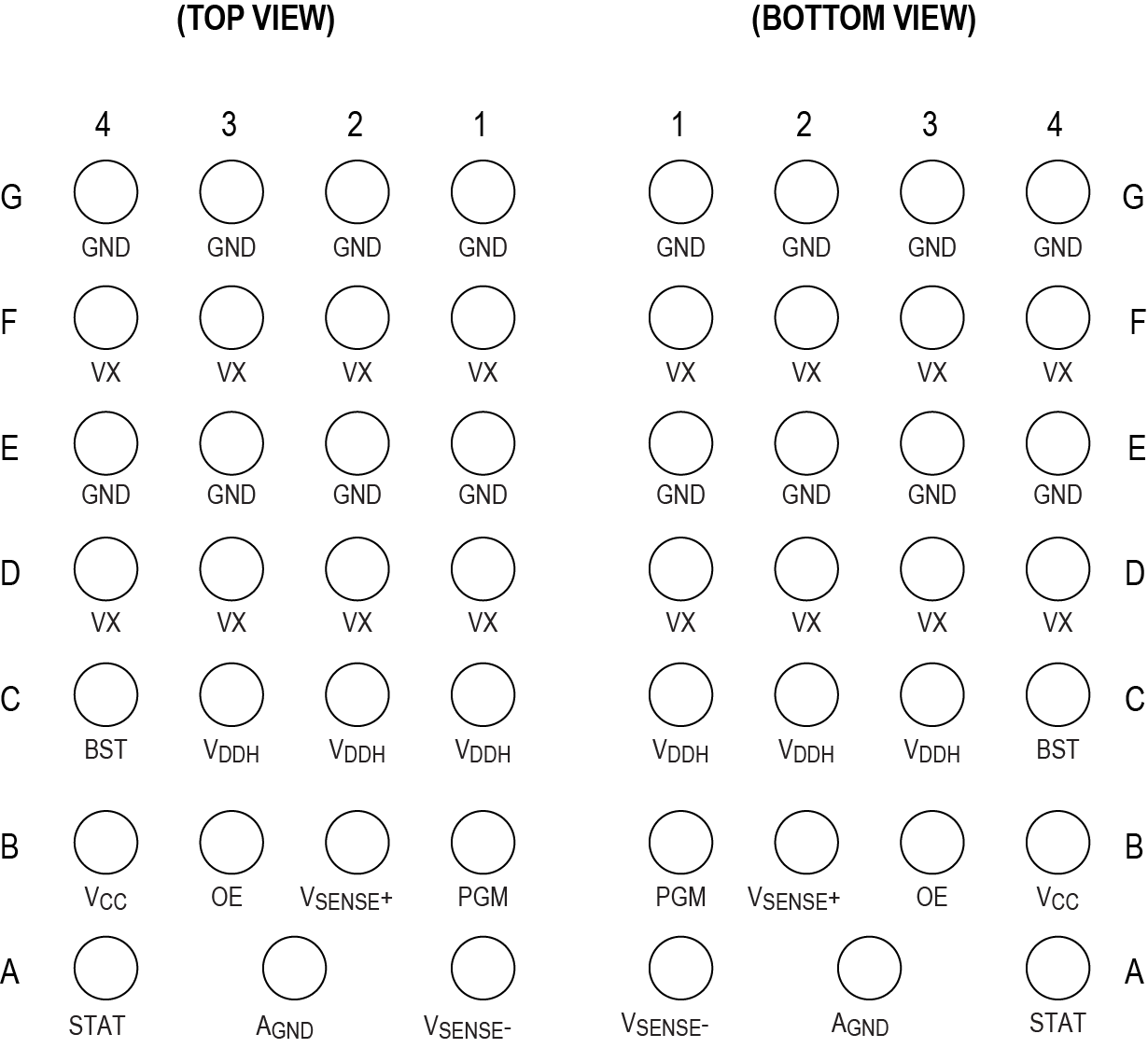

The devices are available in a 27-bump (2.2mm x 3.8mm) WLCSP package that provides low thermal resistance and minimizes the PCB area.

APPLICATIONS

  • Servers/μServers
  • I/O and Chipset Supplies
  • GPU Core Supply
  • DDR Memory: VDDQ, VPP and VTT
  • Point-of-Load (PoL) Applications
Part Models 2
1ku List Price Starting From $3.77

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX16425AGCJ+
  • HTML
  • HTML
MAX16425AGCJ+T
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 19, 2020

- 2053A

MECHANICAL DATASHEET

MAX16425AGCJ+

PRODUCTION

MAX16425AGCJ+T

PRODUCTION

May 27, 2020

- 2053

MECHANICAL DATASHEET

MAX16425AGCJ+

PRODUCTION

MAX16425AGCJ+T

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 19, 2020

- 2053A

arrow down

MECHANICAL DATASHEET

MAX16425AGCJ+

PRODUCTION

MAX16425AGCJ+T

PRODUCTION

May 27, 2020

- 2053

arrow down

MECHANICAL DATASHEET

MAX16425AGCJ+

PRODUCTION

MAX16425AGCJ+T

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

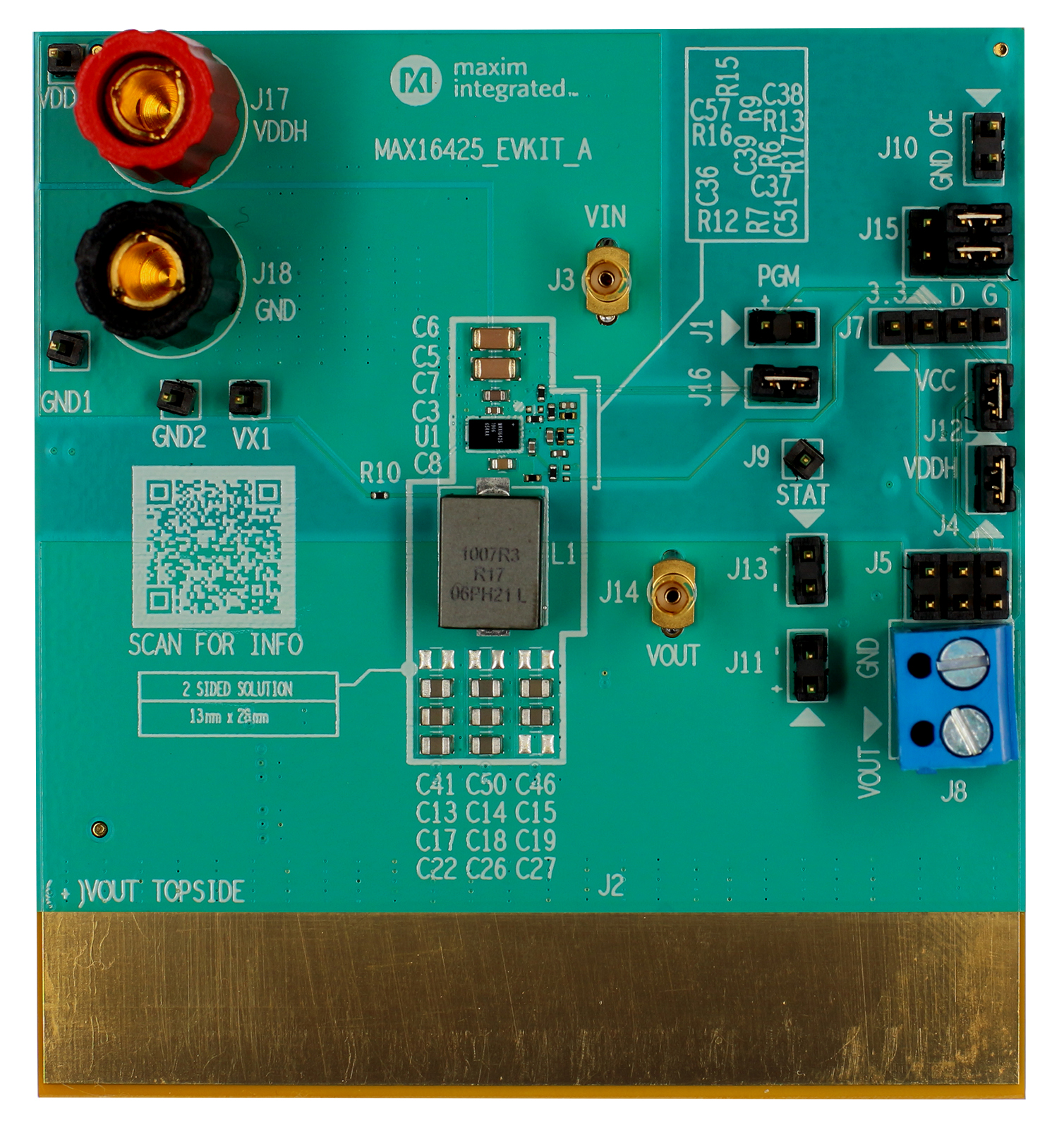

MAX16425EVKIT

Evaluation Kit for MAX16425/MAX16425A

zoom

MAX16425EVKIT

Evaluation Kit for MAX16425/MAX16425A

Evaluation Kit for MAX16425/MAX16425A

Features and Benefits

  • 4.5V to 16V Input Voltage Range
  • 0.6V to 3.3V Output Voltage Range
  • 25A Maximum Load
  • High-Efficiency Solution
    • Up to 97% Peak
    • Up to 87% Full Load
    • Up to 96% Light-Load Efficiency at 1A with DCM Enabled
  • Flexible Design allows Early PCB Definition
    • Footprint Compatible with VT2491 (15A) and Related Scalable Products
    • Programmable Switching Frequency up to 1MHz
    • Programmable Soft-Start and STAT Delay Timings
    • Programmable Reference Voltage with External Input Option
    • Programmable Positive and Negative OCP Limit
  • Advanced Architecture, Protection, and Reporting Guarantees Reliable Designs
    • Analog Current or Temperature Reporting
    • Differential Remote Sense with Open-Circuit Detection
    • Fast Transient Response with Quick-PWM™ Architecture
    • Percentage-Based Output Power Good and OVP
    • Open-Drain Status Indicator (STAT) Pin
    • Input Undervoltage and Overvoltage Lockout
    • Adaptive Dead-Time Control
  • Saves Board Space
    • Integrated Boost Switch
    • 27-Bump WLCSP (2.2mm x 3.8mm) Footprint
    • Operation Using Ceramic Input and Output Capacitors

Product Detail

The MAX16425 evaluation kit (EV kit) serves as a reference platform for evaluating the MAX16425 voltage regulator IC and the MAX16425A EV kit evaluates the MAX16425A IC. The MAX16425/MAX16425A is a single-chip, integrated switching regulator that provides a compact, highly efficient, fast, accurate, and reliable power delivery solution for low-output voltage applications. The two devices have different programmability options to enable a wide range of configurations.

The EV kit consists of a fully assembled and tested Printed Circuit Board (PCB) implementation of the MAX16425/ MAX16425A, Jumper pins, test points, and input/output connectors are included for flexibility and ease-of-use in a wide range of applications. Refer to the MAX16425 IC data sheet for more details.
