MAX16171

Ideal Diode Controller with Reverse-Current Protection

Show More showmore-icon

Fastest Reverse Polarity Protection IC to Efficiently Protect Your Automotive System

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 4
1ku List Price Starting From $1.03
Features
  • -42V to +76V Protection Range
    • ​Relaxes TVS Diodes Requirements
  • 4V to 57V Operating Range
    • Accommodates Wide Automotive Supply Rails
  • 9V Gate Drive Voltage with Respect to SRC
    • ​Reduces MOSFET Power Dissipation
  • Enable Input
    • ​Provides On-the-Fly System Control
  • 1µA Shutdown Current
    • Extends Battery Life
  • 600ns Reverse-Current Blocking Time with 10mV Overdrive
    • ​Extends System Operation Time During Power Interruption
  • -40°C to +125°C Automotive Temperature Range
  • 2mm x 3mm, Side-Wettable TDFN Package
Additional Details
show more Icon

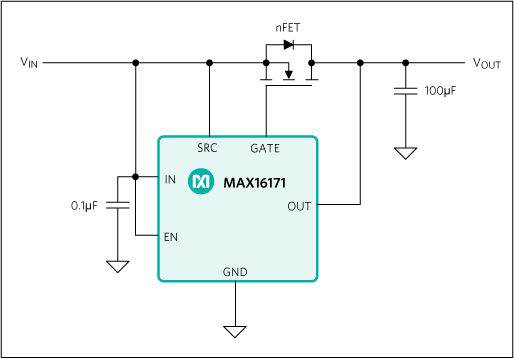

The MAX16171 is an ideal diode controller that protects the load against damaging automotive transients down to -42V and blocks reverse-current flow within 600ns. The MAX16171 operates over a wide supply voltage range of 4V to 57V and withstands input transients up to 76V. In light load applications, the device regulates the voltage drop across the external MOSFET to 20mV, allowing smooth, ring-free operation. At heavy load, the charge pump drives the gate of the external MOSFET into an enhanced mode of operation and significantly improves efficiency and power dissipation compared to traditionally used Schottky diodes.

The MAX16171 consumes only 1μA of current during shutdown mode (VEN = GND) to extend battery life while providing standby power to the load through the body diode of the external MOSFET. An internal 2.5MΩ resistor between GATE and SRC keeps the external MOSFET off when the input voltage drops below ground.

The MAX16171 is available in a tiny 2mm x 3mm x 0.75mm, 8-pin TDFN package with side-wettable flanks and operates over the -40°C to +125°C automotive temperature range.

Applications

  • Automotive Power Systems
  • Network Telecom Power Systems
  • RAID Systems
  • Redundant Power Supplies
  • Servers
Part Models 4
1ku List Price Starting From $1.03

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX16171ATA+
  • HTML
  • HTML
MAX16171ATA+T
  • HTML
  • HTML
MAX16171ATA/VY+
  • HTML
  • HTML
MAX16171ATA/VY+T
  • HTML
  • HTML
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

MAX16171EVKIT

Evaluation Kit for the MAX16171

zoom

MAX16171EVKIT

Evaluation Kit for the MAX16171

Evaluation Kit for the MAX16171

Features and Benefits

  • 4V to 57V Operating Voltage Range
  • Shutdown Mode Jumper
  • -40°C to +125°C Temperature Range
  • Lead(Pb)-Free and RoHS Compliant
  • Proven PCB Layout
  • Fully Assembled and Tested

Product Detail

The MAX16171 EV kit is designed to evaluate the MAX16171, an ideal diode controller that protects systems against reverse current and reverse voltage faults in automotive applications. The EV kit operates with a supply voltage range of 4V to 57V over the automotive temperature range of -40°C to +125°C. A jumper (J1) helps place the EV kit into low power shutdown mode. The EV kit PCB is available with the MAX16171ATA/VY+ installed.

Applications

  • Automotive Power Systems
  • Network Telecom Power Systems
  • RAID Systems
  • Redundant Power Supplies
  • Servers
Tools & Simulations

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
