MAX1606

28V Internal Switch LCD Bias Supply with True Shutdown™

LCD Bias Supply Uses Internal Switches to Deliver Up to 28V, and True Shutdown

PRODUCTION

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $2.09

Features

Adjustable Output Voltage up to 28V
20mA at 20V from a Single Li+ Battery
True Shutdown (Output Disconnected from Input)
Output Short-Circuit Protection
88% Efficiency
Up to 500kHz Switching Frequency
Selectable Inductor Current Limit (125mA, 250mA, or 500mA)
0.1µA Shutdown Current
8-Pin µMAX Package

Additional Details

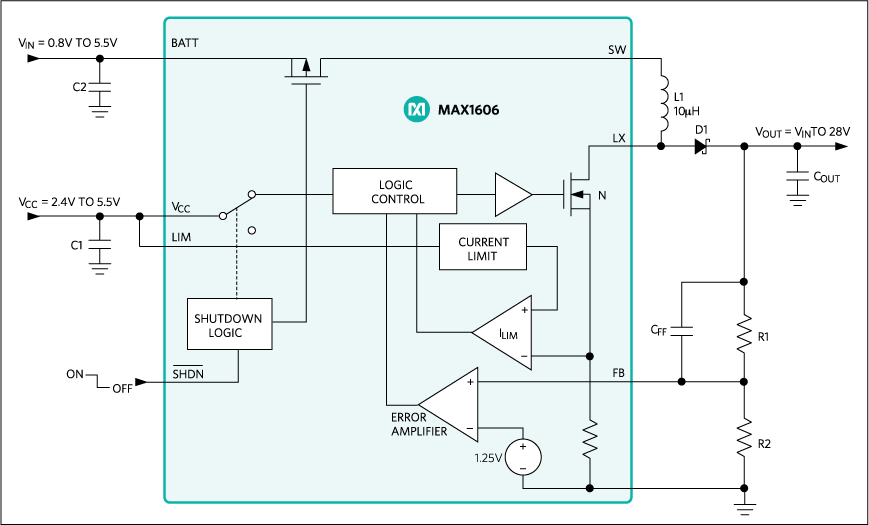

The MAX1606 is a step-up DC-DC converter that contains a 0.5A internal power switch and a 0.5A output isolation switch in an 8-pin µMAX® package. The IC operates from a 2.4V to 5.5V supply voltage but can boost battery voltages as low as 0.8V up to 28V.

The MAX1606 uses a unique control scheme that provides high efficiency over a wide range of load conditions. An internal 0.5A MOSFET reduces external component count, and a high switching frequency (up to 500kHz) allows for tiny surface-mount components. The current limit can be set to 500mA, 250mA, or 125mA, allowing the user to reduce the output ripple and component size in low-current applications.

Additional features include a low quiescent supply current and a true shutdown mode that saves power by disconnecting the output from the input. The MAX1606 is ideal for small LCD panels with low current requirements but can also be used in other applications. A MAX1606 evaluation kit is available to help speed up design time.

Applications

Cell Phones/Cordless Phones
Handy Terminals
LCD Bias Generators
Organizers
Palmtop Computers
PDAs and Other Handheld Devices

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $2.09

Technical Documents 2

MAX1606: 28V Internal Switch LCD Bias Supply with True Shutdown™ Data Sheet (Rev.1) 03/16/2004

MAX1606 Reliability Data 01/12/2023

Design Resources 2

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX1606EUA+	Micro-MAX, Thin Shrink Small-Outline	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
MAX1606EUA+T	Micro-MAX, Thin Shrink Small-Outline	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

MAX1606EUA+
Pin/Package Drawing
Micro-MAX, Thin Shrink Small-Outline
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

MAX1606EUA+T
Pin/Package Drawing
Micro-MAX, Thin Shrink Small-Outline
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

MAX1606EVKIT

Evaluation Kit for the MAX1606

MAX1606EVKIT

Evaluation Kit for the MAX1606

Features and Benefits

Input Voltage
- +0.8V to +5.5V (V_IN)
- +2.4V to +5.5V (V_CC)
Output Voltage
- +18V Output Up to 20mA (as configured)
True Shutdown (output disconnected from input)
Output Voltage Adjustable with Resistors
Adjustable Inductor Current-Limit Setting
Internal MOSFET Switches
1µA (max) IC Shutdown Current
Switching Frequency Up to 500kHz
Surface-Mount Components
Fully Assembled and Tested

Buy Now View Details

Product Detail

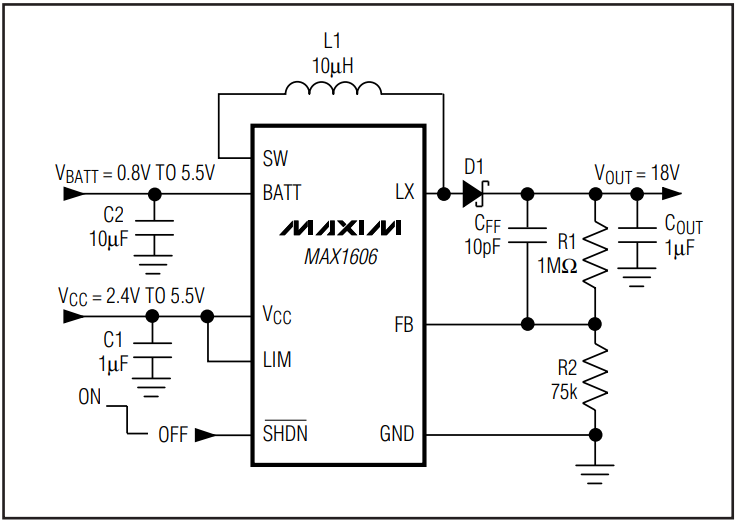

The MAX1606 evaluation kit (EV kit) is a fully assembled and tested surface-mount circuit board that contains a step-up switching converter that generates a positive voltage to drive low-power LCD displays. The circuit is configured for a +18V output voltage and provides up to 20mA. Higher output voltages are possible by selecting different components.

The IC operates from a +2.4V to +5.5V supply voltage but can boost battery voltages as low as +0.8V up to +28V at the output. The IC also offers a true shutdown mode that disconnects the output from the input. Three different inductor current limits can be evaluated with the EV kit as configured.
