MAX1513

TFT-LCD Power-Supply Controllers

TFT-LCD Power-Supply Controllers Provide Complete Power-Supply Solutions for Active-Matrix Thin-Film Transistor (TFT) Liquid-Crystal Displays (LCDs)

Viewing:

Part Details

  • 2.7V to 5.5V Input Supply Range
  • Input-Supply Undervoltage Lockout
  • Current-Mode Step-Up Controller
    • Fast Transient Response to Pulsed Load
    • High Efficiency
    • Lossless Current Sensing
    • 430kHz/750kHz/1.5MHz Switching Frequency
  • Linear-Regulator Controllers for VGON, VGOFF
  • Linear-Regulator Controller for Logic Supply
  • High-Performance Buffer Amplifier (MAX1513 Only)
  • Additional Linear-Regulator Controller (MAX1513 Only)
  • Power-Up Sequence and VGON Delay Control
  • VMAIN, VGON, VGOFF, VGAMMA Shutdown Control
  • Timer-Delay Fault Latch for All Outputs
  • Thermal-Overload Protection
MAX1513
TFT-LCD Power-Supply Controllers

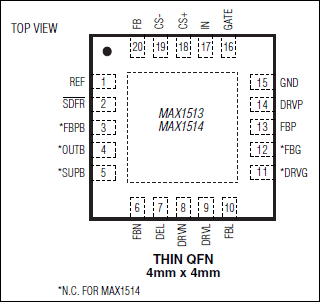

MAX1513, MAX1514: Pin Configuration
