MAX14815
Octal 5-Level Pulser with T/R Switch and Embedded Beamforming
Show More
Industry's first Octal 5 level Pulser with Beamforming Simplifies Design and Saves Power in Portable Ultrasound System
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- Optimized for Compact and Portable Applications
- High-Density, Eight-Channel 5-Level Pulser in a 68-Pin, 10mm x 10mm TQFN Package
- Integrated Low-Power, Low-Noise Active T/R Switches
- DirectDrive® Architecture Eliminates External Floating Power Supply (FPS) and HV Signal Capacitors
- Embedded Beam Formation Eliminates Transmit FPGA, Simplifies PCB Layout, and EasesSynchronization.
- Flexibility
- Supports Receive Multiplexing
- Can Use Internal/External Beamforming Resources
- Embedded Digital Resources for Beamforming
- 1K x 24 Pulse Wave Table Memory Stores up to 1024 Unique Patterns 8 Symbols Each(3 bits/symbol)
- 1.5K x 24 Line Number Memory Stores Delayand Pattern Address Information for Up to 1.5K Different Lines
- 128 x 24 Line Type Registers Store Global Line Type Information Common to All Channels
- State Machine for Delay Beam Formation with 5ns Time Resolution
- Programmable Number of Cycles and Pattern Timebase (Sample Duration)
- High Performance (Designed to Enhance Image Quality)
- Excellent -40dBc at 5MHz Second HarmonicDistortion and Pulse Inversion
- Low-Propagation Delay 14ns (typ) Ensures Excel¬lent Phase Noise for Doppler Modes and Excellent Part-to-Part Matching
- Fast Rising/Falling Edges Enable Fine Resolution PWM and Acoustic Power Control
- Low Power
- Low Quiescent Power Dissipation (4.3mW/Channel Typical)
- Programmable Current Capability for CWD and Low-Voltage Modes
- Robustness
- Thermal Warning at 110°C
- Thermal Shutdown at 150°C
- Output-Clamping Diodes to the HV Rails
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

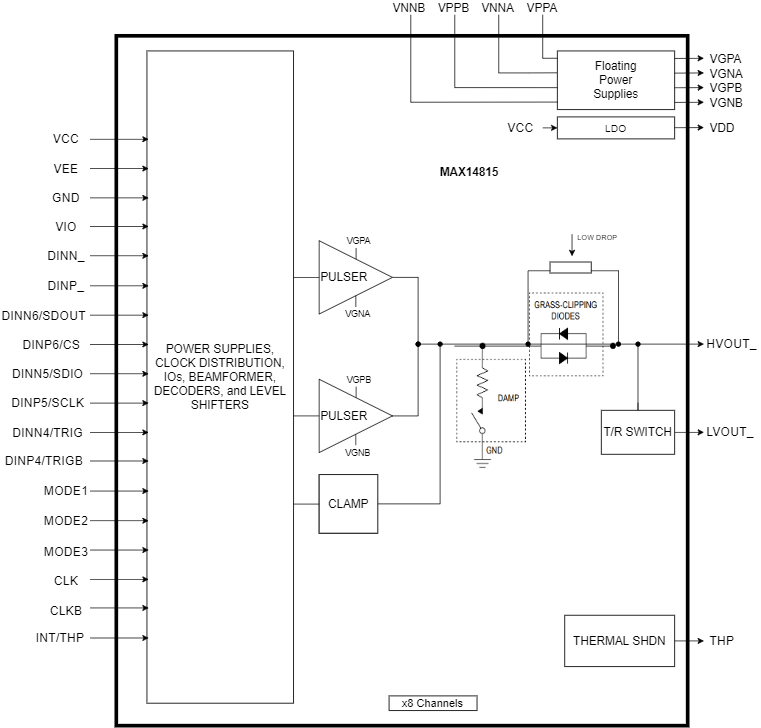

The MAX14815 is a highly integrated, octal 5-level, high-voltage ultrasound transmitter (pulser).
The pulser generates high-frequency HV bipolar pulses for driving piezoelectric transducers in ultrasound systems from two independent pairs of HV supplies. Each channel can transmit up to 200VPP with up to 2A current capability and features an integrated 2A active clamp (Return to Zero). The current capability can be programmed down to 0.4A. The pulser can be controlled using embedded digital resources (SRAM and state machine) that can be used to support transmit beamforming, resulting in dramatic savings in the number of interconnects and FPGA I/Os. The embedded digital resources are programmed via a high-speed serial interface and support sophisticated transmit techniques like PWM for burst shaping and apodization for beam shaping. Alternatively, the device can be controlled in a conventional manner by an external digital source (FPGA) through dedicated CMOS logic inputs. The MAX14815 also features eight independent low-noise, low-impedance active T/R switches. The T/R switches can be externally configured to support receive multiplexing in which a fewer number of receive channels than transmit channels are used. The MAX14815 is packaged in a 10mm x 10mm TQFN package.Applications
- HV Transducers MEMS Drivers
- Ultrasound Industrial Applications (NDT)
- Ultrasound Medical Imaging
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
MAX14815
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
All
Documentation
Video
1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| MAX14815ETK+ |
68-LFCSP-10X10X0.75
|
|
|
| MAX14815ETK+T |
68-LFCSP-10X10X0.75
|
|
- MAX14815ETK+
- Pin/Package Drawing
-
68-LFCSP-10X10X0.75
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- MAX14815ETK+T
- Pin/Package Drawing
-
68-LFCSP-10X10X0.75
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Software & Part Ecosystem
Evaluation Kits 1
MAX14815EVKIT
Evaluation Kit for the MAX14815
Features and Benefits
- Easy Evaluation of the MAX14815
- Configurable for Three-Level or Five-Level Mode
- Programmable Master Clock Frequency and Trigger
- Option for External Clock and External Trigger
- Includes 3.5mm Scope-Probe Jacks for High-Voltage Outputs
- Windows XP®, Windows 7, Windows 8.1, Windows 10-Compatible Software
- Fully Assembled and Tested
- Proven PCB Layout
- RoHS Compliant
Product Detail
The MAX14815 evaluation kit (EV kit) provides a proven design to evaluate the MAX14815 high-voltage, highfrequency, 5-level octal pulser.
The MAX14815 EV kit features an on-board USB to SPI interface, on-board high frequency clock generator, and synchronous trigger. The MAX14815 also includes Windows 7®, Windows 8.1®, and Windows 10® compatible software that provides a simple graphical user interface (GUI) to exercise the beamforming features of the IC, making it a complete PC-based evaluation platform.
