MAX14611

PRODUCTION

Quad Bidirectional Low-Voltage Logic-Level Translator

Quad-Channel Bidirectional Logic-Level Translator Is Optimized for I²C and MDIO Buses

Data Sheet (Rev. 0) Product Selection Table

Part Models: 2
1ku List Price: Starting From $1.72

Viewing:

Overview

Improved Interoperability
- Meets I²C Specifications
- 10kΩ Internal Pullup Resistor
- Pin-to-Pin Compatible with the MAX3377E and the MAX3378E
- 0.9V Operation on Low Voltage Supply
Robust Logic-Level Translation
- ±0.5V Tolerances on All Pins
- ±6kV Human Body Model ESD Protection on I/OVCC_ Lines
- Thermal Short-Circuit Protection
- Short to Ground Fault Protection on All Pins
- -40°C to +85°C Operating Temperature Range
Increased Design Flexibility
- Ultra-Low Supply Current
- Pullup Resistor Enabled with a Single Power Supply when Active-Low TS = High
- 10Ω (max) Transmission Gate FET
- Small, 14-Pin, 3.0mm x 3.0mm TDFN Package and 14-Pin, 4.9mm x 5.1mm TSSOP Package

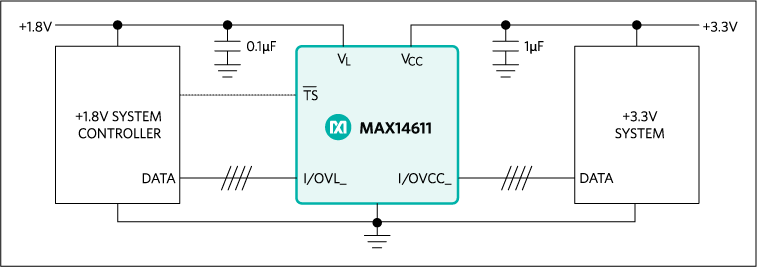

The MAX14611 is a quad bidirectional logic-level translator that provides the level shifting necessary to allow data transfer in a multivoltage system. Externally applied voltages, V_CC and V_L, set the logic levels on either side of the device. A low-voltage logic signal present on the V_L side of the device appears as a high-voltage logic signal on the V_CC side of the device, and vice-versa.

The device is ideal for I²C bus as well as MDIO bus applications where open-drain operation is often required. The device features a three-state output mode (active-low TS). Drive active-low TS high to connect the pullup to the powered I/O port. This allows for continuous, undisrupted I²C operation on the powered side of the device while the level translation function is off. The MAX14611 is a pin-to-pin compatible upgrade to the MAX3378E in the TDFN package.

The MAX14611 features enhanced high-electrostatic-discharge (ESD) protection on all I/OVCC_ ports up to ±6kV HBM. The device operates over the -40°C to +85°C extended temperature range and is available in 3mm x 3mm, 14-pin TDFN and 4.9mm x 5.1mm, 14-pin TSSOP packages.

Applications

Low-Voltage ASIC Level Translation
Mobile Phones
Portable Electronics
POS Systems
SPI, I²C, and MDIO Level Translation
Telecommunications Equipment

Part Models: 2
1ku List Price: Starting From $1.72

Documentation

Data Sheet 1

MAX14611: Quad Bidirectional Low-Voltage Logic-Level Translator Data Sheet (Rev.0) 04/20/2012

Reliability Data 1

MAX14611 Reliability Data 01/12/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX14611ETD+	Thin Dual Flatpack No Leads	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX14611ETD+T	Thin Dual Flatpack No Leads	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Apr 27, 2024 - 2400 ASSEMBLY
		pcn_2400
MAX14611ETD+	PRODUCTION
MAX14611ETD+T	PRODUCTION
Apr 27, 2024 - 2419A ASSEMBLY
		pcn_2419a
MAX14611ETD+	PRODUCTION
MAX14611ETD+T	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Evaluation Kits

Evaluation Kit for the MAX14611

Buy Now View Details

Features and Benefits

Proven PCB Layout
- Decrease Evaluation Time
Fully Assembled and Tested
On-Board Adjustable Oscillators
- Evaluate without External Function Generator
Jumper-Selectable Open-Drain and Push-Pull Buffers Enable Simple Evaluation in Either Operating Mode

Product Details

The MAX14611 evaluation kit (EV kit) is a fully assembled and tested circuit board that demonstrates the functionality of the MAX14611 quad bidirectional low-voltage logic-level translator in a 14-pin TDFN package. The highly configurable PCB enables direct evaluation of the IC through multiple jumper-selectable methods. Input power to the EV kit is provided by a Micro-USB, type-B connector, or by an external 5V power supply. On-board LDO regulators provide the appropriate voltage for each component, and potentiometers allow the user to independently adjust the power supply for either side of the level translator.
