Overview

Features and Benefits

  • Single 3.3V Operation
  • Excellent Dynamic Performance
    • 58.5dB SNR at fIN = 20MHz
    • 72dBc SFDR at fIN = 20MHz
  • Low Power
    • 62mA (Normal Operation)
    • 5µA (Shutdown Mode)
  • Fully Differential Analog Input
  • Wide 2VP-P Differential Input Voltage Range
  • 400MHz -3dB Input Bandwidth
  • On-Chip 2.048V Precision Bandgap Reference
  • CMOS-Compatible Three-State Outputs
  • 32-Pin TQFP Package
  • Evaluation Kit Available (MAX1448 EV Kit)

Product Details

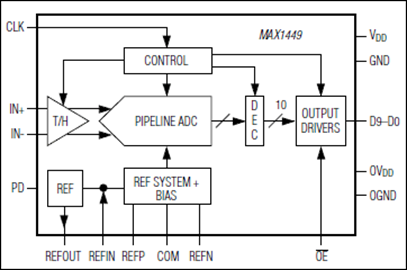

The MAX1449 3.3V, 10-bit analog-to-digital converter (ADC) features a fully differential input, a pipelined 10-stage ADC architecture with wideband track-and-hold (T/H), and digital error correction incorporating a fully differential signal path. The ADC is optimized for lowpower, high-dynamic performance in imaging and digital communications applications. The converter operates from a single 2.7V to 3.6V supply, consuming only 186mW while delivering a 58.5dB (typ) signal-to-noise ratio (SNR) at a 20MHz input frequency. The fully differential input stage has a -3dB 400MHz bandwidth and may be operated with single-ended inputs. In addition to low operating power, the MAX1449 features a 5µA power-down mode for idle periods.

An internal 2.048V precision bandgap reference is used to set the ADC's full-scale range. A flexible reference structure allows the user to supply a buffered, direct, or externally derived reference for applications requiring increased accuracy or a different input voltage range.

See a parametric table of the complete family of pin-compatible, 10-bit high-speed ADCs.

The MAX1449 has parallel, offset binary, CMOS-compatible, three-state outputs that can be operated from 1.7V to 3.6V to allow flexible interfacing. The device is available in a 5mm x 5mm 32-pin TQFP package and is specified over the extended industrial (-40°C to +85°C) temperature range.

Applications

  • Baseband and IF Digitization
  • CCD Imaging
  • Digital Set-Top Boxes
  • Ultrasound Imaging
  • Video Digitizing Applications
