Features
- Improve Measurement Quality with Excellent DC Accuracy
- 16-Bit Sigma-Delta ADC with Two Fully-Differential Input Channels
- 0.0015% INL (max) with No Missing Codes
- Minimize Power Consumption with Low-Power Dissipation
- 1.2mW (max) 3V supply
- 2μA (typ) Power-Down Current
- Lower System Cost with Integrated Functionality
- PGA with 1 to 128 Programmable Gain
- Optional Input Buffers
- > 98dB 50Hz/60Hz Rejection
- Increase System Accuracy with Built-in Self Calibration
- On-Demand Offset and Gain Self-Calibration and System Calibration
- User-Programmable Offset and Gain Registers
- Flexible Single Supply Options
- 2.7V to 3.6V (MAX1415)
- 4.75V to 5.25V (MAX1416)
- Pin Compatible Upgrades for MX7705/AD7705
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

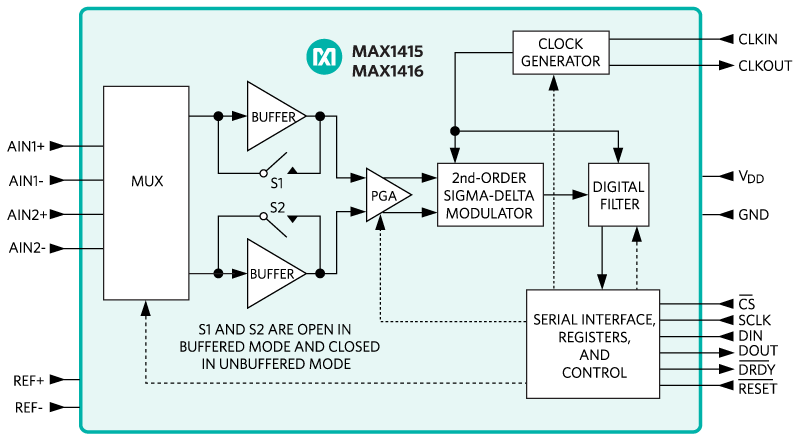

The MAX1415/MAX1416 low-power, 2-channel, serial-output analog-to-digital converters (ADCs) use a sigma-delta modulator with a digital filter to achieve 16-bit resolution with no missing codes. These ADCs are pin-compatible upgrades to the MX7705/AD7705. The MAX1415/MAX1416 feature an internal oscillator (1MHz or 2.4576MHz), an on-chip input buffer, and a programmable gain amplifier (PGA). The devices offer an SPI™-/QSPI™-/MICROWIRE™-compatible serial interface.
The MAX1415/MAX1416 are available in 16-pin PDIP, SO, and TSSOP packages.
Applications
- Flow and Gas Meters
- Industrial Instruments
- Loop-Powered Systems
- Medical Instrumentation
- Pressure Transducers
- RTD Measurements
- Strain-Gauge Measurements
- Thermocouple Measurements
- Weigh Scales
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
MAX1416
Documentation
Filters
1 Applied
-
All
-
Reliability Data
-
Data Sheet
-
Design Note
-
All
-
English
-
Chinese
-
Japanese
Data Sheet
3
Reliability Data
1
33.82K
Design Note
3
HTML
HTML
HTML
Documentation
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| MAX1416EPE+ |
Plastic Dual-In-Line, Narrow (0.3in)
|
|
|
| MAX1416EUE+ |
16-TSSOP_4.4-4.4_MM
|
|
|
| MAX1416EUE+T |
16-TSSOP_4.4-4.4_MM
|
|
|
| MAX1416EWE+ |
Small-Outline IC, Wide (0.3in)
|
|
|
| MAX1416EWE+T |
Small-Outline IC, Wide (0.3in)
|
|
- MAX1416EPE+
- Pin/Package Drawing
-
Plastic Dual-In-Line, Narrow (0.3in)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- MAX1416EUE+
- Pin/Package Drawing
-
16-TSSOP_4.4-4.4_MM
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- MAX1416EUE+T
- Pin/Package Drawing
-
16-TSSOP_4.4-4.4_MM
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- MAX1416EWE+
- Pin/Package Drawing
-
Small-Outline IC, Wide (0.3in)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- MAX1416EWE+T
- Pin/Package Drawing
-
Small-Outline IC, Wide (0.3in)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Jan 27, 2021
- 2116
ELECTRICAL DATASHEET
MAX1416EPE+
PRODUCTION
MAX1416EUE+
PRODUCTION
MAX1416EUE+T
PRODUCTION
MAX1416EWE+
PRODUCTION
MAX1416EWE+T
PRODUCTION
Dec 11, 2018
- 1754N
ASSEMBLY
MAX1416EUE+
PRODUCTION
MAX1416EUE+T
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Jan 27, 2021
- 2116
ELECTRICAL DATASHEET
MAX1416EPE+
PRODUCTION
MAX1416EUE+
PRODUCTION
MAX1416EUE+T
PRODUCTION
MAX1416EWE+
PRODUCTION
MAX1416EWE+T
PRODUCTION
Dec 11, 2018
- 1754N
ASSEMBLY
Software & Part Ecosystem
| Parts | Product Life Cycle | Description | ||
|---|---|---|---|---|
|
A/D and D/A Converter Combinations1 |
||||
|
PRODUCTION |
16-Bit, Data-Acquisition System with ADC, DACs, UPIOs, RTC, Voltage Monitors, and Temp Sensor |
|||
|
Multiplexed A/D Converters1 |
||||
|
PRODUCTION |
16-Bit, Low-Power, 2-Channel, Sigma-Delta ADC |
|||
|
Product1 |
||||
|
|
16-Bit, Data-Acquisition System with ADC, DAC, UPIOs, RTC, Voltage Monitors, and Temp Sensor |
|||
