MAX11259

24-Bit, 6-Channel, 16ksps, 6.2nV/√Hz PGA, Delta-Sigma ADC with I²C Interface

Show More showmore-icon

24-Bit Delta-Sigma ADC Offers 10x Less Power with Superior Noise Performance

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 2
1ku List Price Starting From $5.18
Features
  • High Resolution for Industrial Applications that Require a Wide Dynamic Range
    • 133dB SNR at 50sps
    • 124dB SNR at 1000sps
  • Longer Battery Life for Portable Applications
    • 2.2mA Operating Mode Current
    • 1µA Sleep Current
  • Single or Split Analog Supplies Provide Input Voltage Range Flexibility
    • 2.7V to 3.6V (Single Supply) or ±1.8V (Split Supply)
  • Enables System Integration
    • Low Noise, 6.2nV/√Hz PGA with Gains of 1, 2, 4, 8, 16, 32, 64, 128
    • 6-Channel, Fully Differential Input
  • Enables On-Demand Device and System Gain and Offset Calibration
    • User-Programmable Offset and Gain Registers
  • Robust Performance in a Small Package
    • -40°C to +125°C Operating Temperature Range
    • WLP Package, 3mm x 3mm (6 x 6 Ball Array)
Additional Details
show more Icon

The MAX11259 is a 6-channel, 24-bit delta-sigma ADC that achieves exceptional performance while consuming very low power. Sample rates up to 16ksps allow precision DC measurements. The MAX11259 communicates via an I2C-compatible serial interface and is available in a small (3mm x 3mm) WLP package.

The MAX11259 offers a 6.2nV/ noise programmable gain amplifier (PGA) with gain settings from 1x to 128x. The integrated PGA provides isolation of the signal inputs from the switched capacitor sampling network. The PGA also enables the MAX11259 to interface directly with high-impedance sources without compromising available dynamic range.

The MAX11259 operates from a single 2.7V to 3.6V analog supply, or split ±1.8V analog supplies, allowing the analog input to be sampled below ground. The digital supply range is 1.7V to 2.0V or 2.0V to 3.6V, allowing communication with 1.8V, 2.5V, 3V, or 3.3V logic.

Applications

  • Battery-Powered Instrumentation
  • Pressure Sensors
  • Wearable Electronics
  • Weigh Scales
Part Models 2
1ku List Price Starting From $5.18

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX11259AWX+
  • HTML
  • HTML
MAX11259AWX+T
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 19, 2017

- 1700

TEST

MAX11259AWX+

PRODUCTION

MAX11259AWX+T

PRODUCTION

Dec 21, 2016

- 1671A

ASSEMBLY

MAX11259AWX+T

PRODUCTION

Jul 19, 2016

- 1594_AMENDED

ASSEMBLY

MAX11259AWX+T

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 19, 2017

- 1700

arrow down

TEST

MAX11259AWX+

PRODUCTION

MAX11259AWX+T

PRODUCTION

Dec 21, 2016

- 1671A

arrow down

ASSEMBLY

MAX11259AWX+T

PRODUCTION

Jul 19, 2016

- 1594_AMENDED

arrow down

ASSEMBLY

MAX11259AWX+T

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Can't find the software or driver you need?

Request a Driver/Software
Evaluation Kit

Evaluation Kits 2

reference details image

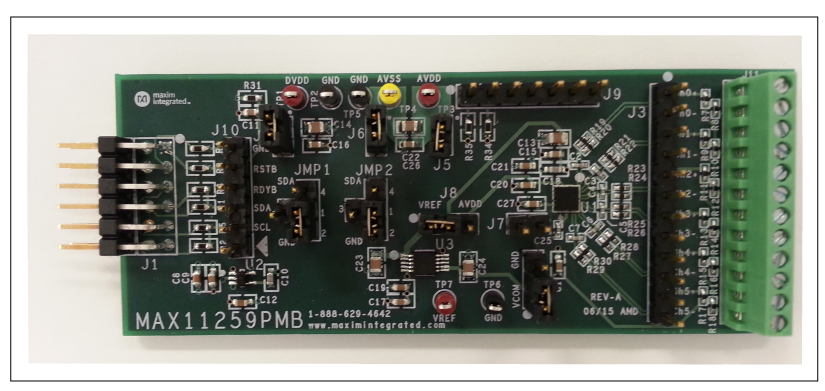

MAX11259PMB

Evaluation Kit for the MAX11259

zoom

MAX11259PMB

Evaluation Kit for the MAX11259

Evaluation Kit for the MAX11259

Features and Benefits

  • Various Sample Sizes and Sample Rates
  • Time Domain, Frequency Domain, and Histogram Plotting
  • On-Board Voltage Reference (MAX6072)
  • Proven PCB Layout
  • Fully Assembled and Tested
  • Windows XP-, Windows 7-, and Windows 8.1-Compatible Software

Product Detail

The MAX11259PMB peripheral module (Pmod™) provides the necessary hardware to interface to the MAX11259, a 24-bit, 6-channel, 64ksps, integrated PGA delta-sigma ADC to any system that utilizes Pmod-compatible expansion ports configurable for I2C communication. The peripheral module includes a graphical user interface (GUI) that provides communication from the target device to the PC through the USB2PMB2#. The peripheral module can operate in multiple modes:

  1. Using USB2PMB2# Adapter: In “standalone” mode, the peripheral module is connected to the PC via a USB2PMB2# adapter board and performs a subset of the complete peripheral module functions with limitations for sample rate, sample size, and no support for coherent sampling.

  2. User-Supplied I2C Mode: The peripheral module provides a 12-pin Pmod-style header for user-supplied I2C interface to connect the signals for SCL, SDA, RSTB, and RDYB.

The peripheral module includes Windows XP®, Windows®7, and Windows 8.1-compatible software for exercising the features of the IC. The peripheral module GUI allows different sample sizes, adjustable sampling rates, internal or external reference options, and graphing software that includes the FFT and histogram of the sampled signals.

The peripheral module can be powered by a local +3.3V supply and comes installed with a MAX11259AWX+ in a 36-bump WLP package.

Applications

  • Battery-Powered Instrumentation
  • Pressure Sensors
  • Wearable Electronics
  • Weigh Scales
reference details image

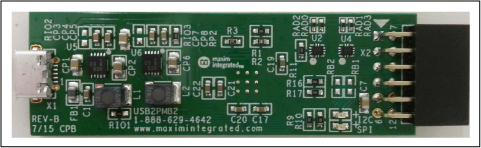

USB2PMB2

Adapter Board for the Munich (USB2PMB2#)

zoom

USB2PMB2

Adapter Board for the Munich (USB2PMB2#)

Adapter Board for the Munich (USB2PMB2#)

Features and Benefits

  • USB-to-I2C/SPI Interface
  • Small PCB Area
  • Pmod™-Compatible Form Factor

Product Detail

This document explains how the Munich (USB2PMB2#) adapter board receives commands from a laptop through the USB to create an I2C/SPI interface. Hardware design files as well as results on interfacing USB2PMB2# with MAX11300PMB1, Santa Fe (MAXREFDES5#), Campbell (MAXREFDES4#), Fresno (MAXREFDES11#), and Corona (MAXREFDES12#) are provided.

Portability has become another word for convenience. These days, almost all of us carry laptops, and this advantage can be used to showcase parts to the customers offering solutions that can cater to their needs. To have that convenience, we need to have a board that interfaces with our laptops to the signal chain electronics that are present on many of the industrial, medical, and consumer applications. This adapter board serves this purpose of being a bridge between your laptop and your I2C/SPI-enabled devices.

The Maxim USB2PMB2# board requires custom software and can be ordered together as an evaluation system (EV system). The Munich design integrates a low-power, 1.2A, PWM step-down DC-DC converter (MAX1556); a dual, high-speed, USB-to-multipurpose UART/FIFO IC (FT2232HL), high-speed USB switches, and a 4K MICROWIRE®-compatible serial EEPROM. This Munich adapter board is used to enable USB-to-I2C/SPI interface for any Pmod™-compatible plug-in peripheral modules such as the Maxim Campbell, Santa Fe, Fresno, and Corona reference designs.

Ordering information for EV systems is included in the EV kits’ corresponding data sheet. An EV system is an EV kit combined with an interface board such as a USB2PMB2# and custom software. Refer to the appropriate EV kit data sheet for quick start and detailed operating instructions. The USB2PMB2# has been tested on Windows® 7, Windows 8, and Windows XP®.

Applications

  • Industrial Automation
  • Industrial Sensors
  • Medical
  • PLCs
  • Process Control
