MAX11152

18-Bit, 500ksps, +5V Unipolar Input, SAR ADC, in Tiny 10-Pin µMAX

ADC in Industry-Standard 10-Pin Package Offers 95dB SNR

Production

Top

Overview

Features and Benefits
Product Details

Features and Benefits

High DC/AC Accuracy Improves Measurement Quality
- 18-Bit Resolution with No Missing Codes
- 500ksps Throughput Rates Without Pipeline Delay/Latency
- 95dB SNR and -106dB THD at 10kHz
- 1.65 LSB_RMS Transition Noise
- ±0.5 LSB DNL (typ) and ±2 LSB INL (typ)
Wide Supply Range Simplifies Power-Supply Design
- 5V Analog Supply
- 2.3V to 5V Digital Supply
- 23mW Power Consumption at 500ksps
- 10µA in Shutdown Mode
Multi-Industry Standard Serial Interface and Small Package Reduce Size
- SPI/QSPI^™/MICROWIRE^®/DSP-Compatible Serial Interface
- 3mm x 5mm, Tiny 10-Pin µMAX Package

Product Details

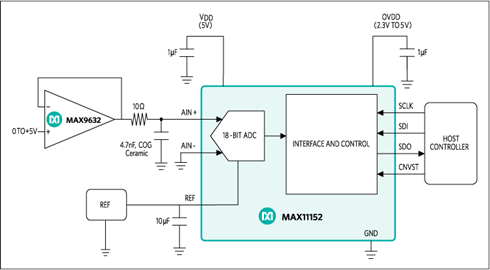

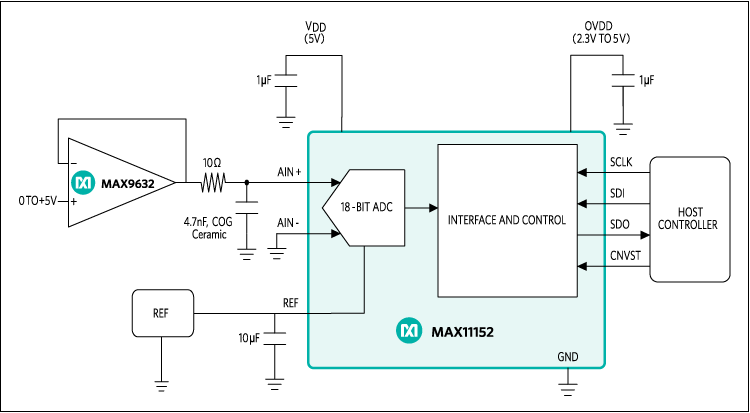

The MAX11152 is an 18-bit, 500ksps, +5V unipolar pseudo-differential input SAR ADC that offers excellent AC and DC performance in a small standard package.

This ADC typically achieves 95dB SNR, -106dB THD, and ±2 LSB INL, ±0.5 LSB DNL. The MAX11152 guarantees 18-bit no-missing codes.

The MAX11152 communicates using a SPI-compatible serial interface at 2.5V, 3V, 3.3V, or 5V logic.

The serial interface can be used to daisy-chain multiple ADCs for multichannel applications and provides a busy indicator option for simplified system synchronization and timing.

The MAX11152 is offered in a 10-pin, 3mm x 5mm, µMAX^® package and is specified over the -40°C to +85°C temperature range.

Applications

Automatic Test Equipment
Medical Instrumentation
Narrowband Receivers
Process Control and Industrial Automation
Test and Measurement

Product Categories

A/D Converters (ADC)
- Single Channel A/D Converters

Comparable Parts Click to see all in Parametric Search

Product Lifecycle Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Evaluation Kits (6)

MAX11152EVKIT

Evaluation Kit for the MAX11150/MAX11152/MAX11158/MAX11160/MAX11161 /MAX11162 /MAX11163 /MAX11168 /MAX11169

MAX11162EVKIT

Evaluation Kit for the MAX11150/MAX11152/MAX11158/MAX11160/MAX11161 /MAX11162 /MAX11163 /MAX11168 /MAX11169

MAX11168EVKIT

Evaluation Kit for the MAX11150/MAX11152/MAX11158/MAX11160/MAX11161 /MAX11162 /MAX11163 /MAX11168 /MAX11169

MAX11150EVKIT

Evaluation Kit for the MAX11150/MAX11152/MAX11158/MAX11160/MAX11161 /MAX11162 /MAX11163 /MAX11168 /MAX11169

MAX11158EVKIT

Evaluation Kit for the MAX11150/MAX11152/MAX11158/MAX11160/MAX11161 /MAX11162 /MAX11163 /MAX11168 /MAX11169

MAX11160EVKIT

Evaluation Kit for the MAX11150/MAX11152/MAX11158/MAX11160/MAX11161 /MAX11162 /MAX11163 /MAX11168 /MAX11169

MAX11152EVKIT

View Detailed Evaluation Kit Information

The evaluation kit (EV kit) demonstrates the MAX1115X/MAX1116X family of 18-/16-bit SAR ADCs. The EV kit includes a graphical user interface (GUI) that provides communication from the target device to the PC. The EV kit can operate in multiple modes:

Standalone Mode: In "standalone" mode, the EV kit is connected to the PC via a USB cable and performs a subset of the complete EV kit functions with limitation for sample rate, sample size, and no support for coherent sampling.
FPGA Mode: In "FPGA" mode, the EV kit is connected to an Avnet ZedBoard™ through a low-pin-count FMC connector. The ZedBoard features a Xilinx^® Zynq^® -7000 SoC, that connects to the PC through an Ethernet port, which allows the GUI to perform different operations with full control over mezzanine card functions. The EV kit with FPGA platform performs the complete suite of evaluation tests for the target IC.
User-Supplied SPI Mode: In addition to the USB and FMC interfaces, the EV kit provides a 12-pin PMOD- style header for user-supplied SPI interface to connect the signals for SCLKx, DINx, DOUTx, and CNVSTx.

The EV kit includes Windows XP^®-, Windows^® 7, and Windows 8.1-compatible software for exercising the features of the IC. The EV kit GUI allows different sample sizes, adjustable sampling rates, internal or external reference options (depending upon target device selected), and graphing software that includes the FFT and histogram of the sampled signals.

The ZedBoard board accepts a +12V AC-DC wall adapter. The EV kit can be powered by a local +20V supply. The EV kit has on-board transformers and digital isolators to separate the IC from the ZedBoard/on-board processor.

The MAX1115X/MAX1116X EV kit comes installed with a MAX1115XEUB+/MAX1116XEUB+ in a 10-pin µMAX^® package, but can also evaluate other pin-compatible parts in the family. For a full list of products supported by this EV kit, see Table 4.

Applications

Automatic Test Equipment
Data Acquisition Systems
Industrial Process Control
Medical Instrumentation

Features & Benefits

High-Speed USB Connector, FMC Connector, and PMOD-Style Connector
75MHz SPI Clock Capability through FMC Connector
10MHz SPI Clock Capability in Standalone Mode
Various Sample Sizes and Sample Rates (Up to 500ksps)
Collects Up to 1 Million samples (with FPGA Platform)
Time Domain, Frequency Domain, and Histogram Plotting
Sync In/Out for Coherent Sampling (with FPGA platform)
On-Board Input Buffers (MAX9632 and MAX44242)
On-Board Voltage References (MAX6126 and MAX6070)
Proven PCB Layout
Fully Assembled and Tested
Windows XP-, Windows 7-, and Windows 8.1-Compatible Software

Resources

MAX11150/52/58/60/62/68 EVKIT Gerber Files

ZIP

1.10M

MAX11162EVKIT

View Detailed Evaluation Kit Information

The evaluation kit (EV kit) demonstrates the MAX1115X/MAX1116X family of 18-/16-bit SAR ADCs. The EV kit includes a graphical user interface (GUI) that provides communication from the target device to the PC. The EV kit can operate in multiple modes:

Standalone Mode: In "standalone" mode, the EV kit is connected to the PC via a USB cable and performs a subset of the complete EV kit functions with limitation for sample rate, sample size, and no support for coherent sampling.
FPGA Mode: In "FPGA" mode, the EV kit is connected to an Avnet ZedBoard™ through a low-pin-count FMC connector. The ZedBoard features a Xilinx^® Zynq^® -7000 SoC, that connects to the PC through an Ethernet port, which allows the GUI to perform different operations with full control over mezzanine card functions. The EV kit with FPGA platform performs the complete suite of evaluation tests for the target IC.
User-Supplied SPI Mode: In addition to the USB and FMC interfaces, the EV kit provides a 12-pin PMOD- style header for user-supplied SPI interface to connect the signals for SCLKx, DINx, DOUTx, and CNVSTx.

The EV kit includes Windows XP^®-, Windows^® 7, and Windows 8.1-compatible software for exercising the features of the IC. The EV kit GUI allows different sample sizes, adjustable sampling rates, internal or external reference options (depending upon target device selected), and graphing software that includes the FFT and histogram of the sampled signals.

The ZedBoard board accepts a +12V AC-DC wall adapter. The EV kit can be powered by a local +20V supply. The EV kit has on-board transformers and digital isolators to separate the IC from the ZedBoard/on-board processor.

The MAX1115X/MAX1116X EV kit comes installed with a MAX1115XEUB+/MAX1116XEUB+ in a 10-pin µMAX^® package, but can also evaluate other pin-compatible parts in the family. For a full list of products supported by this EV kit, see Table 4.

Applications

Automatic Test Equipment
Data Acquisition Systems
Industrial Process Control
Medical Instrumentation

Features & Benefits

High-Speed USB Connector, FMC Connector, and PMOD-Style Connector
75MHz SPI Clock Capability through FMC Connector
10MHz SPI Clock Capability in Standalone Mode
Various Sample Sizes and Sample Rates (Up to 500ksps)
Collects Up to 1 Million samples (with FPGA Platform)
Time Domain, Frequency Domain, and Histogram Plotting
Sync In/Out for Coherent Sampling (with FPGA platform)
On-Board Input Buffers (MAX9632 and MAX44242)
On-Board Voltage References (MAX6126 and MAX6070)
Proven PCB Layout
Fully Assembled and Tested
Windows XP-, Windows 7-, and Windows 8.1-Compatible Software

Resources

MAX11150/52/58/60/62/68 EVKIT Gerber Files

ZIP

1.10M

MAX11168EVKIT

View Detailed Evaluation Kit Information

The evaluation kit (EV kit) demonstrates the MAX1115X/MAX1116X family of 18-/16-bit SAR ADCs. The EV kit includes a graphical user interface (GUI) that provides communication from the target device to the PC. The EV kit can operate in multiple modes:

Standalone Mode: In "standalone" mode, the EV kit is connected to the PC via a USB cable and performs a subset of the complete EV kit functions with limitation for sample rate, sample size, and no support for coherent sampling.
FPGA Mode: In "FPGA" mode, the EV kit is connected to an Avnet ZedBoard™ through a low-pin-count FMC connector. The ZedBoard features a Xilinx^® Zynq^® -7000 SoC, that connects to the PC through an Ethernet port, which allows the GUI to perform different operations with full control over mezzanine card functions. The EV kit with FPGA platform performs the complete suite of evaluation tests for the target IC.
User-Supplied SPI Mode: In addition to the USB and FMC interfaces, the EV kit provides a 12-pin PMOD- style header for user-supplied SPI interface to connect the signals for SCLKx, DINx, DOUTx, and CNVSTx.

The EV kit includes Windows XP^®-, Windows^® 7, and Windows 8.1-compatible software for exercising the features of the IC. The EV kit GUI allows different sample sizes, adjustable sampling rates, internal or external reference options (depending upon target device selected), and graphing software that includes the FFT and histogram of the sampled signals.

The ZedBoard board accepts a +12V AC-DC wall adapter. The EV kit can be powered by a local +20V supply. The EV kit has on-board transformers and digital isolators to separate the IC from the ZedBoard/on-board processor.

The MAX1115X/MAX1116X EV kit comes installed with a MAX1115XEUB+/MAX1116XEUB+ in a 10-pin µMAX^® package, but can also evaluate other pin-compatible parts in the family. For a full list of products supported by this EV kit, see Table 4.

Applications

Automatic Test Equipment
Data Acquisition Systems
Industrial Process Control
Medical Instrumentation

Features & Benefits

High-Speed USB Connector, FMC Connector, and PMOD-Style Connector
75MHz SPI Clock Capability through FMC Connector
10MHz SPI Clock Capability in Standalone Mode
Various Sample Sizes and Sample Rates (Up to 500ksps)
Collects Up to 1 Million samples (with FPGA Platform)
Time Domain, Frequency Domain, and Histogram Plotting
Sync In/Out for Coherent Sampling (with FPGA platform)
On-Board Input Buffers (MAX9632 and MAX44242)
On-Board Voltage References (MAX6126 and MAX6070)
Proven PCB Layout
Fully Assembled and Tested
Windows XP-, Windows 7-, and Windows 8.1-Compatible Software

Resources

MAX11150/52/58/60/62/68 EVKIT Gerber Files

ZIP

1.10M

MAX11150EVKIT

View Detailed Evaluation Kit Information

The evaluation kit (EV kit) demonstrates the MAX1115X/MAX1116X family of 18-/16-bit SAR ADCs. The EV kit includes a graphical user interface (GUI) that provides communication from the target device to the PC. The EV kit can operate in multiple modes:

Standalone Mode: In "standalone" mode, the EV kit is connected to the PC via a USB cable and performs a subset of the complete EV kit functions with limitation for sample rate, sample size, and no support for coherent sampling.
FPGA Mode: In "FPGA" mode, the EV kit is connected to an Avnet ZedBoard™ through a low-pin-count FMC connector. The ZedBoard features a Xilinx^® Zynq^® -7000 SoC, that connects to the PC through an Ethernet port, which allows the GUI to perform different operations with full control over mezzanine card functions. The EV kit with FPGA platform performs the complete suite of evaluation tests for the target IC.
User-Supplied SPI Mode: In addition to the USB and FMC interfaces, the EV kit provides a 12-pin PMOD- style header for user-supplied SPI interface to connect the signals for SCLKx, DINx, DOUTx, and CNVSTx.

The EV kit includes Windows XP^®-, Windows^® 7, and Windows 8.1-compatible software for exercising the features of the IC. The EV kit GUI allows different sample sizes, adjustable sampling rates, internal or external reference options (depending upon target device selected), and graphing software that includes the FFT and histogram of the sampled signals.

The ZedBoard board accepts a +12V AC-DC wall adapter. The EV kit can be powered by a local +20V supply. The EV kit has on-board transformers and digital isolators to separate the IC from the ZedBoard/on-board processor.

The MAX1115X/MAX1116X EV kit comes installed with a MAX1115XEUB+/MAX1116XEUB+ in a 10-pin µMAX^® package, but can also evaluate other pin-compatible parts in the family. For a full list of products supported by this EV kit, see Table 4.

Applications

Automatic Test Equipment
Data Acquisition Systems
Industrial Process Control
Medical Instrumentation

Features & Benefits

High-Speed USB Connector, FMC Connector, and PMOD-Style Connector
75MHz SPI Clock Capability through FMC Connector
10MHz SPI Clock Capability in Standalone Mode
Various Sample Sizes and Sample Rates (Up to 500ksps)
Collects Up to 1 Million samples (with FPGA Platform)
Time Domain, Frequency Domain, and Histogram Plotting
Sync In/Out for Coherent Sampling (with FPGA platform)
On-Board Input Buffers (MAX9632 and MAX44242)
On-Board Voltage References (MAX6126 and MAX6070)
Proven PCB Layout
Fully Assembled and Tested
Windows XP-, Windows 7-, and Windows 8.1-Compatible Software

Resources

MAX11150/52/58/60/62/68 EVKIT Gerber Files

ZIP

1.10M

MAX11158EVKIT

View Detailed Evaluation Kit Information

The evaluation kit (EV kit) demonstrates the MAX1115X/MAX1116X family of 18-/16-bit SAR ADCs. The EV kit includes a graphical user interface (GUI) that provides communication from the target device to the PC. The EV kit can operate in multiple modes:

Standalone Mode: In "standalone" mode, the EV kit is connected to the PC via a USB cable and performs a subset of the complete EV kit functions with limitation for sample rate, sample size, and no support for coherent sampling.
FPGA Mode: In "FPGA" mode, the EV kit is connected to an Avnet ZedBoard™ through a low-pin-count FMC connector. The ZedBoard features a Xilinx^® Zynq^® -7000 SoC, that connects to the PC through an Ethernet port, which allows the GUI to perform different operations with full control over mezzanine card functions. The EV kit with FPGA platform performs the complete suite of evaluation tests for the target IC.
User-Supplied SPI Mode: In addition to the USB and FMC interfaces, the EV kit provides a 12-pin PMOD- style header for user-supplied SPI interface to connect the signals for SCLKx, DINx, DOUTx, and CNVSTx.

The EV kit includes Windows XP^®-, Windows^® 7, and Windows 8.1-compatible software for exercising the features of the IC. The EV kit GUI allows different sample sizes, adjustable sampling rates, internal or external reference options (depending upon target device selected), and graphing software that includes the FFT and histogram of the sampled signals.

The ZedBoard board accepts a +12V AC-DC wall adapter. The EV kit can be powered by a local +20V supply. The EV kit has on-board transformers and digital isolators to separate the IC from the ZedBoard/on-board processor.

The MAX1115X/MAX1116X EV kit comes installed with a MAX1115XEUB+/MAX1116XEUB+ in a 10-pin µMAX^® package, but can also evaluate other pin-compatible parts in the family. For a full list of products supported by this EV kit, see Table 4.

Applications

Automatic Test Equipment
Data Acquisition Systems
Industrial Process Control
Medical Instrumentation

Features & Benefits

High-Speed USB Connector, FMC Connector, and PMOD-Style Connector
75MHz SPI Clock Capability through FMC Connector
10MHz SPI Clock Capability in Standalone Mode
Various Sample Sizes and Sample Rates (Up to 500ksps)
Collects Up to 1 Million samples (with FPGA Platform)
Time Domain, Frequency Domain, and Histogram Plotting
Sync In/Out for Coherent Sampling (with FPGA platform)
On-Board Input Buffers (MAX9632 and MAX44242)
On-Board Voltage References (MAX6126 and MAX6070)
Proven PCB Layout
Fully Assembled and Tested
Windows XP-, Windows 7-, and Windows 8.1-Compatible Software

Resources

MAX11150/52/58/60/62/68 EVKIT Gerber Files

ZIP

1.10M

MAX11160EVKIT

View Detailed Evaluation Kit Information

The evaluation kit (EV kit) demonstrates the MAX1115X/MAX1116X family of 18-/16-bit SAR ADCs. The EV kit includes a graphical user interface (GUI) that provides communication from the target device to the PC. The EV kit can operate in multiple modes:

Standalone Mode: In "standalone" mode, the EV kit is connected to the PC via a USB cable and performs a subset of the complete EV kit functions with limitation for sample rate, sample size, and no support for coherent sampling.
FPGA Mode: In "FPGA" mode, the EV kit is connected to an Avnet ZedBoard™ through a low-pin-count FMC connector. The ZedBoard features a Xilinx^® Zynq^® -7000 SoC, that connects to the PC through an Ethernet port, which allows the GUI to perform different operations with full control over mezzanine card functions. The EV kit with FPGA platform performs the complete suite of evaluation tests for the target IC.
User-Supplied SPI Mode: In addition to the USB and FMC interfaces, the EV kit provides a 12-pin PMOD- style header for user-supplied SPI interface to connect the signals for SCLKx, DINx, DOUTx, and CNVSTx.

The EV kit includes Windows XP^®-, Windows^® 7, and Windows 8.1-compatible software for exercising the features of the IC. The EV kit GUI allows different sample sizes, adjustable sampling rates, internal or external reference options (depending upon target device selected), and graphing software that includes the FFT and histogram of the sampled signals.

The ZedBoard board accepts a +12V AC-DC wall adapter. The EV kit can be powered by a local +20V supply. The EV kit has on-board transformers and digital isolators to separate the IC from the ZedBoard/on-board processor.

The MAX1115X/MAX1116X EV kit comes installed with a MAX1115XEUB+/MAX1116XEUB+ in a 10-pin µMAX^® package, but can also evaluate other pin-compatible parts in the family. For a full list of products supported by this EV kit, see Table 4.

Applications

Automatic Test Equipment
Data Acquisition Systems
Industrial Process Control
Medical Instrumentation

Features & Benefits

High-Speed USB Connector, FMC Connector, and PMOD-Style Connector
75MHz SPI Clock Capability through FMC Connector
10MHz SPI Clock Capability in Standalone Mode
Various Sample Sizes and Sample Rates (Up to 500ksps)
Collects Up to 1 Million samples (with FPGA Platform)
Time Domain, Frequency Domain, and Histogram Plotting
Sync In/Out for Coherent Sampling (with FPGA platform)
On-Board Input Buffers (MAX9632 and MAX44242)
On-Board Voltage References (MAX6126 and MAX6070)
Proven PCB Layout
Fully Assembled and Tested
Windows XP-, Windows 7-, and Windows 8.1-Compatible Software

Resources

MAX11150/52/58/60/62/68 EVKIT Gerber Files

ZIP

1.10M

Documentation & Resources

Data Sheets

MAX11152: 18-Bit, 500ksps, +5V Unipolar Input, SAR ADC, in Tiny 10-Pin µMAX Data Sheet (Rev. 2)
2/12/2015
PDF

Tools & Simulations

IBIS Models

IBS

85.47K

MAX11152 IBIS Model

Software Development

MAX1115X,6X ADCs EV Kit GUI Source Code, 1.0.0

ZIP

MAX11150/52/58/60/62/68 EVKIT Software, 1.0.0

ZIP

MAX11168 EV Kit Software, 1.0.0

ZIP

MAX1115x,6x, 1.0.0

ZIP

Product Recommendations

MAX11152 Companion Parts

Recommended Related Parts

MAX11162, MAX11163, MAX6325, MAX6126, MAX9632.

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number	Material Declaration	Reliability Data	Pin/Package Drawing	CAD Symbols, Footprints & 3D Models
MAX11152EUB+	Material Declaration	Reliability Data	10-MINI_SO-N/A	Ultra Librarian SamacSys
MAX11152EUB+T	Material Declaration	Reliability Data	10-MINI_SO-N/A	Ultra Librarian SamacSys
Wafer Fabrication Data

PCN-PDN Information

Select a model from the dropdown below to subscribe to PCN/PDN notifications and view past notifications as well.

Request Product/Process Change Notifications

Close

Save to myAnalog

Support & Discussions

Contact ADI Technical Support »

Ask your question »

Contact ADI Technical Support »

Ask your question »

Sample & Buy

Ordering FAQs

See our Ordering FAQs for answers to questions about online orders, payment options and more.

Buy Now Pricing

(**) Displayed Buy Now Price and Price Range is based on small quantity orders.

List Pricing

(*)The 1Ku list pricing shown is for BUDGETARY USE ONLY, shown in United States dollars (FOB USA per unit for the stated volume), and is subject to change. International prices may differ due to local duties, taxes, fees and exchange rates. For volume-specific price or delivery quotes, please contact your local Analog Devices, Inc. authorized distributor. Pricing displayed for Evaluation Boards and Kits is based on 1-piece pricing.

Lead Times

Please see the latest communication from our CCO regarding lead times.

Sampling

Selecting the Sample button above will redirect to the third-party ADI Sample Site. The part selected will carry over to your cart on this site once logged in. Please create a new account there if you have never used the site before. Contact SampleSupport@analog.com with any questions regarding this Sample Site.

Price Table Help

Evaluation Boards

Pricing displayed is based on 1-piece.

Up to two boards can be purchased through Analog.com. To order more than two, please purchase through one of our listed distributors.

Pricing displayed is based on 1-piece. The USA list pricing shown is for budgetary use only, shown in United States dollars (FOB USA per unit), and is subject to change. International prices may vary due to local duties, taxes, fees and exchange rates.
