Overview

Features and Benefits

  • 4-Channel Simultaneous Sampling ADC with Integrated, Fixed Gain, Differential Drivers

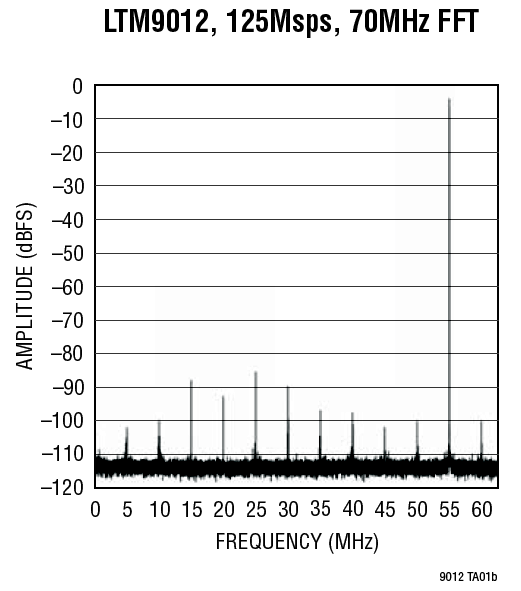

  • 68.3dB SNR
  • 78dB SFDR
  • Low Power: 1.27W Total, 318mW per Channel
  • 1.8V ADC Core and 3.3V Analog Input Supply
  • Serial LVDS Outputs: 1 or 2 Bits per Channel
  • Shutdown and Nap Modes
  • 11.25mm × 15mm BGA Package

Product Details

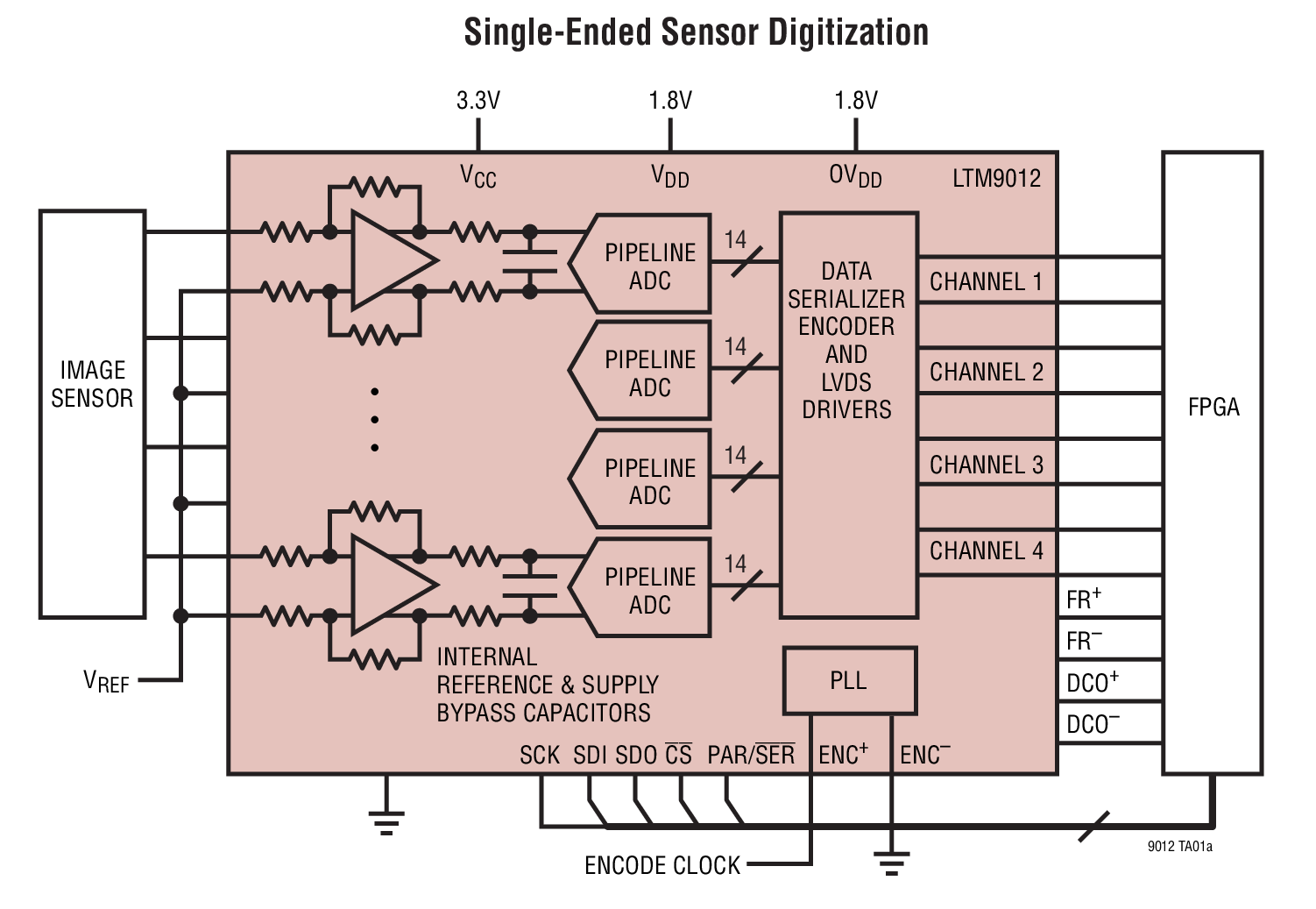

The LTM9012 is a 4-channel, simultaneous sampling 14-bit μModule® analog-to-digital converter (ADC) with integrated, fixed gain, differential ADC drivers. The low noise amplifiers are suitable for single-ended drive and pulse train signals such as imaging applications. Each channel includes a lowpass filter between the driver output and ADC input.

DC specs include ±1.2LSB INL (typ), ±0.3LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 1.2LSBRMS.

The digital outputs are serial LVDS and each channel outputs two bits at a time (2-lane mode). At lower sampling rates there is a one bit option (1-lane mode). The LVDS drivers have optional internal termination and adjustable output levels to ensure clean signal integrity.

The ENC+ and ENC– inputs may be driven differentially or single-ended with a sine wave, PECL, LVDS, TTL or CMOS inputs. An internal clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.

Applications

  • Industrial Imaging
  • Medical Imaging
  • Multichannel Data Acquisition
  • Nondestructive Testing

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-not-recommended Not Recommended for New Designs

This designates products ADI does not recommend broadly for new designs.

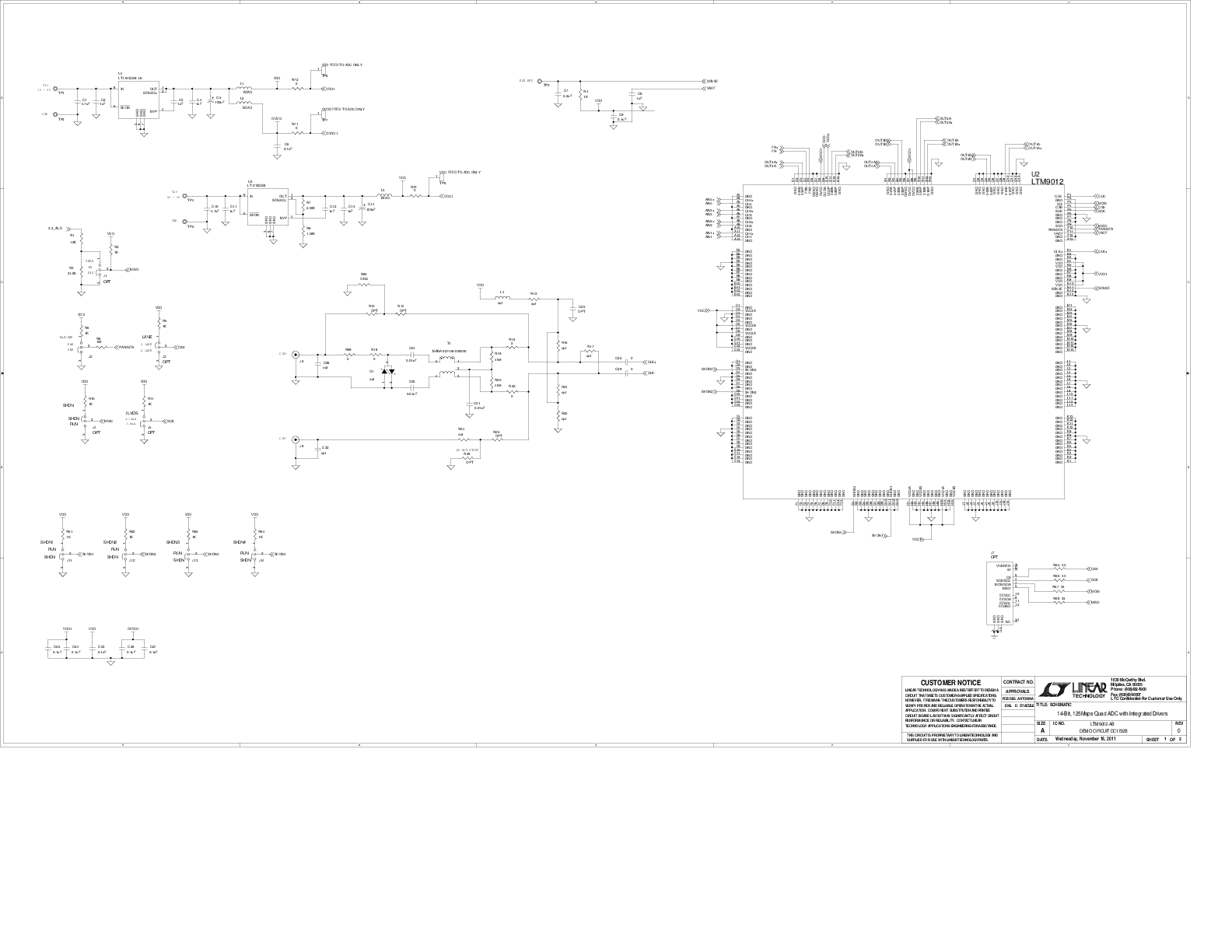

Evaluation Kits (1)

Product Recommendations

LTM9012 Companion Parts

Recommended Related Parts

Documentation & Resources

  • View All (6)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (1)
  • Informational (1)
  • Technical Articles (1)
  • Press Releases (1)
    • Document Type

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models

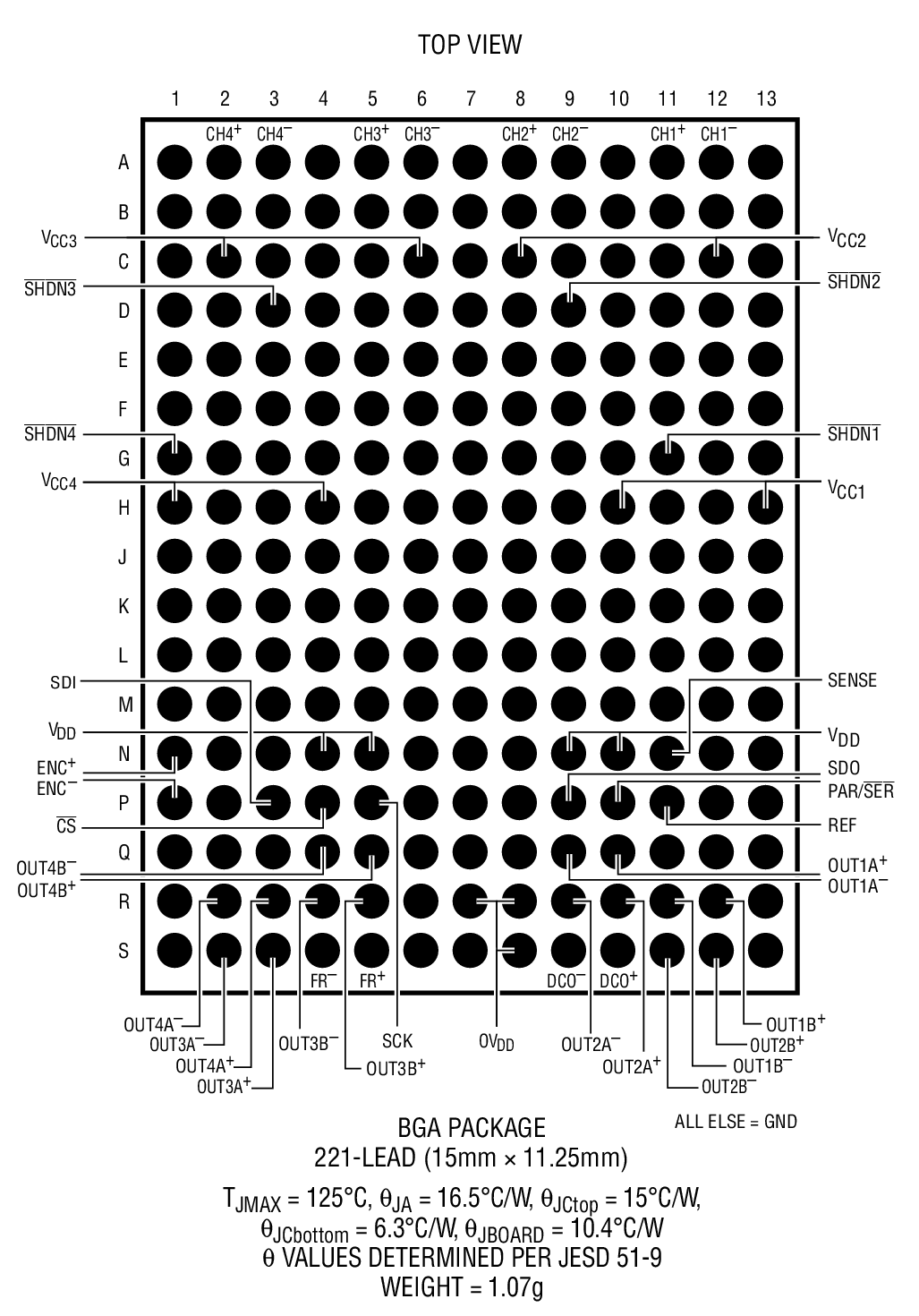

    LTM9012CY-AB#PBF Material Declaration Reliability Data 221-Lead BGA (15mm x 11.25mm x 2.82mm)
    LTM9012IY-AB#PBF Material Declaration Reliability Data 221-Lead BGA (15mm x 11.25mm x 2.82mm)
    Wafer Fabrication Data R597 Reliability Data

    PCN-PDN Information

    Select a model from the dropdown below to subscribe to PCN/PDN notifications and view past notifications as well.

    Select Model for PCN Information
    • LTM9012CY-AB#PBF Last Time Buy
    • LTM9012IY-AB#PBF Last Time Buy
