LTM4710-1

Name: LTM4710-1
Brand: Analog Devices
Price: 39.54 USD
Availability: InStock

RECOMMENDED FOR NEW DESIGNS

Low V_IN, Quad 8A Silent Switcher μModule Regulator

Data Sheet (Rev. A) Product Selection Table

Part Models: 2
1ku List Price: Starting From $39.54

Viewing:

Overview

Quad Output Step-Down μModule^® Regulator with Configurable 8A Output Array
Ultralow Noise Silent Switcher^®2 Architecture
CISPR32 Class B Compliant
Input Voltage Range: 2.5V to 5.5V
Output Voltage Range: 0.5V to 3.6V
8A DC Output Current, Each Channel

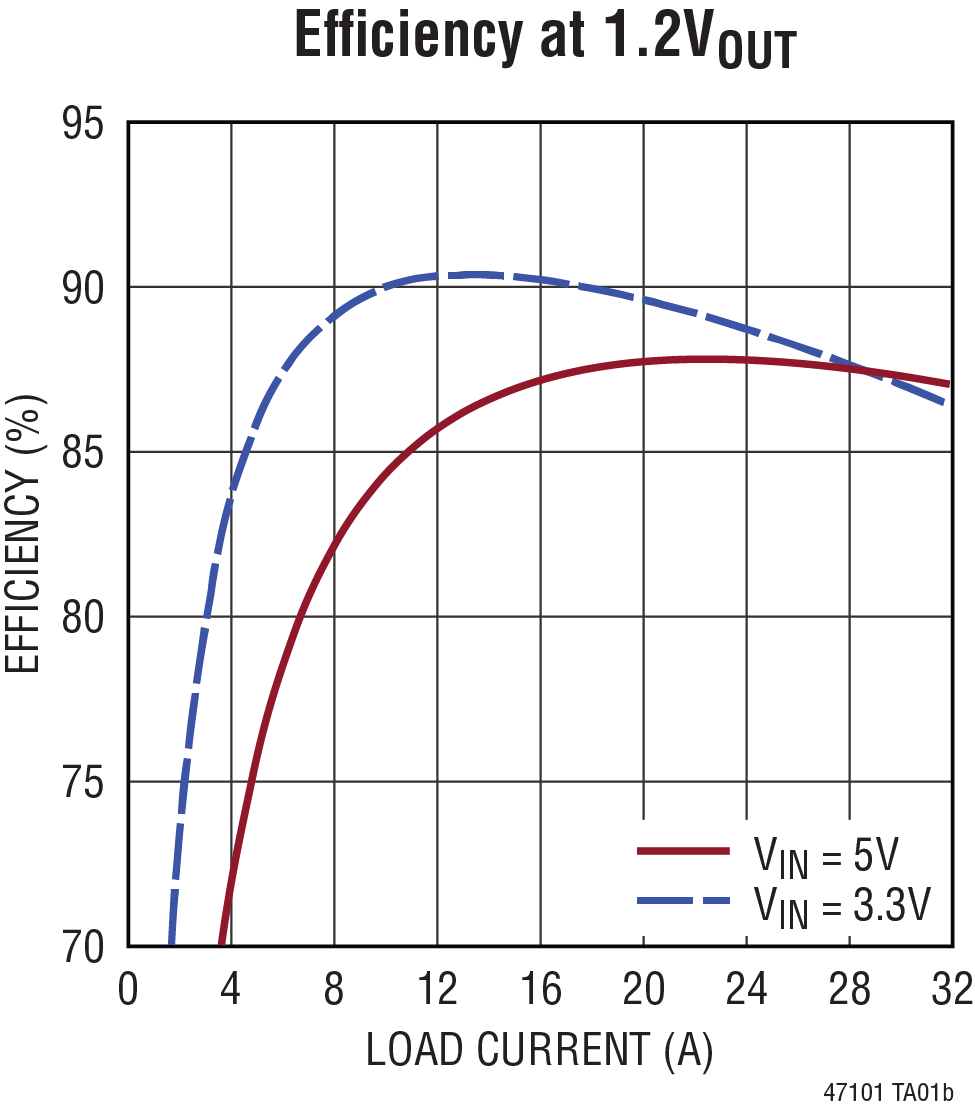

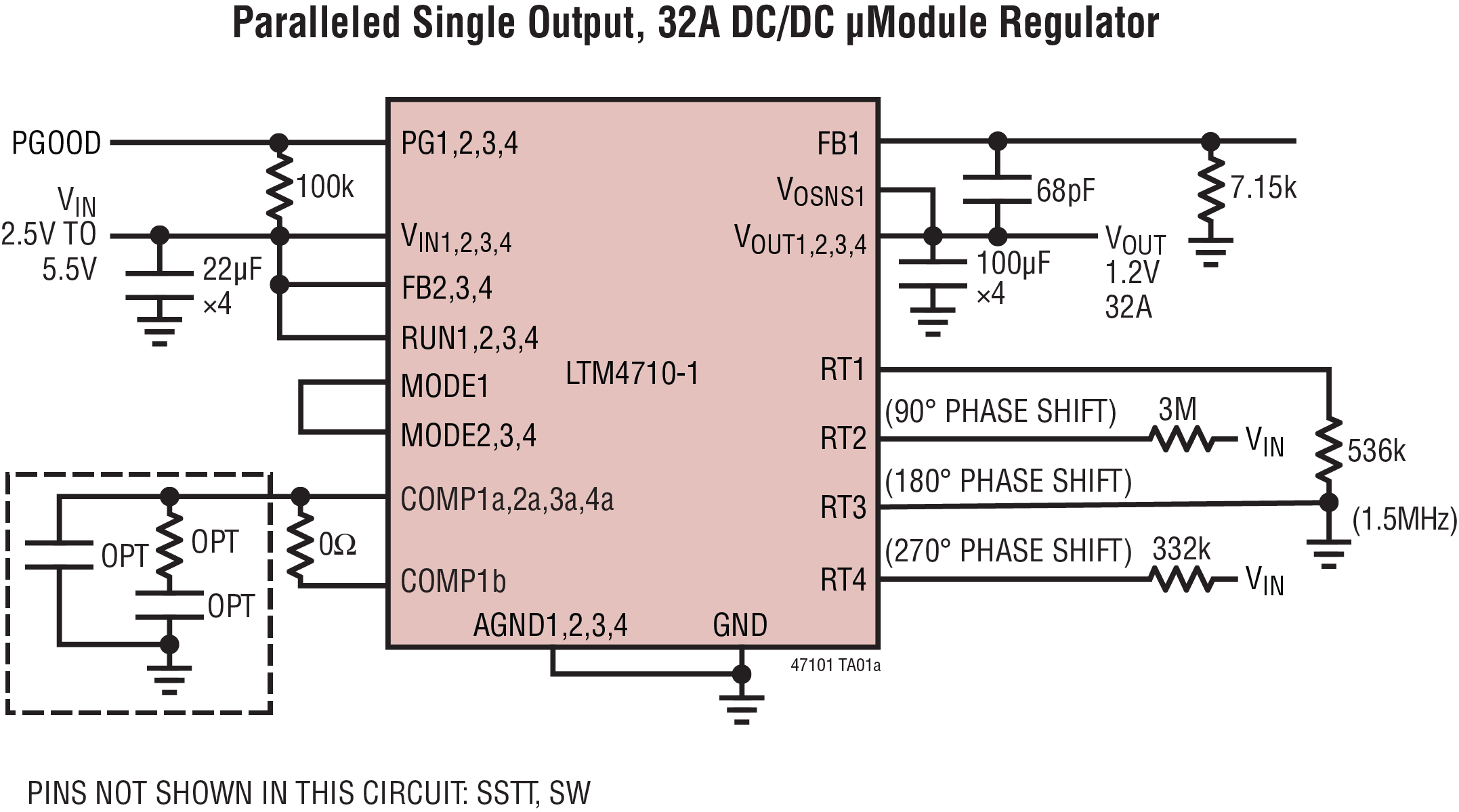

Parallelable for Higher Output Current
±1.5% Maximum Total DC Output Voltage Accuracy
Selectable Switching Frequency: 1MHz to 5MHz
Power Good Indicator
Die Temperature Monitoring

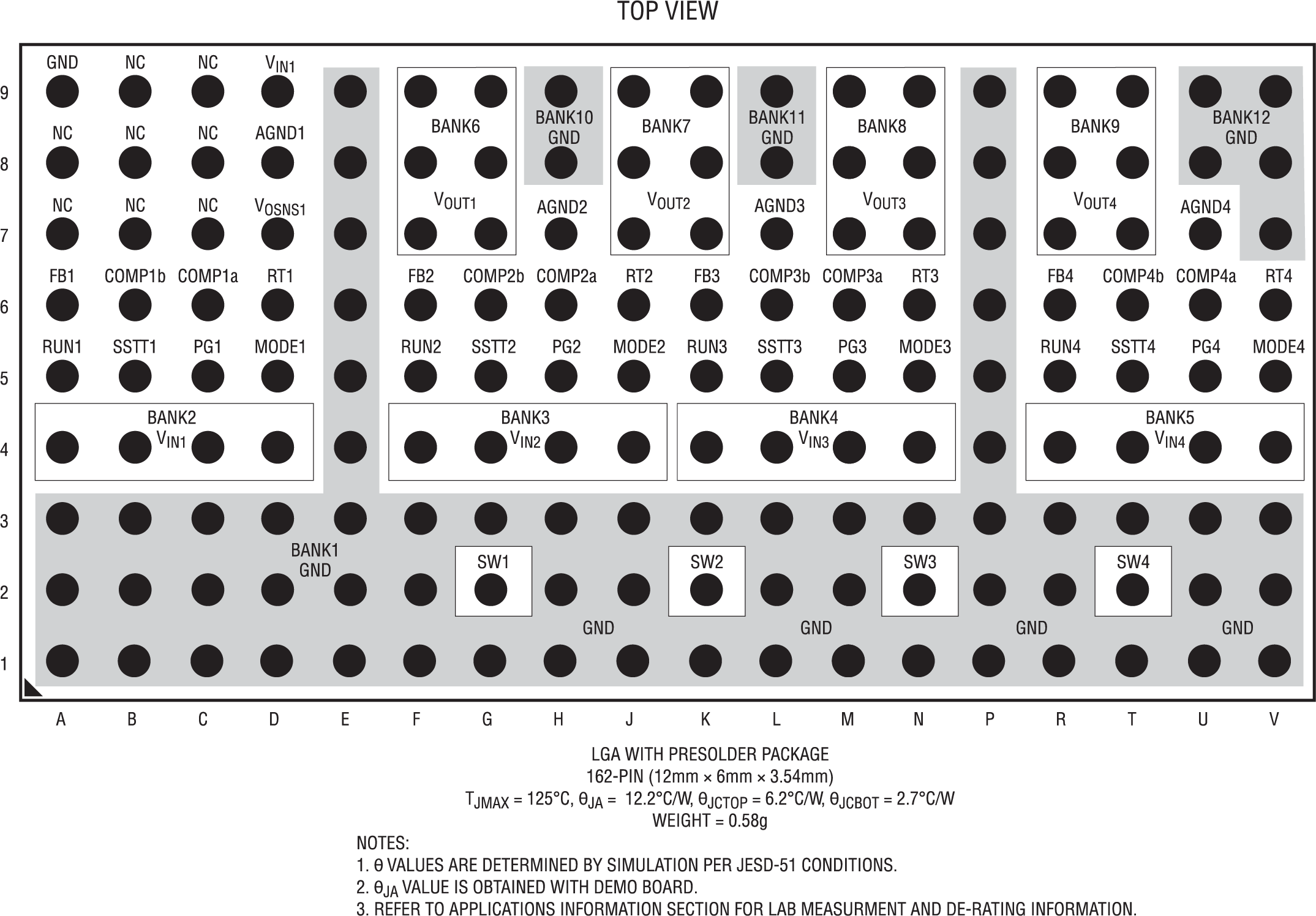

6mm × 12mm × 3.54mm Land Grid Array (LGA) with Presolder Package

Part Models: 2
1ku List Price: Starting From $39.54

Documentation

Data Sheet 1

LTM4710-1: Low V_IN, Quad 8A Silent Switcher μModule Regulator Data Sheet (Rev.A) 04/23/2024

User Guide 1

DC3164A-B - Demo Manual (Rev.0) 07/18/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTM4710EV-1#PBF	162-Lead (6mm × 12mm × 3.54mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTM4710IV-1#PBF	162-Lead (6mm × 12mm × 3.54mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice 1

LTM4710-1 - ?Module Regulators

Models for the following parts are available in LTspice:

LTM4710-1

LTpowerCAD

Design tools for the following parts are available in LTpowerCAD:

LTM4710-1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

LTM4710-1 | Low VIN, Quad 8A Silent Switcher μModule Regulator

Buy Now View Details

Product Details

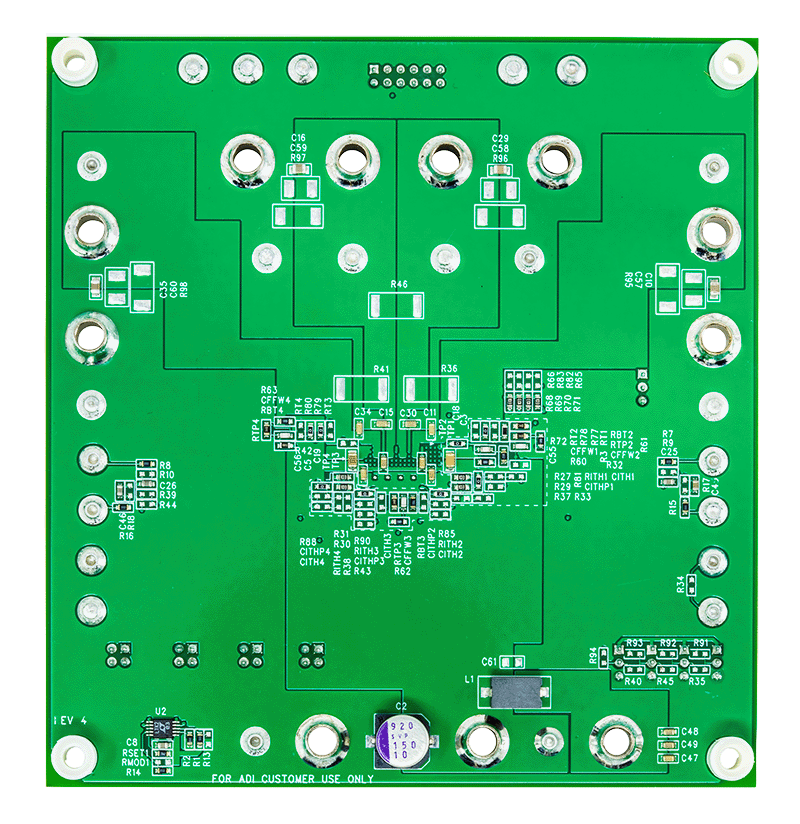

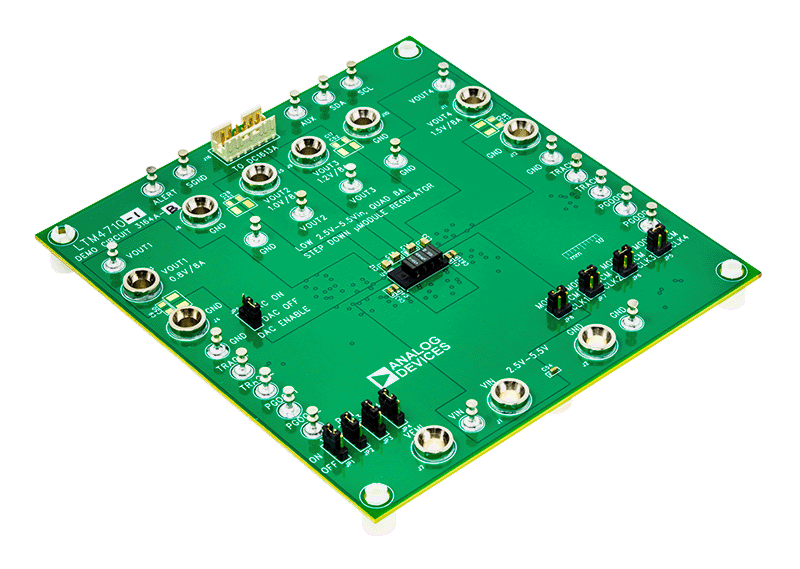

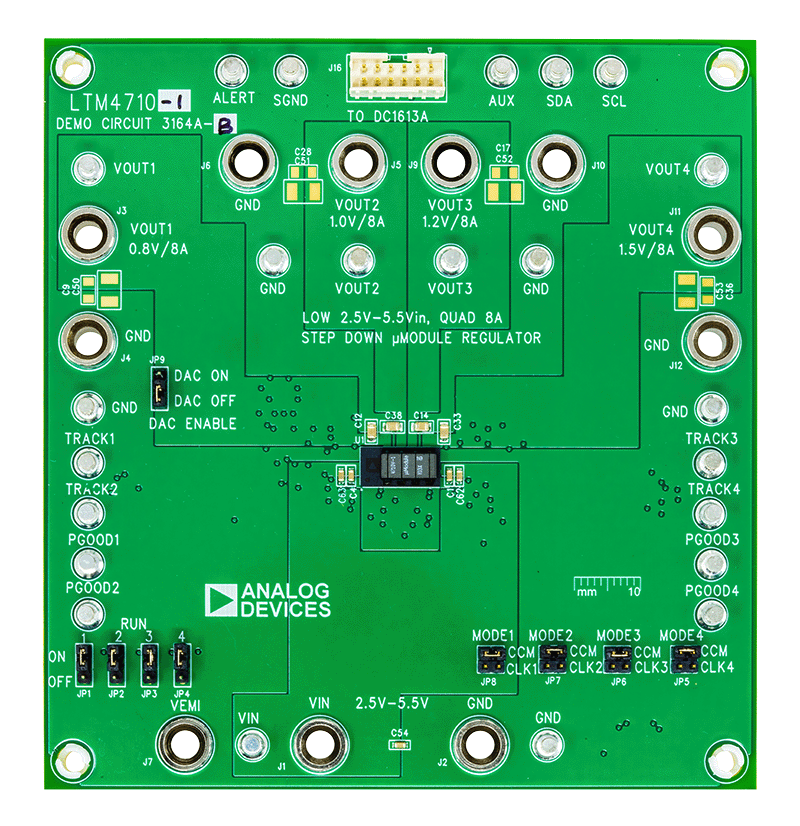

Demonstration circuit 3164A-B features the LTM4710‑1, a quad DC/DC step-down μModule^® regulator with 8A per output, packaged in a compact (6mm × 12mm × 3.54mm) land grid array (LGA) with pre-made solder balls. DC3164A-B has an operating input range of 2.5V to 5.5V. The outputs of the four channels are 0.8V, 1.0V, 1.2V, and 1.5V with 8A per output, respectively. All outputs voltages are programmable from 0.5V up to 3.6V (step-down only). DC3164A-B operates by default at 1.5MHz and can be adjusted by an external resistor from 1MHz to 5MHz or by being synchronized to an external clock from 1.2MHz to 2.6MHz. DC3164A-B also allows for the channels to be paralleled up to 32A load current.

LTM4710-1 integrates four separate constant-frequency peak current mode control regulators, power MOSFETs, inductors, and other supporting discrete components. It employs the second-generation Silent Switcher^® technology in which it allows fast switching edges for high efficiency at high switching frequencies, while simultaneously achieving good EMI performance. Refer to the LTM4710-1 data sheet for more detailed information.

It is recommended to read the data sheet of the LTM4710-1 prior to making any changes to the DC3164A-B board.
