Overview

Features and Benefits

  • 10A DC Output Current
  • Input Voltage Range: 2.375V to 5.5V
  • Output Voltage Range: 0.6V to 5V
  • No Heat Sink or Current Derating Up to 85°C Ambient Temperature
  • ±1.5% Maximum Total DC Output Error
  • Multiphase Operation with Current Sharing
  • Remote Sense Amplifier
  • Built-In Temperature Monitor
  • Selectable Pulse-Skipping Mode/Burst Mode® Operation for High Efficiency at Light Load
  • Soft-Start/Voltage Tracking
  • Protection: Output Overvoltage and Overcurrent Foldback
  • See LTM4649 for Up to 16VIN Operation
  • 9mm × 15mm × 4.92mm BGA Package

Product Details

The LTM4648 is a 10A low VIN step-down DC/DC μModule® (micromodule) regulator. Included in the package are the switching controller, power FETs, inductor and all support components. Operating over an input voltage range of 2.375V to 5.5V, the LTM4648 supports an output voltage range of 0.6V to 5V, set by a single external resistor. This high efficiency design delivers up to 10A continuous current. Only bulk input and output capacitors are needed.

High switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability. The device supports frequency synchronization, programmable multiphase operation and output voltage tracking for supply rail sequencing.

Fault protection features include overvoltage protection, overcurrent protection and thermal shutdown. The LTM4648 is offered in a small 9mm × 15mm × 4.92mm BGA package available with SnPb or RoHS compliant terminal finish. For up to 16VIN operation, see the LTM4649.

APPLICATIONS

  • Telecom, Networking and Industrial Equipment
  • Point of Load Regulation

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

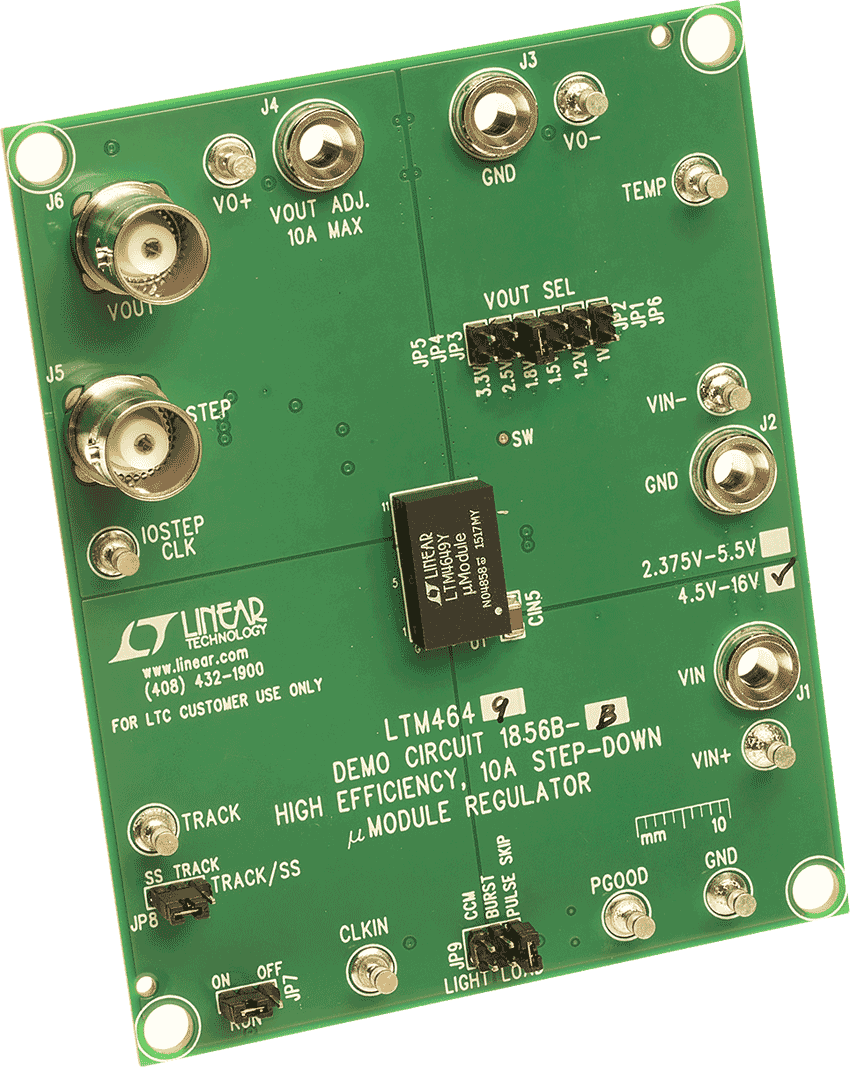

Evaluation Kits (1)

Documentation & Resources

  • View All (6)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (1)
  • Product Selector Card (1)
  • Informational (1)
  • Press Releases (1)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    To launch ready-to-run LTspice demonstration circuits for this part:

    Step 1: Download and install LTspice on your computer.

    Step 2: Click on the link in the section below to download a demonstration circuit.

    Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

    LTspice

    LTspice Simulations

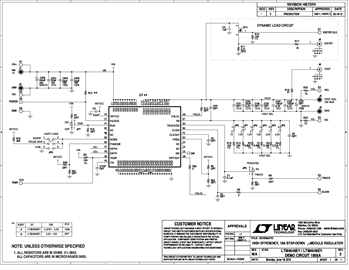

    LTM4648 Demo Circuit - 10A Buck µModule Regulator (2.4-5.5V to 1.5V @ 10A)

    Models for the following parts are available in LTspice:

    LTM4648

    LTpowerCAD

    LTpowerCAD® is a power supply design program which selects power stage components, provides detailed power efficiency, shows quick loop Bode plot stability and load transient analysis, and can export to LTspice for simulation.

    To open the project file for this circuit:

    Step 1: Download and install LTpowerCAD on your computer.

    Step 2: Click on the link(s) in the section below to download part-specific project files.

    Step 3: If the project file doesn't run, right-click the link and select "Save Target As." Then start the LTpowerCAD tool and open the project file by selecing "Open Project" from the "File" menu.

    LTPowerCAD

    LTpowerCAD Project Files

    LTM4648 Project - Low Vin Step-Down μModule Regulator (2.4-5.5V to 1.5V @ 10A)

    Design tools for the following parts are available in LTpowerCAD:

    LTM4648
