LTM4609

36VIN, 34VOUT High Efficiency Buck-Boost DC/DC μModule (Power Module) Regulator

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.G)
Documentation View All Documentation
LTspice LTM4609 Demo Circuit - High Efficiency Buck-Boost µModule Supply (10-36V to 30V @ 3A) Download 3.00KB LTspice LTM4609 - ?Module Regulators Download 1.77 KB
Part Models 8
1ku List Price Starting From $26.55
Features
  • Single Inductor Architecture Allows VIN Above, Below or Equal to VOUT
  • Wide VIN Range: 4.5V to 36V
  • Wide VOUT Range: 0.8V to 34V
  • IOUT: 4A DC (10A DC in Buck Mode)

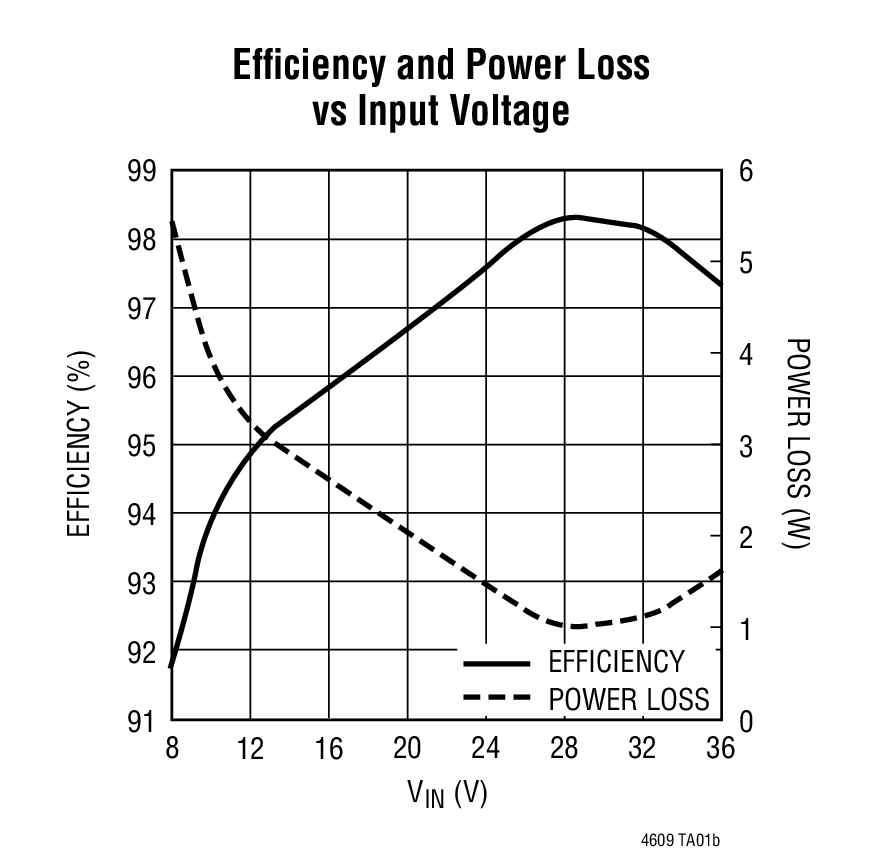

  • Up to 98% Efficiency
  • Current Mode Control
  • Power Good Output Signal
  • Phase-Lockable Fixed Frequency: 200kHz to 400kHz
  • Ultrafast Transient Response
  • Current Foldback Protection
  • Output Overvoltage Protection
  • Small Surface Mount Footprint, Low Profile
    (15mm × 15mm × 2.82mm) LGA and
    (15mm × 15mm × 3.42mm) BGA Packages
  • SnPb (BGA) or RoHS Compliant (LGA and BGA) Finish
Additional Details
show more Icon

The LTM4609 is a high efficiency switching mode buckboost power supply. Included in the package are the switching controller, power FETs and support components. Operating over an input voltage range of 4.5V to 36V, the LTM4609 supports an output voltage range of 0.8V to 34V, set by a resistor. This high efficiency design delivers up to 4A continuous current in boost mode (10A in buck mode). Only the inductor, sense resistor, bulk input and output capacitors are needed to finish the design.

The low profile package enables utilization of unused space on the bottom of PC boards for high density point of load regulation. The high switching frequency and current mode architecture enable a very fast transient response to line and load changes without sacrificing stability. The LTM4609 can be frequency synchronized with an external clock to reduce undesirable frequency harmonics.

Fault protection features include overvoltage and foldback current protection. The DC/DC μModule® regulator is offered in small 15mm × 15mm × 2.82mm LGA and 15mm × 15mm × 3.42mm BGA packages. The LTM4609 is available with SnPb (BGA) or RoHS compliant terminal finish.

APPLICATIONS

  • Telecom, Servers and Networking Equipment
  • Industrial and Automotive Equipment
  • High Power Battery-Operated Devices
Show More Arrow image
file View Data Sheet (Rev.G)
Documentation View All Documentation
LTspice LTM4609 Demo Circuit - High Efficiency Buck-Boost µModule Supply (10-36V to 30V @ 3A) Download 3.00KB LTspice LTM4609 - ?Module Regulators Download 1.77 KB
Part Models 8
1ku List Price Starting From $26.55
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTM4609

Documentation

8
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • User Guide
  • Data Sheet
  • Reliability Data
  • Informational
  • Application Note
  • All
    TickIcon
  • English
  • Japanese
  • Chinese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 04/07/2014
English

LTM4609: 36VIN, 34VOUT High Efficiency Buck-Boost DC/DC μModule (Power Module) Regulator Data Sheet (Rev.G)

Open PDF File

redirect
1.59 M
download

Download PDF

PDF Vector

PDF

UPDATED 06/12/2014
Japanese

LTM4609: 36VIN、34VOUT 高効率昇降圧DC/DC μModuleレギュレータ データシート

Open PDF File

redirect
1.00M
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 04/28/2015
English
DC1477B - Demo Manual redirect icon

376.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R504 Reliability Data redirect icon

347.53 K

download

Download PDF

Informational

1

PDF Vector

HTML

UPDATED 01/30/2018
English
μModule Design and Manufacturing Resources redirect icon

Application Note

3

PDF Vector

HTML

UPDATED 09/01/2019
English
AN-140: Basic Concepts of Linear Regulator and Switching Mode Power Supplies redirect icon

PDF Vector

HTML

UPDATED 09/01/2019
Chinese
AN-140：线性调节器和开关模式电源的基本概念 redirect icon

PDF Vector

HTML

UPDATED 09/01/2019
Japanese
AN-140: リニア・レギュレータとスイッチング電源の基本概念 redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models

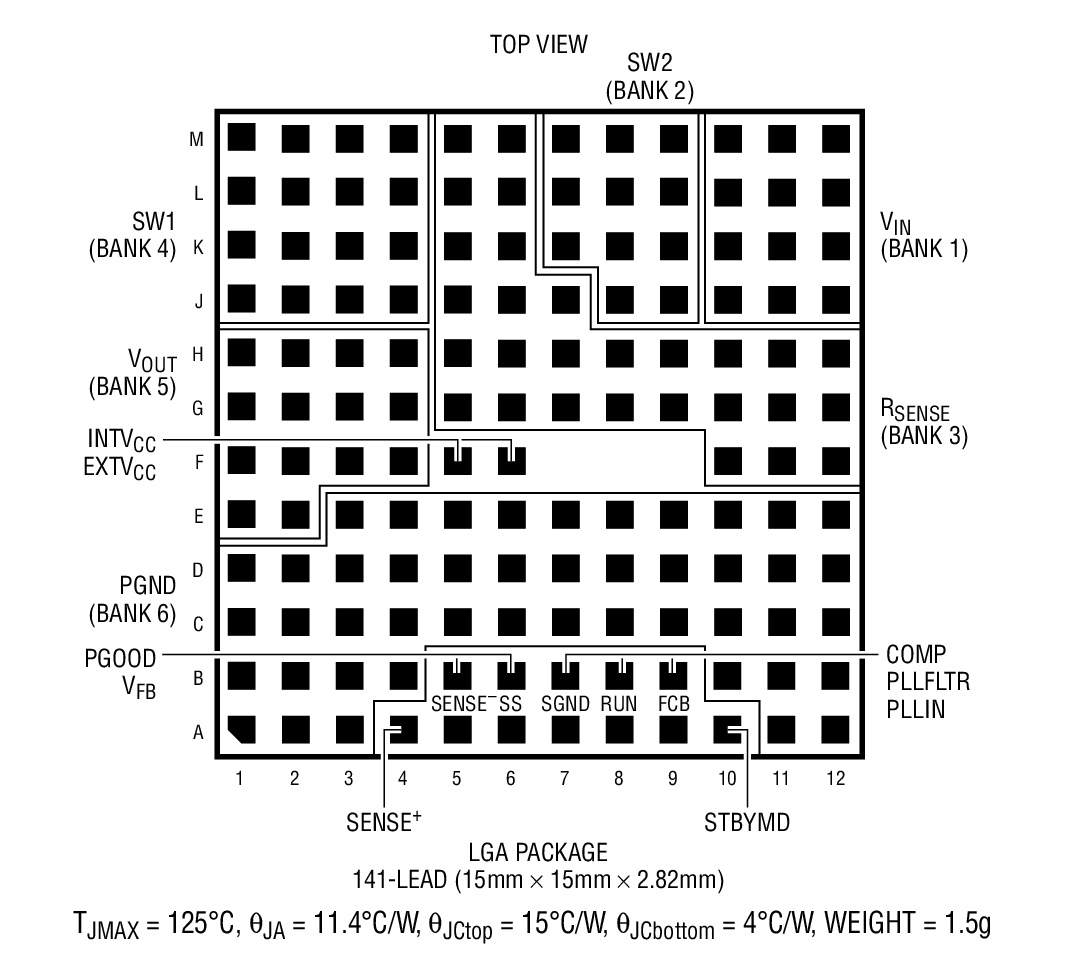

LTM4609EV#PBF 141-Lead LGA (15mm x 15mm x 2.82mm) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

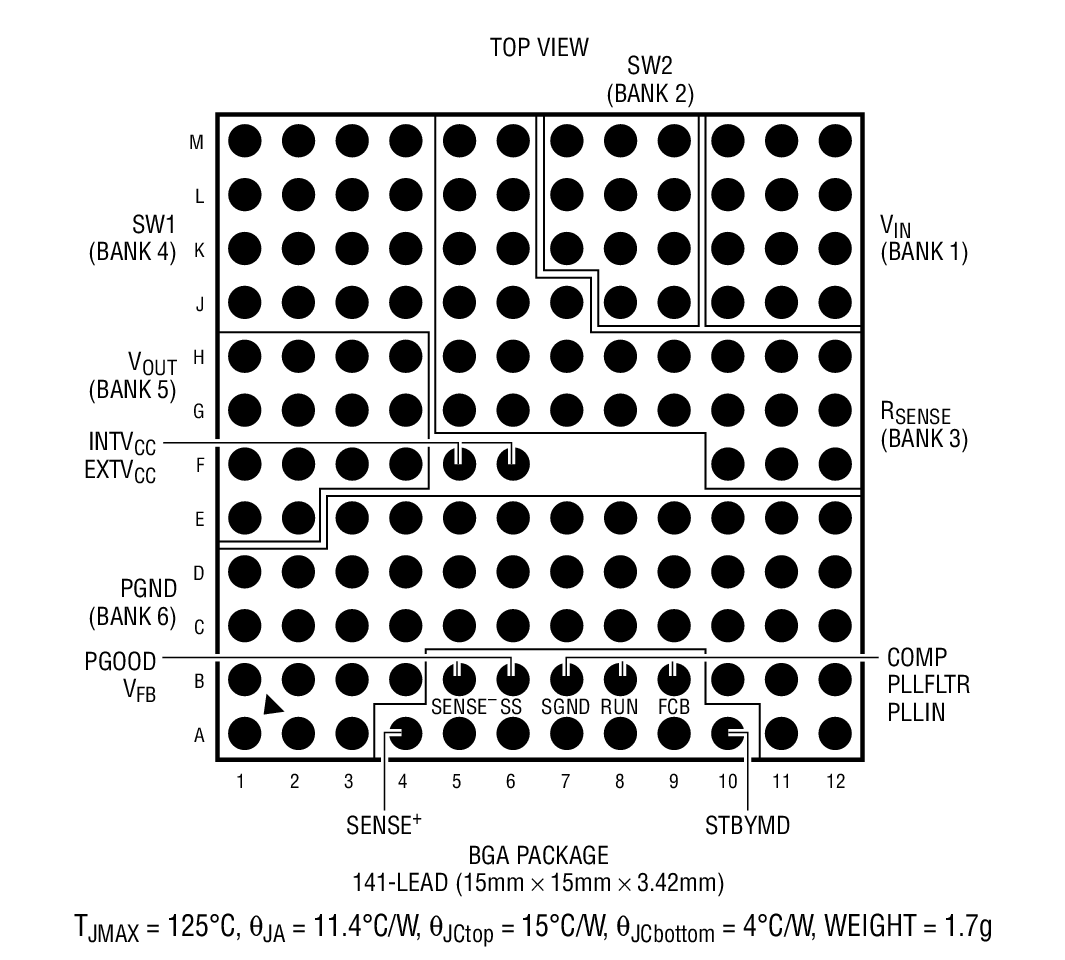

LTM4609EY#PBF 141-Lead BGA (15mm x 15mm x 3.42mm) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTM4609IV#PBF 141-Lead LGA (15mm x 15mm x 2.82mm) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTM4609IY 141-Lead BGA (15mm x 15mm x 3.42mm) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTM4609IY#PBF 141-Lead BGA (15mm x 15mm x 3.42mm) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTM4609MPV#PBF 141-Lead LGA (15mm x 15mm x 2.82mm) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTM4609MPY 141-Lead BGA (15mm x 15mm x 3.42mm) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTM4609MPY#PBF 141-Lead BGA (15mm x 15mm x 3.42mm) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 30, 2021

- 21_0172

Moisture Sensitivity Level Rating Downgrade for LTM4605, LTM4607, LTM4609 to MSL4

LTM4609EV#PBF

PRODUCTION

LTM4609EY#PBF

PRODUCTION

LTM4609IV#PBF

PRODUCTION

LTM4609IY

PRODUCTION

LTM4609IY#PBF

PRODUCTION

LTM4609MPV#PBF

PRODUCTION

LTM4609MPY

PRODUCTION

LTM4609MPY#PBF

PRODUCTION

pdf

PCN21_0172_Form

external-icon

xls

Material_Report

Download

Jul 21, 2021

- 21_0159

Ink Mark to Laser Mark Conversion for µModule

LTM4609EV#PBF

PRODUCTION

LTM4609EY#PBF

PRODUCTION

LTM4609IV#PBF

PRODUCTION

LTM4609IY

PRODUCTION

LTM4609IY#PBF

PRODUCTION

LTM4609MPV#PBF

PRODUCTION

LTM4609MPY

PRODUCTION

LTM4609MPY#PBF

PRODUCTION

pdf

PCN21_0159_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Feb 28, 2020

- 20_0123

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM4609EV#PBF

PRODUCTION

LTM4609EY#PBF

PRODUCTION

LTM4609IV#PBF

PRODUCTION

LTM4609IY

PRODUCTION

LTM4609IY#PBF

PRODUCTION

LTM4609MPV#PBF

PRODUCTION

LTM4609MPY

PRODUCTION

LTM4609MPY#PBF

PRODUCTION

pdf

PCN20_0123_Form

external-icon

xls

Material_Report

Download

Test Correlation Report

Other

pdf

Qualification Results Summary

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 30, 2021

- 21_0172

arrow down

Moisture Sensitivity Level Rating Downgrade for LTM4605, LTM4607, LTM4609 to MSL4

LTM4609EV#PBF

PRODUCTION

LTM4609EY#PBF

PRODUCTION

LTM4609IV#PBF

PRODUCTION

LTM4609IY

PRODUCTION

LTM4609IY#PBF

PRODUCTION

LTM4609MPV#PBF

PRODUCTION

LTM4609MPY

PRODUCTION

LTM4609MPY#PBF

PRODUCTION

pdf

PCN21_0172_Form

external-icon

xls

Material_Report

Download
Jul 21, 2021

- 21_0159

arrow down

Ink Mark to Laser Mark Conversion for µModule

LTM4609EV#PBF

PRODUCTION

LTM4609EY#PBF

PRODUCTION

LTM4609IV#PBF

PRODUCTION

LTM4609IY

PRODUCTION

LTM4609IY#PBF

PRODUCTION

LTM4609MPV#PBF

PRODUCTION

LTM4609MPY

PRODUCTION

LTM4609MPY#PBF

PRODUCTION

pdf

PCN21_0159_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download
Feb 28, 2020

- 20_0123

arrow down

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM4609EV#PBF

PRODUCTION

LTM4609EY#PBF

PRODUCTION

LTM4609IV#PBF

PRODUCTION

LTM4609IY

PRODUCTION

LTM4609IY#PBF

PRODUCTION

LTM4609MPV#PBF

PRODUCTION

LTM4609MPY

PRODUCTION

LTM4609MPY#PBF

PRODUCTION

pdf

PCN20_0123_Form

external-icon

xls

Material_Report

Download
Test Correlation Report
Other

pdf

Qualification Results Summary

external-icon
Software & Part Ecosystem

Software & Part Ecosystem

Parts Product Life Cycle Description

Dual-Supply Monitors1
LTC2960
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

36V Nano-Current Two-Input Voltage Monitor

High Voltage Hot Swap Controllers1
LTC4364
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Surge Stopper with Ideal Diode

Silicon Oscillators2
LTC6908
popup image
Cart

Resistor Set SOT-23 Oscillator with Spread Spectrum Modulation

LTC6909
popup image
Cart

PRODUCTION

1 to 8 Output, Multiphase Silicon Oscillator with Spread Spectrum Modulation

Evaluation Kit

Evaluation Kits 1

reference details image

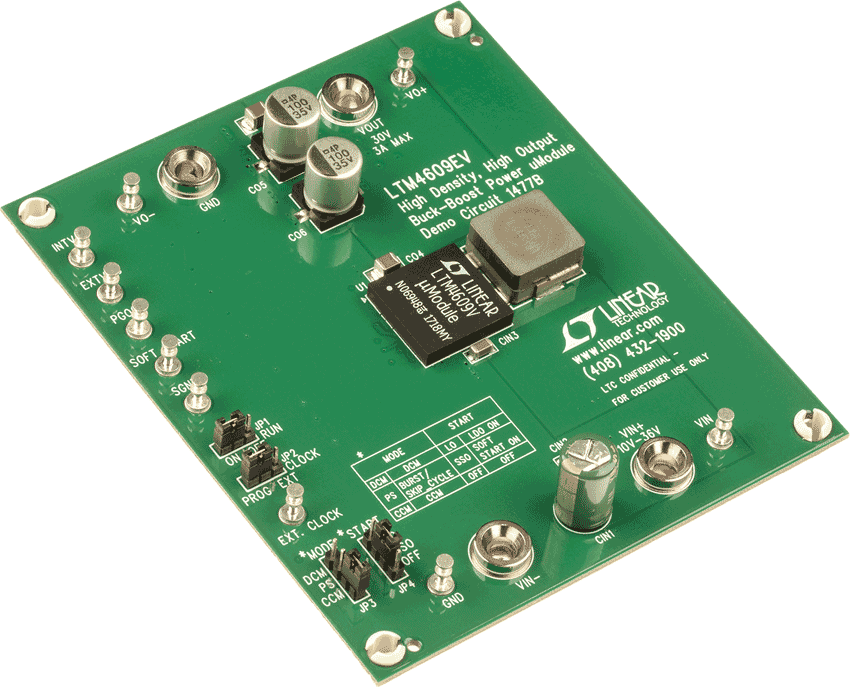

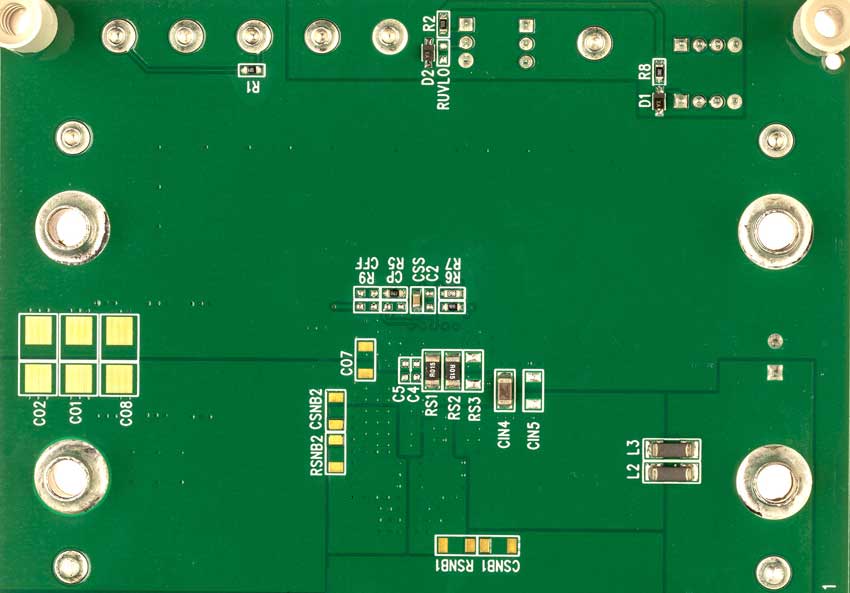

DC1477B

LTM4609EV Demo Board | 34VOUT, 4A Buck-Boost µModule Regulator

zoom

DC1477B

LTM4609EV Demo Board | 34VOUT, 4A Buck-Boost µModule Regulator

download icon

Download

 print icon

Print
DC1477B
LTM4609EV Demo Board | 34VOUT, 4A Buck-Boost µModule Regulator
Buy Now View Details

Product Detail

Demonstration circuit DC1477B features the LTM4609EV, the high voltage, high efficiency, high density switch mode buck-boost power module. The LTM4609EV regulates an output voltage above, below, or equal to the input voltage. DC1477B accepts an input voltage from 10V to 36V with a preset output voltage of 30V at up to 3A. Derating may be necessary for certain VIN, VOUT, and thermal conditions. An optional input π filter is added on the DC1477B to minimize the input ripple. The switching frequency may be synchronized to an external clock from 200kHz to 400kHz to reduce undesirable frequency harmonics and/or parallel multiple modules for even higher output current.

Resources

pdf icon

PDF

DC1477B - Demo Manual Download

376.00K

pdf icon

PDF

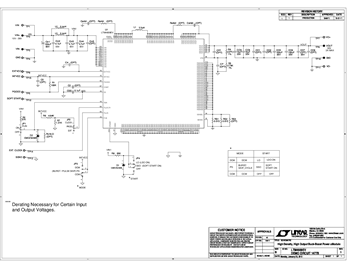

DC1477B - Schematic Download

71.00K

pdf icon

ZIP

DC1477B - Design Files Download

917.00K

Show More Arrow image

Evaluation Kits1

evaluation kit item images

DC1477B

LTM4609EV Demo Board | 34VOUT, 4A Buck-Boost µModule Regulator
Tools & Simulations

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

LTM4609 Demo Circuit - High Efficiency Buck-Boost µModule Supply (10-36V to 30V @ 3A) Download

3.00K

spice tool Lt Spice

LTM4609 - ?Module Regulators Download

1.77 K
