LTC7803

40V Low IQ, 3MHz Synchronous Step-Down Controller with Spread Spectrum

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.B)
Documentation View All Documentation
LTspice LTC7803 - Step-Down (Buck) Regulators Download 3.62 KB
Part Models 32
1ku List Price Starting From $2.18
Features
  • Low Operating IQ: 12µA (14V VIN to 3.3V VOUT)
  • Wide Input Voltage Range: 4.5V to 40V
  • Output Voltage Up to 40V
  • Spread Spectrum Operation
  • RSENSE or DCR Current Sensing
  • PassThru™/100% Duty Cycle Capable
  • Programmable Fixed Frequency (100kHz to 3MHz)
  • Phase-Lockable Frequency (100kHz to 3MHz)
  • Selectable Continuous, Pulse-Skipping, or Low Ripple Burst Mode® Operation at Light Loads
  • Low Shutdown IQ: 1.2μA
  • Thermally Enhanced 16-Pin 3mm × 3mm QFN and MSOP Packages
  • AEC-Q100 Qualified for Automotive Applications
Additional Details
show more Icon

The LTC7803 is a high performance, 100% Duty Cycle Capable, synchronous step-down DC/DC switching regulator controller that drives an all N-channel power MOSFET stage. Synchronous rectification increases efficiency, reduces power losses and eases thermal requirements. A constant frequency current mode architecture allows a phase-lockable switching frequency of up to 3MHz. The LTC7803 operates from a wide 4.5V to 40V input supply range.

The very low no-load quiescent current extends operating runtime in battery powered systems. OPTI-LOOP compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. The MODE pin selects among Burst Mode operation, pulse-skipping mode, or continuous inductor current mode at light loads.

The LTC7803 additionally features spread spectrum operation which significantly reduces the peak radiated and conducted noise on both the input and output supplies, making it easier to comply with electromagnetic interference (EMI) standards.

APPLICATIONS

  • Automotive and Transportation
  • Industrial
  • Military/Avionics
  • Telecommunications
Show More Arrow image
file View Data Sheet (Rev.B)
Documentation View All Documentation
LTspice LTC7803 - Step-Down (Buck) Regulators Download 3.62 KB
Part Models 32
1ku List Price Starting From $2.18
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC7803

Documentation

6
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • User Guide
  • Data Sheet
  • Design Note
  • All
    TickIcon
  • English
  • Japanese
  • Chinese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 05/05/2020
English

LTC7803: 40V Low IQ, 3MHz Synchronous Step-Down Controller with Spread Spectrum Data Sheet (Rev.B)

Open PDF File

redirect
2.41 M
download

Download PDF

PDF Vector

PDF

UPDATED 05/05/2020
Japanese

LTC7803: スペクトラム拡散機能を備えた40V、低IQ、3MHz同期整流式降圧コントローラ データシート (Rev.0)

Open PDF File

redirect
1.56 M
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 07/17/2020
English
DC2834A - Demo Manual (Rev.0) redirect icon

1.11 M

download

Download PDF

Design Note

3

PDF Vector

HTML

UPDATED 04/01/2020
English
LTC7803 or Easy Design Path to Advanced Power Supply redirect icon

PDF Vector

HTML

UPDATED 04/01/2020
Chinese
LTC7803或先进电源便捷设计之路 redirect icon

PDF Vector

HTML

UPDATED 04/01/2020
Japanese
先進的な電源の設計を容易にするLTC7803 redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC7803EMSE#PBF 16-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803EMSE#TRPBF 16-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803EMSE#WPBF 16-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803EMSE#WTRPBF 16-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803EUD#PBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803EUD#TRPBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803EUD#WPBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803EUD#WTRPBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803HMSE#PBF 16-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803HMSE#TRPBF 16-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803HMSE#WPBF 16-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803HMSE#WTRPBF 16-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803HUD#PBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803HUD#TRPBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803HUD#WPBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803HUD#WTRPBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803IMSE#PBF 16-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803IMSE#TRPBF 16-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803IMSE#WPBF 16-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803IMSE#WTRPBF 16-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803IUD#PBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803IUD#TRPBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803IUD#WPBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803IUD#WTRPBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803JMSE#PBF 16-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803JMSE#TRPBF 16-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803JMSE#WPBF 16-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803JMSE#WTRPBF 16-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803JUD#PBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803JUD#TRPBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803JUD#WPBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7803JUD#WTRPBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LTC7803EMSE#PBF

PRODUCTION

LTC7803EMSE#TRPBF

PRODUCTION

LTC7803EMSE#WPBF

LTC7803EMSE#WTRPBF

LTC7803HMSE#PBF

PRODUCTION

LTC7803HMSE#TRPBF

PRODUCTION

LTC7803HMSE#WPBF

LTC7803HMSE#WTRPBF

LTC7803IMSE#PBF

PRODUCTION

LTC7803IMSE#TRPBF

PRODUCTION

LTC7803IMSE#WPBF

LTC7803IMSE#WTRPBF

LTC7803JMSE#PBF

PRODUCTION

LTC7803JMSE#TRPBF

PRODUCTION

LTC7803JMSE#WPBF

LTC7803JMSE#WTRPBF

pdf

PCN24_0003_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Aug 23, 2021

- 20_0132

Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC

LTC7803EMSE#PBF

PRODUCTION

LTC7803EMSE#TRPBF

PRODUCTION

LTC7803EMSE#WPBF

LTC7803EMSE#WTRPBF

LTC7803HMSE#PBF

PRODUCTION

LTC7803HMSE#TRPBF

PRODUCTION

LTC7803HMSE#WPBF

LTC7803HMSE#WTRPBF

LTC7803IMSE#PBF

PRODUCTION

LTC7803IMSE#TRPBF

PRODUCTION

LTC7803IMSE#WPBF

LTC7803IMSE#WTRPBF

LTC7803JMSE#PBF

PRODUCTION

LTC7803JMSE#TRPBF

PRODUCTION

LTC7803JMSE#WPBF

LTC7803JMSE#WTRPBF

pdf

PCN20_0132_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Jun 21, 2022

- 22_0050

UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices

LTC7803JMSE#WPBF

LTC7803JMSE#WTRPBF

pdf

PCN22_0050_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LTC7803EMSE#PBF

PRODUCTION

LTC7803EMSE#TRPBF

PRODUCTION

LTC7803EMSE#WPBF

LTC7803EMSE#WTRPBF

LTC7803HMSE#PBF

PRODUCTION

LTC7803HMSE#TRPBF

PRODUCTION

LTC7803HMSE#WPBF

LTC7803HMSE#WTRPBF

LTC7803IMSE#PBF

PRODUCTION

LTC7803IMSE#TRPBF

PRODUCTION

LTC7803IMSE#WPBF

LTC7803IMSE#WTRPBF

LTC7803JMSE#PBF

PRODUCTION

LTC7803JMSE#TRPBF

PRODUCTION

LTC7803JMSE#WPBF

LTC7803JMSE#WTRPBF

pdf

PCN24_0003_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download
Aug 23, 2021

- 20_0132

arrow down

Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC

LTC7803EMSE#PBF

PRODUCTION

LTC7803EMSE#TRPBF

PRODUCTION

LTC7803EMSE#WPBF

LTC7803EMSE#WTRPBF

LTC7803HMSE#PBF

PRODUCTION

LTC7803HMSE#TRPBF

PRODUCTION

LTC7803HMSE#WPBF

LTC7803HMSE#WTRPBF

LTC7803IMSE#PBF

PRODUCTION

LTC7803IMSE#TRPBF

PRODUCTION

LTC7803IMSE#WPBF

LTC7803IMSE#WTRPBF

LTC7803JMSE#PBF

PRODUCTION

LTC7803JMSE#TRPBF

PRODUCTION

LTC7803JMSE#WPBF

LTC7803JMSE#WTRPBF

pdf

PCN20_0132_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download
Jun 21, 2022

- 22_0050

arrow down

UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices

LTC7803JMSE#WPBF

LTC7803JMSE#WTRPBF

pdf

PCN22_0050_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Software & Part Ecosystem

Parts Product Life Cycle Description

High Voltage Hot Swap Controllers1
LTC4238
popup image
Cart

LAST TIME BUY

High Voltage High Current Hot Swap Controller

Surge Stopper, Overvoltage, and Overcurrent Protection1
LTC4381
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Low Quiescent Current eFuse with Surge Protection

Evaluation Kits 1

reference details image

DC2834A

LTC7803EMSE Demo Board | High Frequency, Low IQ Synchronous Step-Down Controller

zoom

DC2834A

LTC7803EMSE Demo Board | High Frequency, Low IQ Synchronous Step-Down Controller

download icon

Download

 print icon

Print

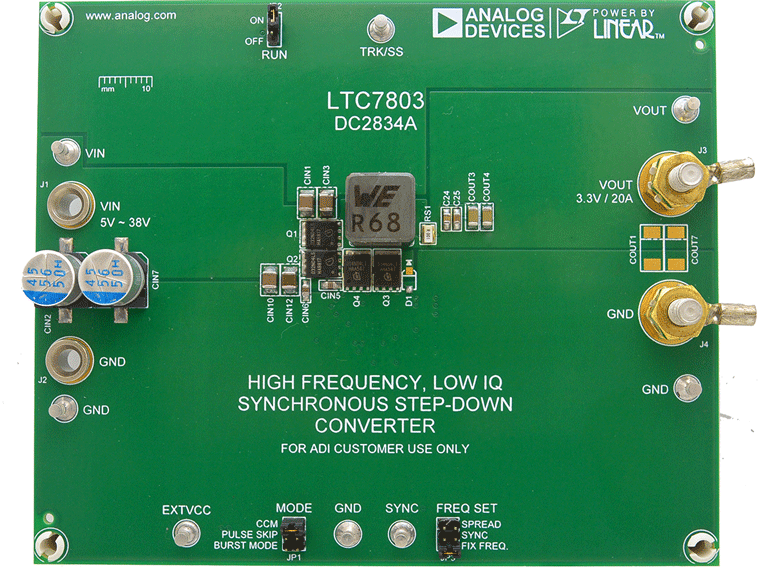

DC2834A
LTC7803EMSE Demo Board | High Frequency, Low IQ Synchronous Step-Down Controller

Features and Benefits

  • Wide input voltage range: from 5V to 38V
  • High load current, up to 20A
  • Extremely low quiescent current: 15μA in sleep mode and as low as 1μA at shutdown
  • Ability to select spread spectrum or fixed frequency
  • Selectable pulse-skipping, forced continuous operation or low ripple Burst Mode® operation at light loads
  • Synchronization with external clock
  • The DC2834A supports RSENSE or inductor DCR current sensing (optional).
Buy Now View Details

Product Detail

Demonstration circuit DC2834A is a DC/DC synchronous step-down converter featuring the LTC7803 (MSE package), a spread spectrum or constant frequency current mode synchronous step-down controller. The DC2834A generates a 3.3V of output voltage.

The 500kHz constant switching frequency operation results in a small and efficient circuit.

The converter provides high output voltage accuracy (typically ±2%) over wide load range with no minimum load requirement.

The DC2834A supports two ways of biasing the controller: directly from the input voltage or output rail through EXTVCC. The third possibility is connecting an external voltage source to EXTVCC terminal.

The DC2834A supports extremely wide switching frequency range from 100kHz to 3MHz. The spread spectrum operation reduces the peak radiated and conducted noise to simplify compliance with electromagnetic interference (EMI) standards.

The DC2834A has a small circuit footprint, is a high performance and high density solution for telecom, automotive and Power over Ethernet applications.

Resources

pdf icon

PDF

DC2834A - Schematic Download

419.08 K

pdf icon

PDF

DC2834A - Demo Manual (Rev.0) Download

1.11 M

pdf icon

ZIP

DC2834A - Design File Download

4.81 M

Show More Arrow image

Evaluation Kits1

evaluation kit item images

DC2834A

LTC7803EMSE Demo Board | High Frequency, Low IQ Synchronous Step-Down Controller

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

LTC7803 - Step-Down (Buck) Regulators Download

3.62 K

Recently Viewed

Part Details
Documentation
Software & Part Ecosystem
Evaluation Kit
Tools & Simulations
Latest Discussions
