Features

Unique Symmetric Floating Gate Driver Architecture
High Noise Immunity, Tolerates ±10V Ground Difference
140V Maximum Input Voltage Independent of IC Supply Voltage V_CC
5V to 14V V_CC Operating Voltage
4V to 14V Gate Driver Voltage
0.8Ω Pull-Down, 1.5Ω Pull-Up for Fast Turn-On/Off
Adaptive Shoot-Through Protection

Adjustable Dead Time
TTL/CMOS Compatible Input
V_CC UVLO/OVLO and Floating Supplies UVLO
Drives Dual N-Channel MOSFETs
Open-Drain Fault Indicator (V_CC UVLO/OVLO, Gate Driver UVLO and Thermal Shutdown)
Available in Thermally Enhanced 12-LEAD MSOP
AEC-Q100 Qualified for Automotive Applications

Additional Details

The LTC7066 drives two N-Channel MOSFETs in a half-bridge configuration with supply voltages up to 140V. Both high-side and low-side drivers can drive the MOSFETs with a different ground reference, providing excellent noise and transient immunity.

Its powerful 0.8Ω pull-down and 1.5Ω pull-up MOSFET drivers allow the use of large gate capacitance high voltage MOSFETs. Additional features include UVLO, TTL/CMOS compatible inputs, adjustable turn-on/-off delays, and shoot-through protection.

APPLICATIONS

Automotive and Industrial Power Systems
Telecommunication Power Systems
Half-Bridge and Full-Bridge Converters

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 4

1ku List Price Starting From $1.49

Technical Documents 2

LTC7066: 150V Half Bridge Driver with Floating Grounds and Adjustable Dead Time Data Sheet (Rev.0) 04/20/2023

EVAL-LTC7066-AZ User Guide: 150V Half-Bridge Driver with Floating Grounds and Adjustable Dead-Time (Rev.0) 08/15/2023

Design Resources 4

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC7066RMSE#PBF	12-Lead MSOP w/ EP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC7066RMSE#TRPBF	12-Lead MSOP w/ EP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC7066RMSE#WPBF	12-Lead MSOP w/ EP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC7066RMSE#WTRPBF	12-Lead MSOP w/ EP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

LTC7066RMSE#PBF
Pin/Package Drawing
12-Lead MSOP w/ EP
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC7066RMSE#TRPBF
Pin/Package Drawing
12-Lead MSOP w/ EP
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC7066RMSE#WPBF
Pin/Package Drawing
12-Lead MSOP w/ EP
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC7066RMSE#WTRPBF
Pin/Package Drawing
12-Lead MSOP w/ EP
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

EVAL-LTC7066

150V Half-Bridge Driver with Floating Grounds and Adjustable Dead-Time

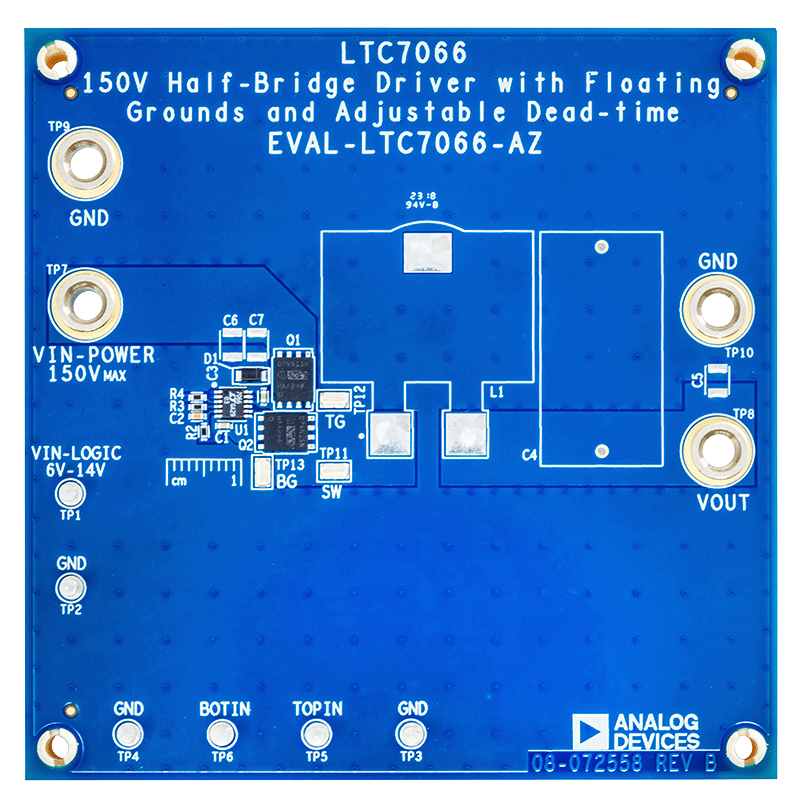

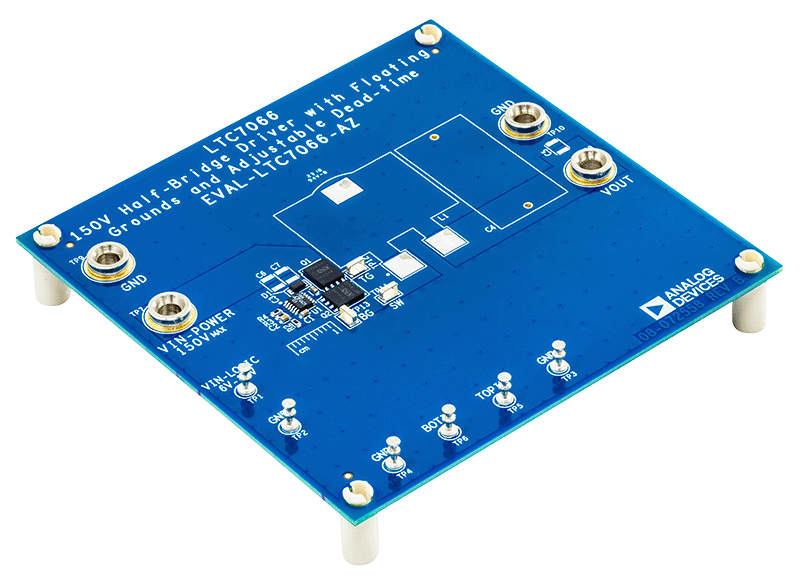

EVAL-LTC7066-AZ Evaluation Board - Top View

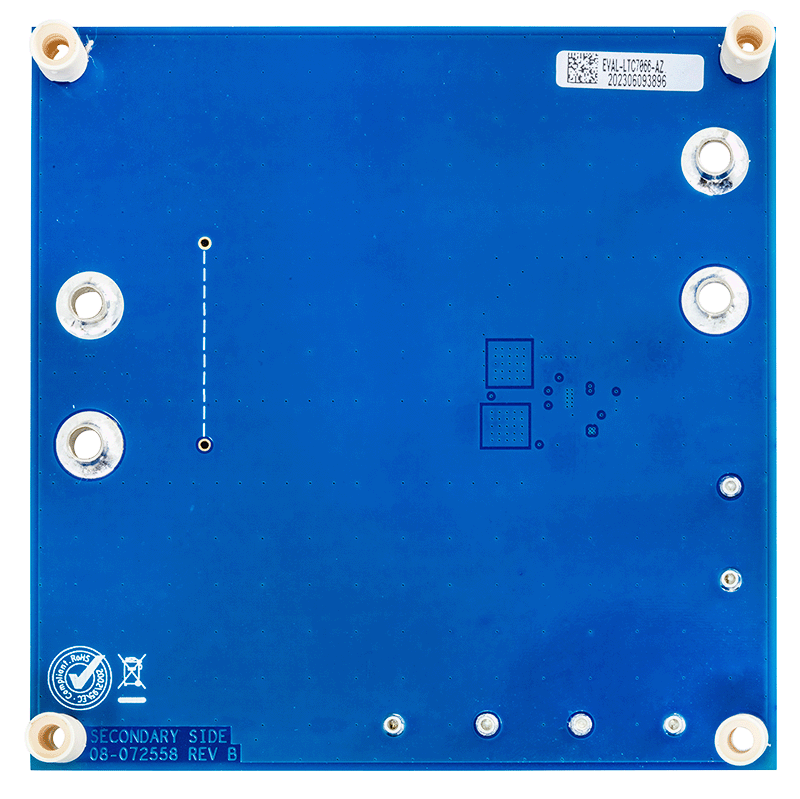

EVAL-LTC7066-AZ Evaluation Board - Bottom View
