LTC7065

RECOMMENDED FOR NEW DESIGNS

100V Half-Bridge Driver with Adaptive Shoot-Through Protection

Data Sheet (Rev. 0) Product Selection Table

Part Models: 2
1ku List Price: Starting From $0.85

Viewing:

Overview

100V Maximum Input Voltage Independent of IC Supply Voltage V_CC
6V to 14V V_CC and Bottom Gate Driver Voltage
4V to 14V Top Gate Driver Voltage
1.3Ω Pull-Down, 1.6Ω Pull-Up
Adaptive Shoot-Through Protection
Three-State PWM Input with Enable Pin
V_CC UVLO and Floating Supply UVLO
Drives Dual N-Channel MOSFETs
Available in Thermally Enhanced 10-LEAD MSOP Package

The LTC7065 is a half-bridge dual N-Channel MOSFET gate driver that operates at up to 100V input voltage and features a supply independent three-state PWM input logic.

The strong 1.3Ω pull-down and 1.6Ω pull-up drive capability can drive large gate capacitances of high-voltage MOSFETs with short transition times in high switching frequency applications. The adaptive shoot-through protection is designed for optimized efficiency and MOSFET cross-conduction protection.

The LTC7065 contains undervoltage lockout circuits on both the V_CC supply and floating driver supply that turn off the external MOSFETs when activated. See below for a comparison of the parts in this family.

Applications

Industrial Power Systems
Half-Bridge DC/DC Converters
Telecommunication Power Systems

Part Models: 2
1ku List Price: Starting From $0.85

Documentation

Data Sheet 1

LTC7065: 100V Half-Bridge Driver with Adaptive Shoot-Through Protection Data Sheet (Rev.0) 01/22/2024

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC7065RMSE#PBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC7065RMSE#TRPBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice 1

LTC7065 LTSpice

Models for the following parts are available in LTspice:

LTC7065

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

100V Half-Bridge Driver with Adaptive Shoot-Through Protection

Buy Now View Details

Product Details

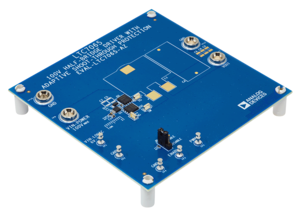

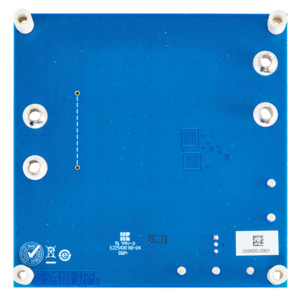

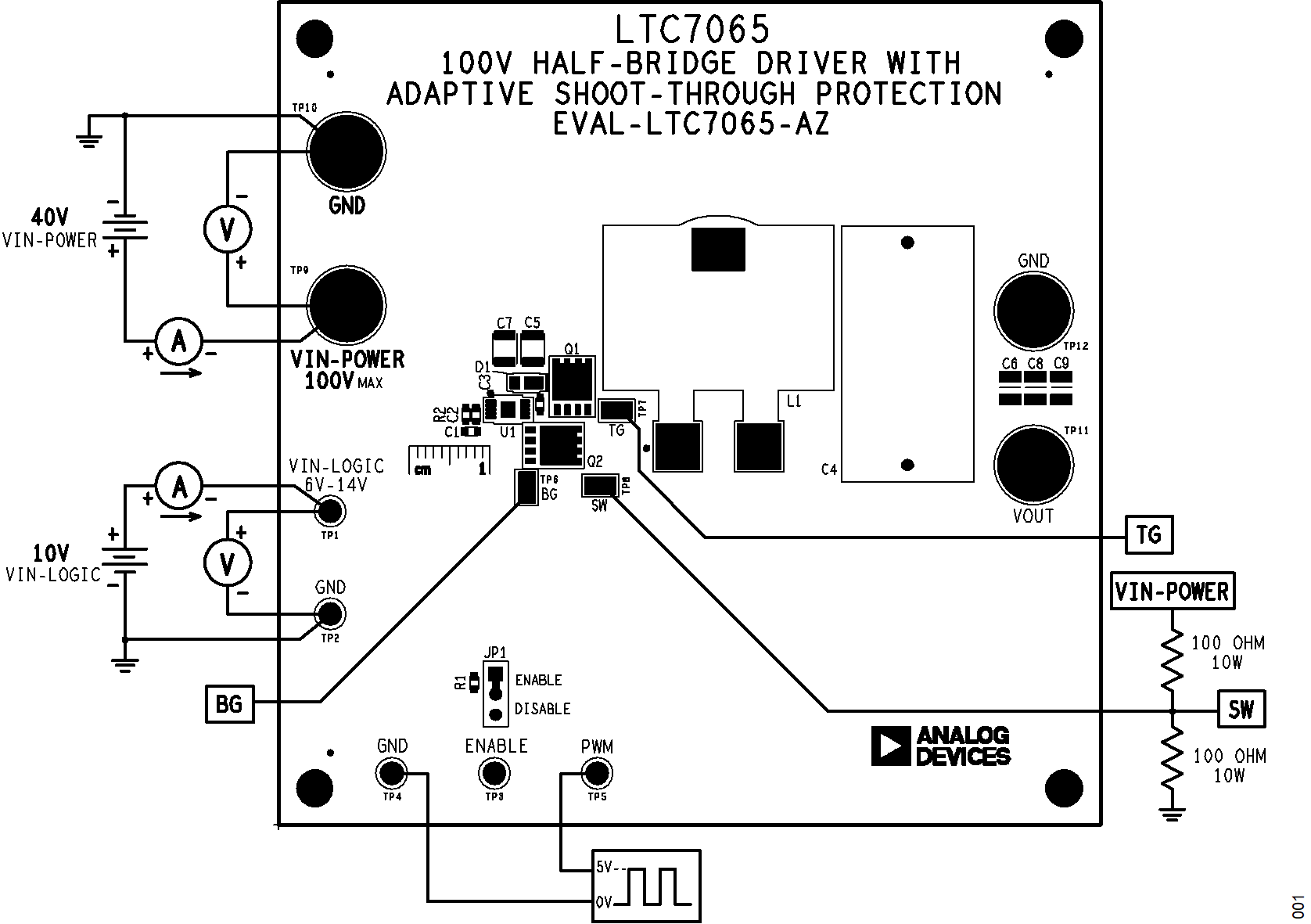

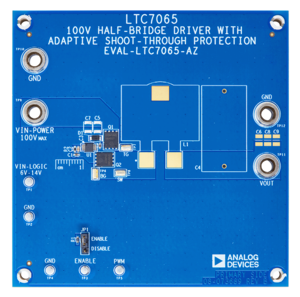

The EVAL-LTC7065-AZ evaluation circuit features LTC7065 driving two N-channel MOSFETs in a half-bridge configuration. The PWM input control is 5V logic compatible and controls both gate outputs, with one output being a complement of the other. The evaluation board has several unpopulated PCB pads to help facilitate the user in customizing the board for their application.

The LTC7065 driver has powerful 1.2Ω pull-down and 1.6Ω pull-up MOSFET drivers driving two 100V Nchannel MOSFETs.

Resources

EVAL-LTC7065-AZ Design Files
3/5/2024

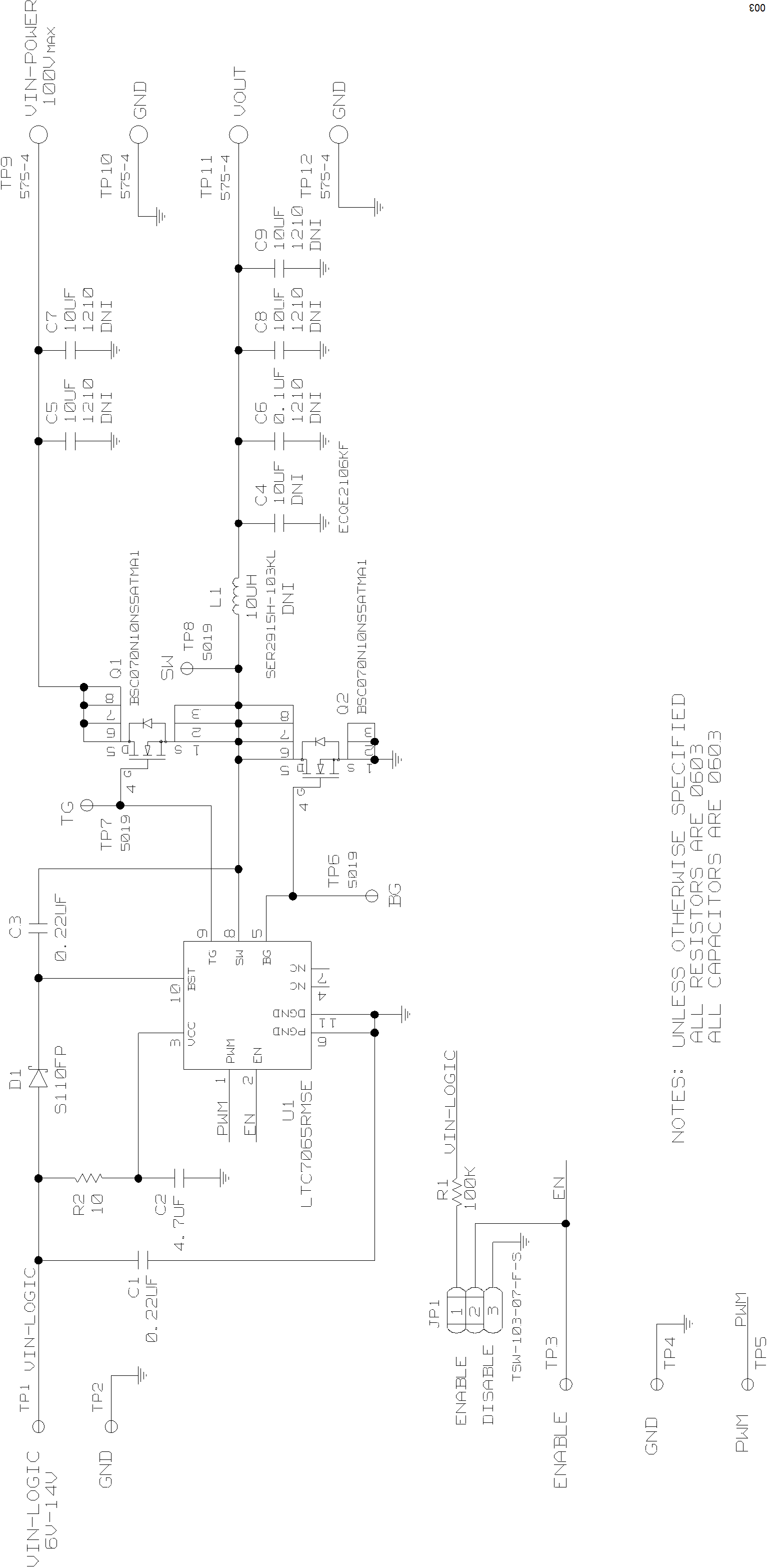

EVAL-LTC7065-AZ Schematic
3/5/2024

EVAL-LTC7065-AZ User Guide
2/26/2024
