LTC6915

Zero Drift, Precision Instrumentation Amplifier with Digitally Programmable Gain

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 10
1ku List Price Starting From $3.23
Features
  • 14 Levels of Programmable Gain
  • 125dB CMRR Independent of Gain
  • Gain Accuracy 0.1% (Typ)
  • Maximum Offset Voltage of 10µV
  • Maximum Offset Voltage Drift: 50nV/°C
  • Rail-to-Rail Input and Output
  • Parallel or Serial (SPI) Interface for Gain Setting
  • Supply Operation: 2.7V to ±5.5V
  • Typical Noise: 2.5µVP-P (0.01Hz to 10Hz)
  • 16-Lead SSOP and 12-Lead DFN Packages
Additional Details
show more Icon

The LTC6915 is a precision programmable gain instrumentation amplifier. The gain can be programmed to 0, 1, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1024, 2048, or 4096 through a parallel or serial interface. The CMRR is typically 125dB with a single 5V supply with any programmed gain. The offset is below 10µV with a temperature drift of less than 50nV/°C.

The LTC6915 uses charge balanced sampled data techniques to convert a differential input voltage into a single ended signal that is in turn amplified by a zero-drift operational amplifier.

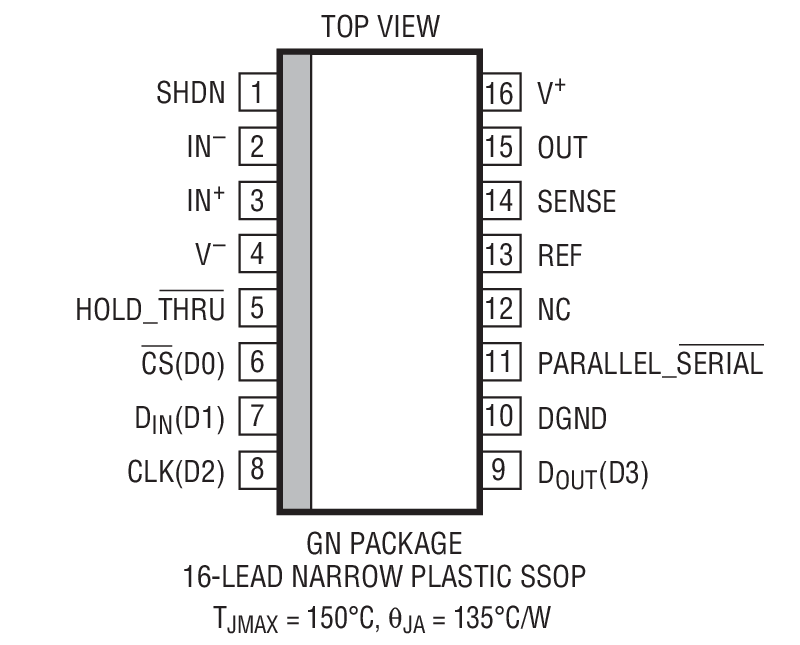

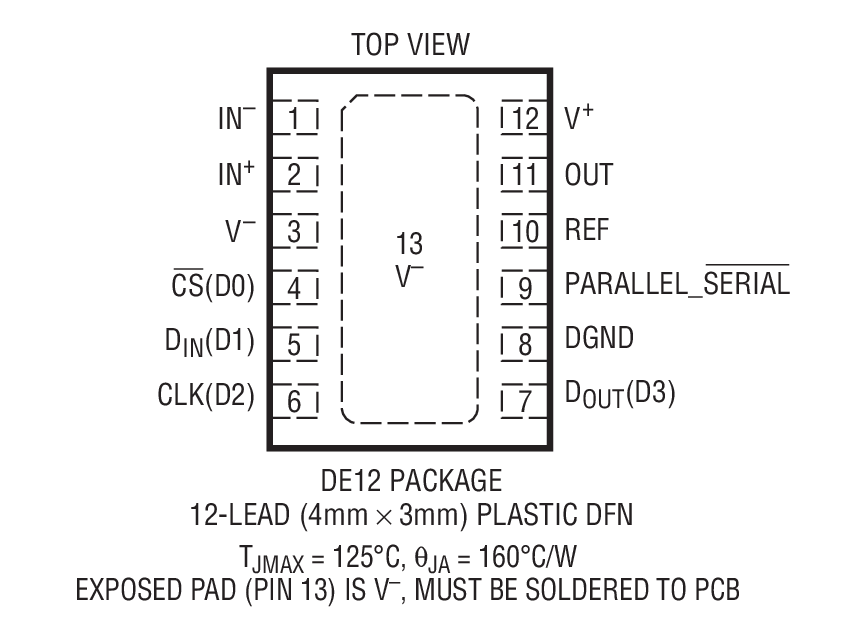

The differential inputs operate from rail-to-rail and the single-ended output swings from rail-to-rail. The LTC6915 can be used in single power supply applications as low as 2.7V, or with dual ±5V supplies. The LTC6915 is available in a 16-lead SSOP package and a 12-lead DFN surface mount package.

Applications

  • Thermocouple Amplifiers
  • Electronic Scales
  • Medical Instrumentation
  • Strain Gauge Amplifier
  • High Resolution Data Acquisition
Part Models 10
1ku List Price Starting From $3.23

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC6915CDE#PBF
  • HTML
  • HTML
LTC6915CDE#TRPBF
  • HTML
  • HTML
LTC6915CGN#PBF
  • HTML
  • HTML
LTC6915CGN#TRPBF
  • HTML
  • HTML
LTC6915HGN#PBF
  • HTML
  • HTML
LTC6915HGN#TRPBF
  • HTML
  • HTML
LTC6915IDE#PBF
  • HTML
  • HTML
LTC6915IDE#TRPBF
  • HTML
  • HTML
LTC6915IGN#PBF
  • HTML
  • HTML
LTC6915IGN#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0235

Epoxy Change from Henkel 8290 to 8290A for GN Package

LTC6915CGN#PBF

PRODUCTION

LTC6915CGN#TRPBF

PRODUCTION

LTC6915HGN#PBF

PRODUCTION

LTC6915HGN#TRPBF

PRODUCTION

LTC6915IGN#PBF

PRODUCTION

LTC6915IGN#TRPBF

PRODUCTION

Apr 6, 2022

- 22_0066

Laser Top Mark for 16QSOP Assembled in ADPG [PNG]

LTC6915CGN#PBF

PRODUCTION

LTC6915CGN#TRPBF

PRODUCTION

LTC6915HGN#PBF

PRODUCTION

LTC6915HGN#TRPBF

PRODUCTION

LTC6915IGN#PBF

PRODUCTION

LTC6915IGN#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0235

arrow down

Epoxy Change from Henkel 8290 to 8290A for GN Package

LTC6915CGN#PBF

PRODUCTION

LTC6915CGN#TRPBF

PRODUCTION

LTC6915HGN#PBF

PRODUCTION

LTC6915HGN#TRPBF

PRODUCTION

LTC6915IGN#PBF

PRODUCTION

LTC6915IGN#TRPBF

PRODUCTION

Apr 6, 2022

- 22_0066

arrow down

Laser Top Mark for 16QSOP Assembled in ADPG [PNG]

LTC6915CGN#PBF

PRODUCTION

LTC6915CGN#TRPBF

PRODUCTION

LTC6915HGN#PBF

PRODUCTION

LTC6915HGN#TRPBF

PRODUCTION

LTC6915IGN#PBF

PRODUCTION

LTC6915IGN#TRPBF

PRODUCTION
