Overview

Features and Benefits

  • No External Components to Set Frequency

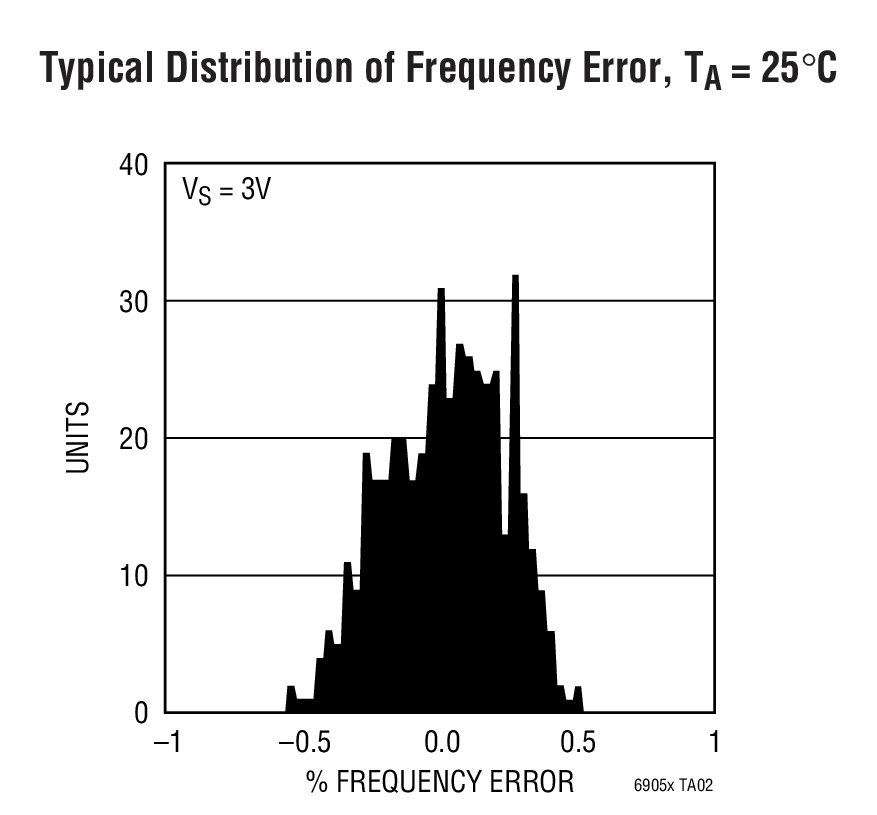

  • Frequency Error ±0.5% Typical
  • Fast Start-Up Time: 100µs Typical
  • ±20ppm/°C Temperature Stability
  • Includes Output Enable
  • Includes Divide by 1, 2 or 4
  • Rise Time: 0.5ns, CL = 5pF
    • Timing Jitter: <0.8% Typical
    • Duty Cycle: 50% ±2.5%
    • IS = 8mA Typical (fOSC = 100MHz, CL = 5pF)
    • CMOS Output Drives 600Ω Load
    • Single Supply 2.7V to 5.5V
    • Low Profile (1mm) ThinSOT™ Package

    Product Details

    The LTC6905-X series of parts are precision, fixed frequency, silicon oscillators designed to minimize board space while maximizing accuracy and ease of use.

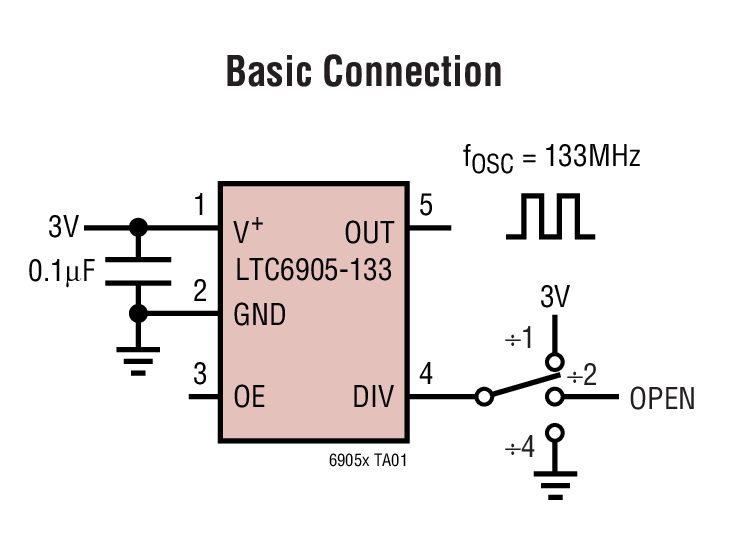

    Programmed at the factory to a fixed frequency, the LTC6905-X series of parts need no external trim components. An internal three-state divider allows for division of the master clock by 1, 2 or 4, providing 3 frequencies (for each device).

    The LTC6905-X series operate with a single 2.7V to 5.5V power supply and provide a rail-to-rail, 50% duty cycle, square wave output. The OE pin will disable the output when brought low and synchronously enable the output when brought high, avoiding pulse slivers.

    The four products of the LTC6905-X family are:

    • LTC6905-133: fOSC = 133MHz, 66.7MHz, 33.3MHz
    • LTC6905-100: fOSC = 100MHz, 50MHz, 25MHz
    • LTC6905-96: fOSC = 96MHz, 48MHz, 24MHz
    • LTC6905-80: fOSC = 80MHz, 40MHz, 20MHz



    The LTC6905-X series of parts are designed with a factory trim option to modify the divider ratios from 1, 2, 4 to 8, 16, 32. A second trim option allows for additional master clock frequencies. For the alternate divider ratios and unlisted frequencies, contact LTC marketing.

    Protected by U.S. Patents, including 6614313, 6342817.

    Applications

    • Data Clocks for High Reliability Applications
    • High Vibration, High Acceleration Environments
    • Replacement for Fixed Crystal and Ceramic Oscillators

    Product Categories

    Comparable Parts Click to see all in Parametric Search

    Product Lifecycle icon-recommended Production

    At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

    Evaluation Kits (4)

    Documentation & Resources

  • View All (6)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (2)
  • Product Selector Card (1)
  • Technical Articles (1)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    LTspice

    Models for the following parts are available in LTspice:

    LTC6905
    LTC6905-100
    LTC6905-133
    LTC6905-80
    LTC6905-96

    Design Tools

    OscCalc Silicon Oscillator Selection & Synthesis Tool

    OscCalc is a quick and easy tool to help you find the right silicon oscillator for your application.

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models

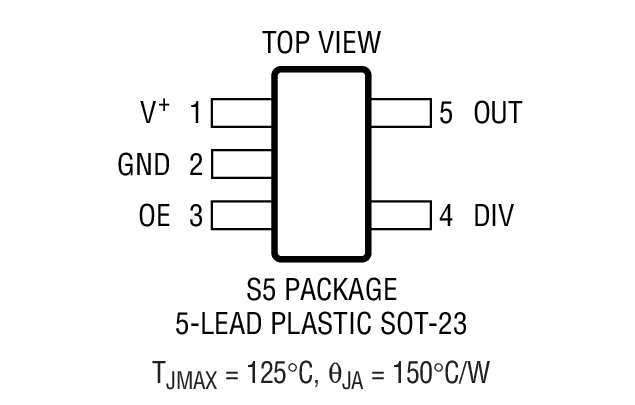

    LTC6905CS5-100#TRMPBF Material Declaration Reliability Data 5-Lead TSOT-23
    LTC6905CS5-100#TRPBF Material Declaration Reliability Data 5-Lead TSOT-23
    LTC6905CS5-133#TRMPBF Material Declaration Reliability Data 5-Lead TSOT-23
    LTC6905CS5-133#TRPBF Material Declaration Reliability Data 5-Lead TSOT-23
    LTC6905CS5-80#TRMPBF Material Declaration Reliability Data 5-Lead TSOT-23
    LTC6905CS5-80#TRPBF Material Declaration Reliability Data 5-Lead TSOT-23
    LTC6905CS5-96#TRMPBF Material Declaration Reliability Data 5-Lead TSOT-23
    LTC6905CS5-96#TRPBF Material Declaration Reliability Data 5-Lead TSOT-23
    LTC6905HS5-100#TRMPBF Material Declaration Reliability Data 5-Lead TSOT-23
    LTC6905HS5-100#TRPBF Material Declaration Reliability Data 5-Lead TSOT-23
    LTC6905HS5-133#TRMPBF Material Declaration Reliability Data 5-Lead TSOT-23
    LTC6905HS5-133#TRPBF Material Declaration Reliability Data 5-Lead TSOT-23
    LTC6905HS5-80#TRMPBF Material Declaration Reliability Data 5-Lead TSOT-23
    LTC6905HS5-80#TRPBF Material Declaration Reliability Data 5-Lead TSOT-23
    LTC6905HS5-96#TRMPBF Material Declaration Reliability Data 5-Lead TSOT-23
    LTC6905HS5-96#TRPBF Material Declaration Reliability Data 5-Lead TSOT-23
    LTC6905IS5-100#TRMPBF Material Declaration Reliability Data 5-Lead TSOT-23
    LTC6905IS5-100#TRPBF Material Declaration Reliability Data 5-Lead TSOT-23
    LTC6905IS5-133#TRMPBF Material Declaration Reliability Data 5-Lead TSOT-23
    LTC6905IS5-133#TRPBF Material Declaration Reliability Data 5-Lead TSOT-23
    LTC6905IS5-80#TRMPBF Material Declaration Reliability Data 5-Lead TSOT-23
    LTC6905IS5-80#TRPBF Material Declaration Reliability Data 5-Lead TSOT-23
    LTC6905IS5-96#TRMPBF Material Declaration Reliability Data 5-Lead TSOT-23
    LTC6905IS5-96#TRPBF Material Declaration Reliability Data 5-Lead TSOT-23
    Wafer Fabrication Data R494 Reliability Data
