LTC6813-1

18-Cell Battery Stack Monitor with Daisy Chain Interface

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 4
1ku List Price
price unavailable
Features
  • AEC-Q100 Qualified for Automotive Applications
  • Measures Up to 18 Battery Cells in Series
  • 2.2mV Maximum Total Measurement Error
  • Stackable Architecture for High Voltage Systems
  • Built-In isoSPI Interface
    • 1Mb Isolated Serial Communications
    • Uses a Single Twisted Pair, Up to 100 Meters
    • Low EMI Susceptibility and Emissions
    • Bidirectional for Broken Wire Protection
  • 290µs to Measure All Cells in a System
  • Synchronized Voltage and Current Measurement
  • 16-Bit Delta-Sigma ADC with Programmable 3rd Order Noise Filter
  • Engineered for ISO 26262-Compliant Systems
  • Passive Cell Balancing Up to 200mA (Max) with Programmable Pulse-Width Modulation
  • 9 General Purpose Digital I/O or Analog Inputs
    • Temperature or Other Sensor Inputs
    • Configurable as an I2C or SPI Master
  • 6µA Sleep Mode Supply Current
  • 64-Lead eLQFP Package
  • AEC-Q100 Qualified for Automotive Applications
Additional Details
show more Icon

The LTC6813-1 is a multicell battery stack monitor that measures up to 18 series connected battery cells with a total measurement error of less than 2.2mV. The cell measurement range of 0V to 5V makes the LTC6813-1 suitable for most battery chemistries. All 18 cells can be measured in 290µs, and lower data acquisition rates can be selected for high noise reduction.

Multiple LTC6813-1 devices can be connected in series, permitting simultaneous cell monitoring of long, high voltage battery strings. Each LTC6813-1 has an isoSPI interface for high speed, RF immune, long distance communications. Multiple devices are connected in a daisy chain with one host processor connection for all devices. This daisy chain can be operated bidirectionally, ensuring communication integrity, even in the event of a fault along the communication path.

The LTC6813-1 can be powered directly from the battery stack or from an isolated supply. The LTC6813-1 includes passive balancing for each cell, with individual PWM duty cycle control for each cell. Other features include an onboard 5V regulator, nine general purpose I/O lines and a sleep mode, where current consumption is reduced to 6µA.

Applications

  • Electric and Hybrid Electric Vehicles
  • Backup Battery Systems
  • Grid Energy Storage
  • High Power Portable Equipment
Part Models 4
1ku List Price
price unavailable

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC6813HLWE-1#3ZZPBF
  • HTML
  • HTML
LTC6813HLWE-1#3ZZTRPBF
  • HTML
  • HTML
LTC6813ILWE-1#3ZZPBF
  • HTML
  • HTML
LTC6813ILWE-1#3ZZTRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 1, 2022

- 22_0159

LTC6812-1 and LTC6813-1 Assembly Site Second Source (UTAC)

LTC6813HLWE-1#3ZZPBF

PRODUCTION

LTC6813HLWE-1#3ZZTRPBF

PRODUCTION

LTC6813ILWE-1#3ZZPBF

PRODUCTION

LTC6813ILWE-1#3ZZTRPBF

PRODUCTION

Jul 19, 2019

- 19_0140

LTC6813-1 Die Revision and Datasheet Change.

LTC6813HLWE-1#3ZZPBF

PRODUCTION

LTC6813HLWE-1#3ZZTRPBF

PRODUCTION

LTC6813ILWE-1#3ZZPBF

PRODUCTION

LTC6813ILWE-1#3ZZTRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 1, 2022

- 22_0159

arrow down

LTC6812-1 and LTC6813-1 Assembly Site Second Source (UTAC)

LTC6813HLWE-1#3ZZPBF

PRODUCTION

LTC6813HLWE-1#3ZZTRPBF

PRODUCTION

LTC6813ILWE-1#3ZZPBF

PRODUCTION

LTC6813ILWE-1#3ZZTRPBF

PRODUCTION

Jul 19, 2019

- 19_0140

arrow down

LTC6813-1 Die Revision and Datasheet Change.

LTC6813HLWE-1#3ZZPBF

PRODUCTION

LTC6813HLWE-1#3ZZTRPBF

PRODUCTION

LTC6813ILWE-1#3ZZPBF

PRODUCTION

LTC6813ILWE-1#3ZZTRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 4

reference details image

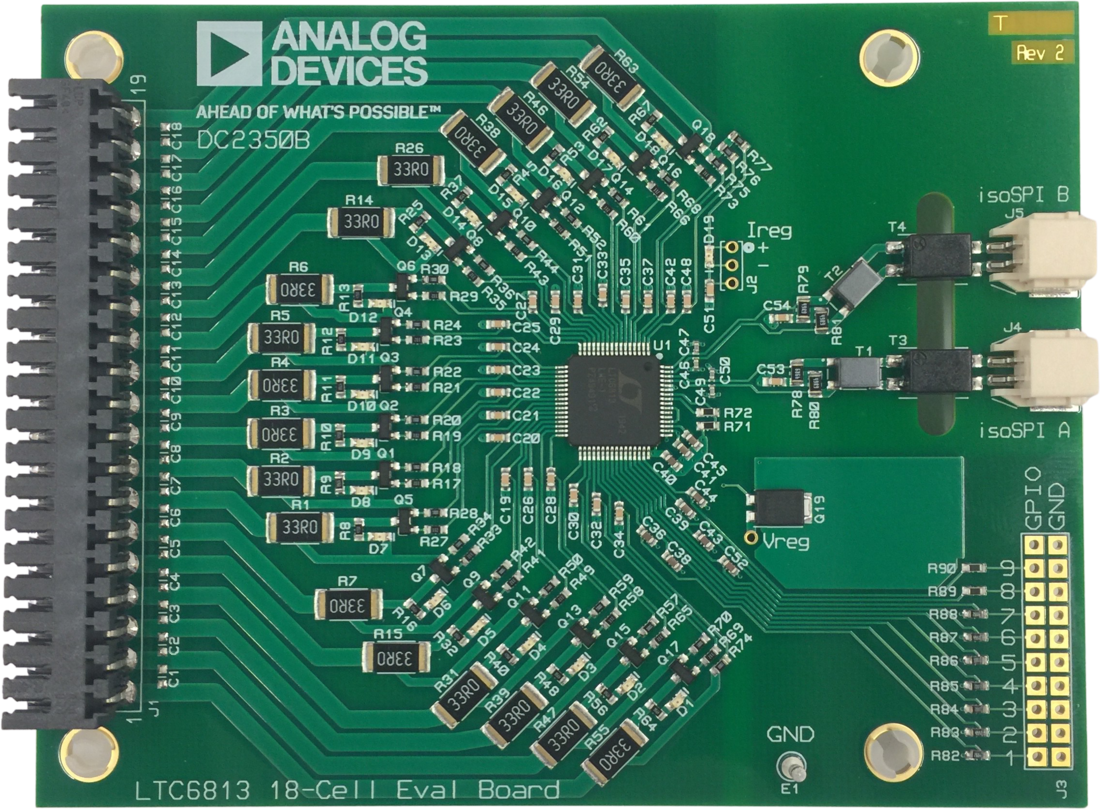

DC2350B

LTC6813-1 Demo Board | 18-Channel Battery-Stack Monitor with Daisy-Chain Interface

zoom

DC2350B

LTC6813-1 Demo Board | 18-Channel Battery-Stack Monitor with Daisy-Chain Interface

LTC6813-1 Demo Board | 18-Channel Battery-Stack Monitor with Daisy-Chain Interface

Product Detail

Demonstration circuit 2350B features the LTC6813-1, 18-channel battery-stack monitor. Multiple boards can be linked through a 2-wire isolated serial interface (isoSPI) to monitor a long series of cells in a stack. The DC2350B demo board also features reversible isoSPI enabling a redundant communication path. The PCB, components, and DuraClik connectors are optimized for low EMI susceptibility and emissions.

The DC2350B can communicate to a PC by connecting a DC2792B dual master isoSPI together with DC2026C Linduino® One. The DC2026 must be loaded with the appropriate program (called a sketch) to control the battery-stack monitor IC and receive data through a USB serial port. The DC2026 provides a standard SPI interface which can be translated to isoSPI and then connected to a DC2350B isoSPI port (J4 or J5 connector). The DC2792B companion board provides two SPI-isoSPI channels for reversible operation.

reference details image

DC2792B

LTC6820 Demo Board | Dual Master isoSPI Adapter

zoom

DC2792B

LTC6820 Demo Board | Dual Master isoSPI Adapter

LTC6820 Demo Board | Dual Master isoSPI Adapter

Product Detail

The demonstration circuit DC2792B is an SPI serial to dual-port isoSPI adapter that uses a pair of multiplexed LTC6820 isoSPI transceivers and miniaturized isoSPI connectors (2 contact DuraClik). The board can functionally replace a DC1941 in cases where isoSPI battery-management (BMS) devices are being evaluated, but provides a second isoSPI master to exercise the reversible isoSPI feature where available. The SPI interface can be provided via the legacy 14-contact ribbon cable from either a DC590 or DC2026 USB adapter, or directly installed on the DC2026 as a Linduino shield. The two isoSPI ports are MAIN and AUXiliary, with activity of each indicated by blue LEDs. For use in place of DC1941 or non-reversible isoSPI networks, the MAIN port must be used. Power for the DC2792B comes indirectly from the USB port of the host computer, via the USB to serial adapter being used.

reference details image

DC2792A

OBSOLETE: LTC6820 Demo Board | Dual Master isoSPI Adapter

zoom

DC2792A

OBSOLETE: LTC6820 Demo Board | Dual Master isoSPI Adapter

OBSOLETE: LTC6820 Demo Board | Dual Master isoSPI Adapter

Product Detail

This evaluation board is obsolete and no longer recommended. The replacement board is the DC2792B.

Demonstration circuit DC2792A is an SPI serial to dual-port isoSPI adapter that uses a pair of multiplexed LTC6820 isoSPI transceivers. The board can replace a DC1941 in cases where isoSPI battery-management (BMS) devices are being evaluated, but provides a second isoSPI master to exercise the reversible isoSPI feature where available. The SPI interface can be provided via the legacy 14-contact ribbon cable from either a DC590 or DC2026 USB adapter, or directly installed on the DC2026 as a Linduino ‘shield’. The two isoSPI ports are MAIN and AUXiliary, with activity of each indicated by blue LEDs. For use in place of DC1941, the MAIN port must be used. Power for the DC2792A comes indirectly from the USB port of the host computer, via the USB to serial adapter being used.

DC2350A-B

OBSOLETE: LTC6813-1 Demo Board | 18-Channel Battery Stack Monitor with Daisy-chain Interface

zoom

DC2350A-B

OBSOLETE: LTC6813-1 Demo Board | 18-Channel Battery Stack Monitor with Daisy-chain Interface

OBSOLETE: LTC6813-1 Demo Board | 18-Channel Battery Stack Monitor with Daisy-chain Interface

Product Detail

This evaluation board is obsolete and no longer recommended. The replacement board is the DC2350B.

DC2350A-B is a multicell battery stack monitor demonstration circuit featuring the LTC6813-1, an 18-cell monitor. Multiple boards can be linked through a 2-wire isolated serial interface (isoSPI) to monitor any number of cells in a stack. The demo circuit also features reversible isoSPI enabling a fully redundant communication path.

Tools & Simulations

Tools & Simulations 1

Linduino

Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.

Linduino code repository on GitHub and instructions on how to use the code.
