LTC6802-2

Name: LTC6802-2
Brand: Analog Devices
Price: 25.08 USD
Availability: InStock

NOT RECOMMENDED FOR NEW DESIGNS

12 Channel Multicell Battery Monitor with Addressable Interface, Generaion 1

Data Sheet (Rev. B) Product Selection Table

Part Models: 4
1ku List Price: Starting From $24.61

Viewing:

Overview

Qualified for Automotive Applications
Measures Up to 12 Li-Ion Cells in Series (60V Max)
Stackable Architecture Enables Monitoring High Voltage Battery Stacks
Individually Addressable with 4-Bit Address
0.25% Maximum Total Measurement Error
13ms to Measure All Cells in a System
Cell Balancing:
- On-Chip Passive Cell Balancing Switches
- Provision for Off-Chip Passive Balancing

Two Thermistor Inputs Plus Onboard Temperature Sensor
1MHz Serial Interface with Packet Error Checking
High EMI Immunity
Delta-Sigma Converter with Built-In Noise Filter
Open-Wire Connection Fault Detection
Low Power Modes
44-Lead SSOP Package

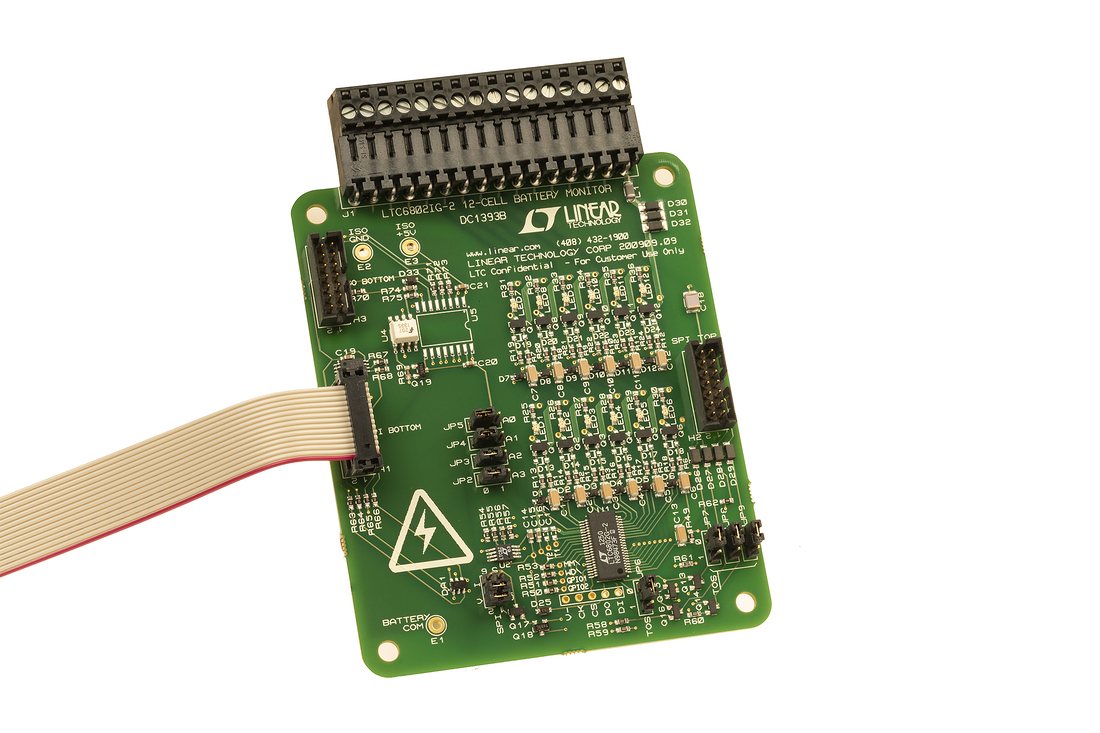

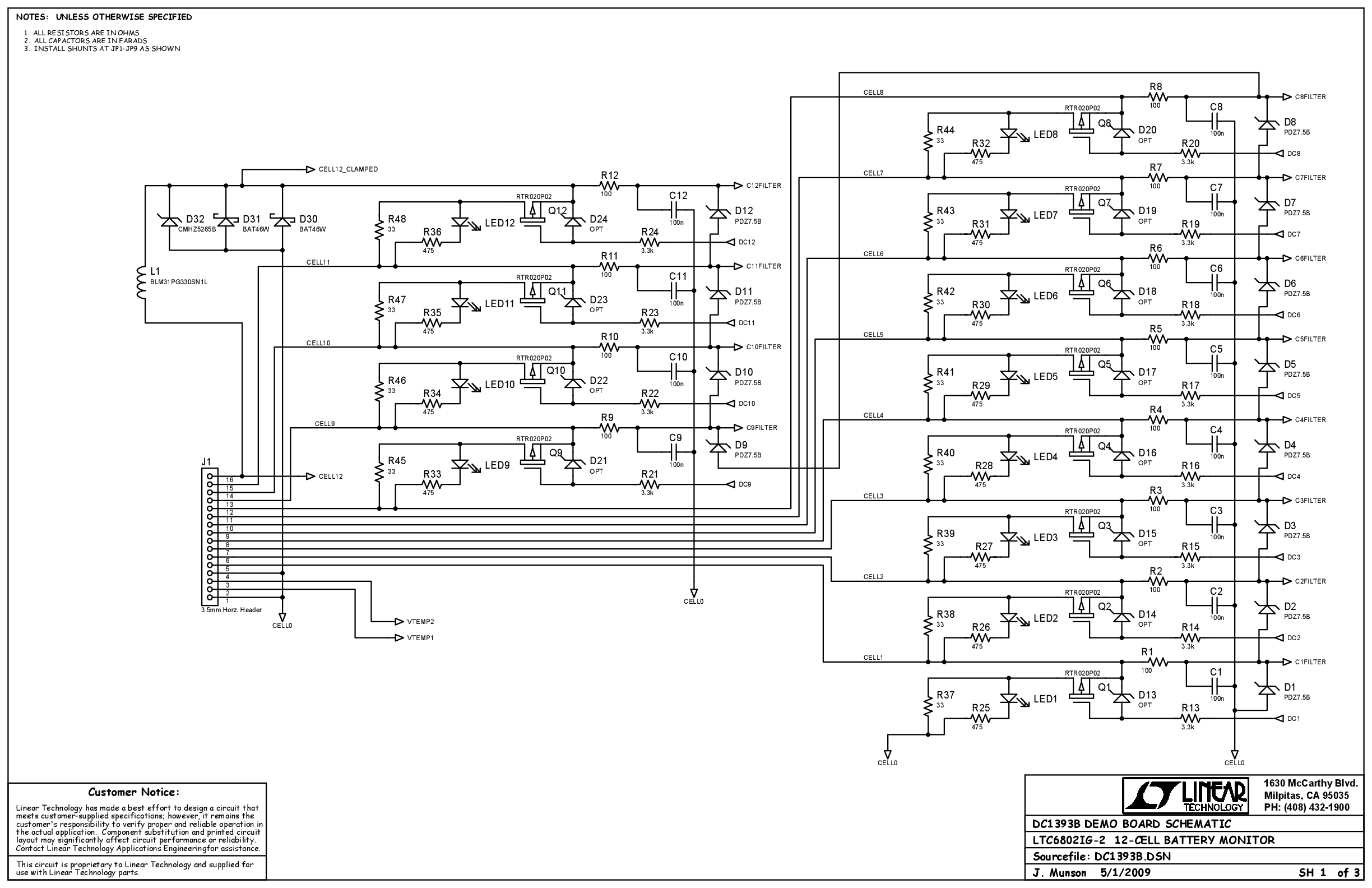

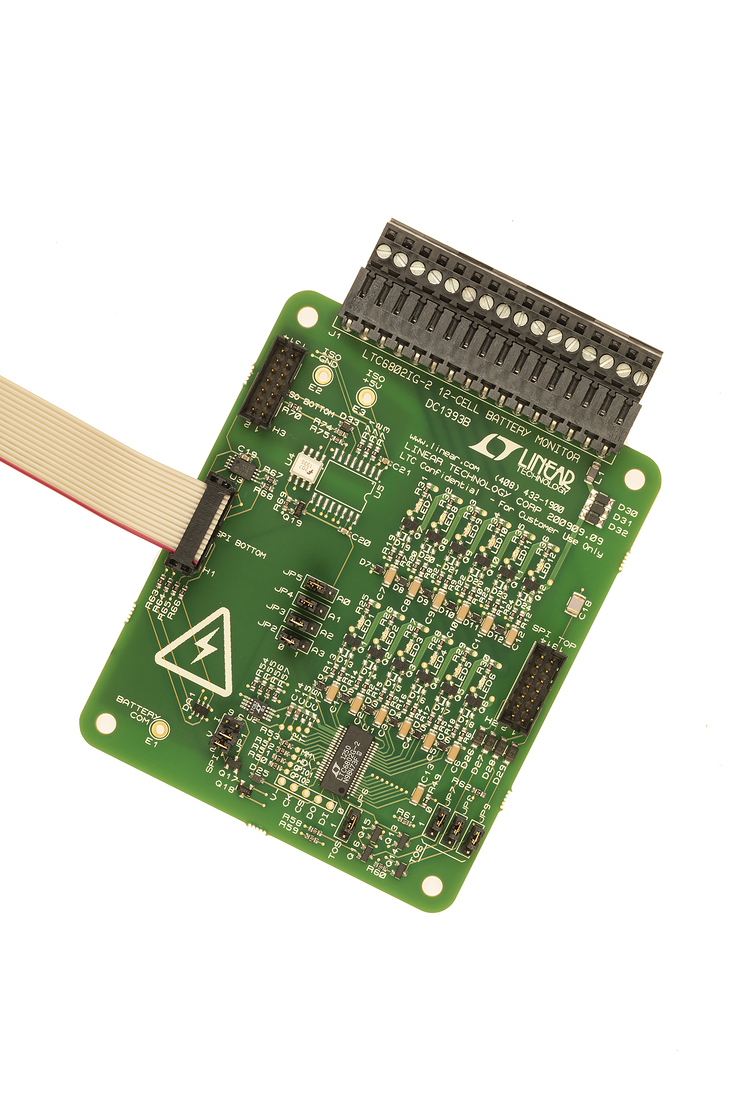

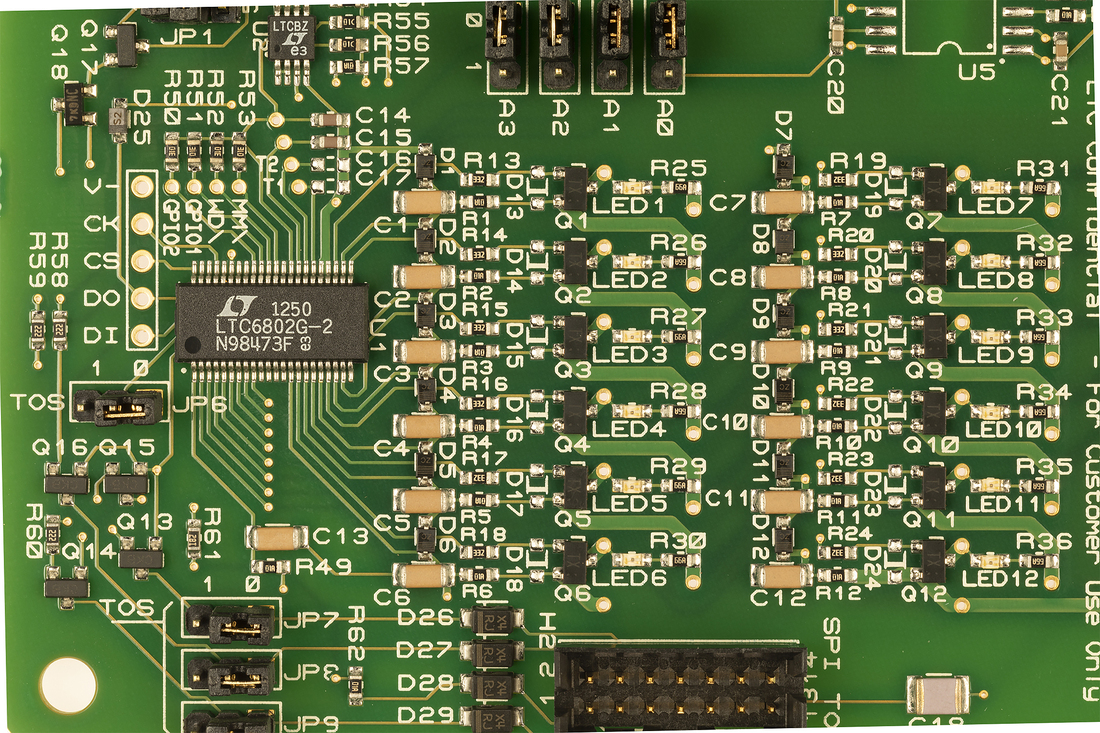

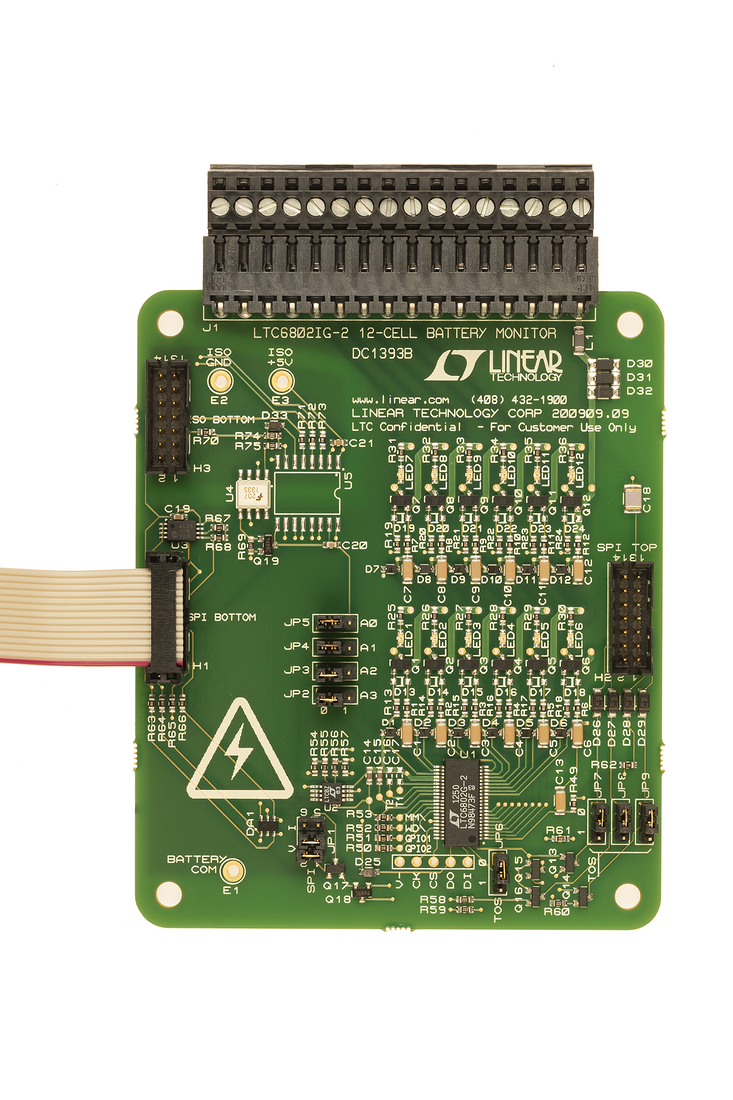

The LTC6802-2 is a complete battery monitoring IC that includes a 12-bit ADC, a precision voltage reference, a high voltage input multiplexer and a serial interface. Each LTC6802-2 can measure 12 series connected battery cells, with a total input voltage up to 60V. The voltage on all 12 input channels can be measured within 13ms.

Many LTC6802-2 devices can be stacked to measure the voltage of each cell in a long battery string. Each LTC6802-2 has an individually addressable serial interface, allowing up to 16 LTC6802-2 devices to interface to one control processor and operate simultaneously.

To minimize power, the LTC6802-2 offers a measure mode to monitor each cell for overvoltage and undervoltage conditions. A standby mode is also provided to reduce supply current to 50µA.

Each cell input has an associated MOSFET switch that can discharge any overcharged cell.

The related LTC6802-1 offers a serial interface that allows the serial ports of multiple LTC6802-1 devices to be daisy chained without opto-couplers or isolators.


	SPI Interface	Features
LTC6802-1	Daisy Chain	Multiple devices can be connected in serial fashion without digital isolation.
LTC6802-2	Addressable	Parallel addressed SPI interface - each device in a chain communicates with a control processor in parallel via external digital isolators.

Applications

Electric and Hybrid Electric Vehicles
High Power Portable Equipment
Backup Battery Systems
High Voltage Data Acquisition Systems

Part Models: 4
1ku List Price: Starting From $24.61

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC6802IG-2#3ZZPBF	44-Lead SSOP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTC6802IG-2#3ZZTRPBF	44-Lead SSOP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTC6802IG-2#PBF	44-Lead SSOP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTC6802IG-2#TRPBF	44-Lead SSOP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 11, 2022 - 22_0242 Epoxy Change from Henkel 8290 to 8290A for SSOP PKG
		PCN22_0242_Form Material_Report
LTC6802IG-2#3ZZPBF	PRODUCTION
LTC6802IG-2#3ZZTRPBF	PRODUCTION
LTC6802IG-2#PBF	PRODUCTION
LTC6802IG-2#TRPBF	PRODUCTION
Jul 31, 2020 - 20_0245 Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)
		PCN20_0245_Form Material_Report Delta Qualification Matrix Other Qualification Results Summary
LTC6802IG-2#3ZZPBF	PRODUCTION
LTC6802IG-2#3ZZTRPBF	PRODUCTION
LTC6802IG-2#PBF	PRODUCTION
LTC6802IG-2#TRPBF	PRODUCTION
Nov 18, 2019 - 19_0266 Laser Top Mark for SSOP36/44/48 Packages assembled in ADPG and UTAC
		PCN19_0266_Form Material_Report Detailed Parts List
LTC6802IG-2#3ZZPBF	PRODUCTION
LTC6802IG-2#3ZZTRPBF	PRODUCTION
LTC6802IG-2#PBF	PRODUCTION
LTC6802IG-2#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Battery Monitors & Fuel Gauges 1
LTC6803-2	NOT RECOMMENDED FOR NEW DESIGNS	12 Channel Multicell Battery Monitor, Upgrade to LTC6802-2
Temperature Sensors 1
LTC2983	RECOMMENDED FOR NEW DESIGNS	Multi-Sensor High Accuracy Digital Temperature Measurement System
