LTC6802-2

12 Channel Multicell Battery Monitor with Addressable Interface, Generaion 1

Show More showmore-icon

warning : NOT RECOMMENDED FOR NEW DESIGNS tooltip
warning : NOT RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 4
1ku List Price Starting From $19.45
Features
  • Qualified for Automotive Applications
  • Measures Up to 12 Li-Ion Cells in Series (60V Max)
  • Stackable Architecture Enables Monitoring High Voltage Battery Stacks
  • Individually Addressable with 4-Bit Address

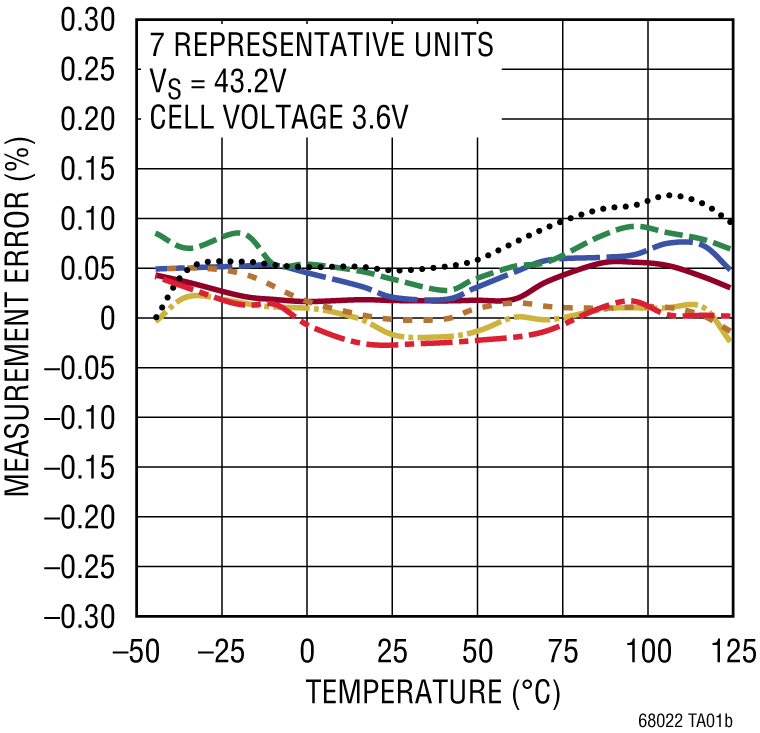

  • 0.25% Maximum Total Measurement Error
  • 13ms to Measure All Cells in a System
  • Cell Balancing:
    • On-Chip Passive Cell Balancing Switches
    • Provision for Off-Chip Passive Balancing
  • Two Thermistor Inputs Plus Onboard Temperature Sensor
  • 1MHz Serial Interface with Packet Error Checking
  • High EMI Immunity
  • Delta-Sigma Converter with Built-In Noise Filter
  • Open-Wire Connection Fault Detection
  • Low Power Modes

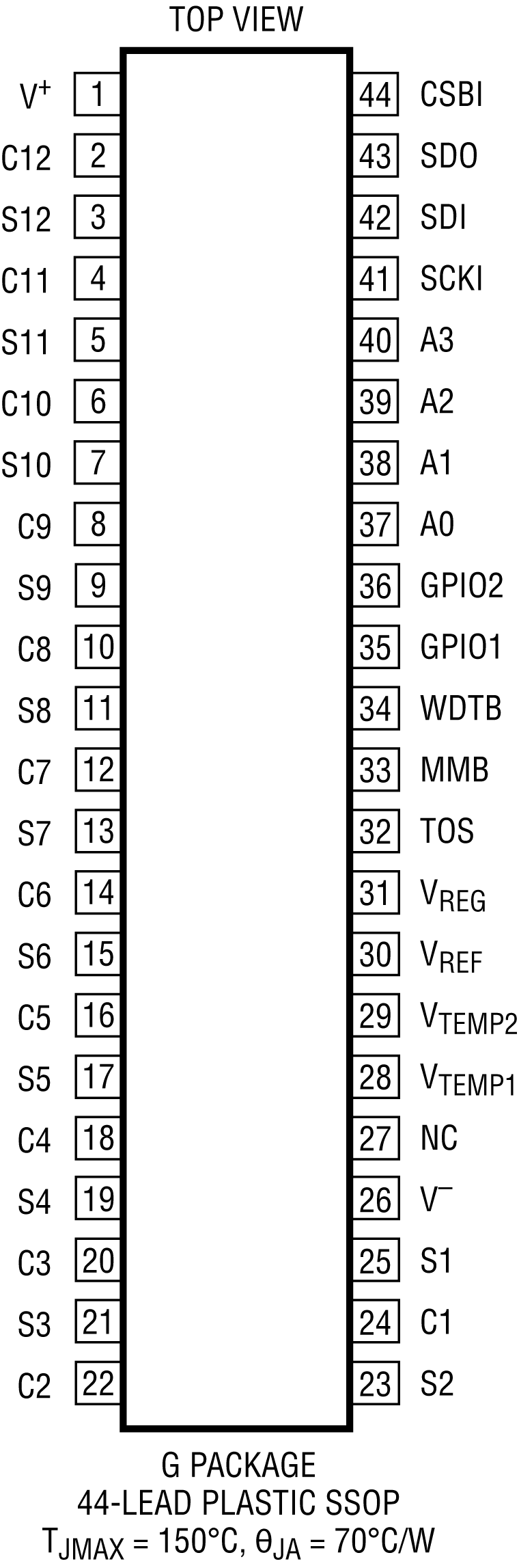

  • 44-Lead SSOP Package
Additional Details
show more Icon

The LTC6802-2 is a complete battery monitoring IC that includes a 12-bit ADC, a precision voltage reference, a high voltage input multiplexer and a serial interface. Each LTC6802-2 can measure 12 series connected battery cells, with a total input voltage up to 60V. The voltage on all 12 input channels can be measured within 13ms.

Many LTC6802-2 devices can be stacked to measure the voltage of each cell in a long battery string. Each LTC6802-2 has an individually addressable serial interface, allowing up to 16 LTC6802-2 devices to interface to one control processor and operate simultaneously.

To minimize power, the LTC6802-2 offers a measure mode to monitor each cell for overvoltage and undervoltage conditions. A standby mode is also provided to reduce supply current to 50µA.

Each cell input has an associated MOSFET switch that can discharge any overcharged cell.

The related LTC6802-1 offers a serial interface that allows the serial ports of multiple LTC6802-1 devices to be daisy chained without opto-couplers or isolators.

SPI Interface Features
LTC6802-1 Daisy Chain Multiple devices can be connected in serial fashion without digital isolation.
LTC6802-2 Addressable Parallel addressed SPI interface - each device in a chain communicates with a control processor in parallel via external digital isolators.

Applications

  • Electric and Hybrid Electric Vehicles
  • High Power Portable Equipment
  • Backup Battery Systems
  • High Voltage Data Acquisition Systems
Part Models 4
1ku List Price Starting From $19.45

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC6802IG-2#3ZZPBF
  • HTML
  • HTML
LTC6802IG-2#3ZZTRPBF
  • HTML
  • HTML
LTC6802IG-2#PBF
  • HTML
  • HTML
LTC6802IG-2#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0242

Epoxy Change from Henkel 8290 to 8290A for SSOP PKG

LTC6802IG-2#3ZZPBF

PRODUCTION

LTC6802IG-2#3ZZTRPBF

PRODUCTION

LTC6802IG-2#PBF

PRODUCTION

LTC6802IG-2#TRPBF

PRODUCTION

Jul 31, 2020

- 20_0245

Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

LTC6802IG-2#3ZZPBF

PRODUCTION

LTC6802IG-2#3ZZTRPBF

PRODUCTION

LTC6802IG-2#PBF

PRODUCTION

LTC6802IG-2#TRPBF

PRODUCTION

Nov 18, 2019

- 19_0266

Laser Top Mark for SSOP36/44/48 Packages assembled in ADPG and UTAC

LTC6802IG-2#3ZZPBF

PRODUCTION

LTC6802IG-2#3ZZTRPBF

PRODUCTION

LTC6802IG-2#PBF

PRODUCTION

LTC6802IG-2#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0242

arrow down

Epoxy Change from Henkel 8290 to 8290A for SSOP PKG

LTC6802IG-2#3ZZPBF

PRODUCTION

LTC6802IG-2#3ZZTRPBF

PRODUCTION

LTC6802IG-2#PBF

PRODUCTION

LTC6802IG-2#TRPBF

PRODUCTION

Jul 31, 2020

- 20_0245

arrow down

Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

LTC6802IG-2#3ZZPBF

PRODUCTION

LTC6802IG-2#3ZZTRPBF

PRODUCTION

LTC6802IG-2#PBF

PRODUCTION

LTC6802IG-2#TRPBF

PRODUCTION

Nov 18, 2019

- 19_0266

arrow down

Laser Top Mark for SSOP36/44/48 Packages assembled in ADPG and UTAC

LTC6802IG-2#3ZZPBF

PRODUCTION

LTC6802IG-2#3ZZTRPBF

PRODUCTION

LTC6802IG-2#PBF

PRODUCTION

LTC6802IG-2#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

DC1393B

LTC6802-2 (requires DC590B) New Designs Should Use DC1652 or DC1654 | Demo Board
